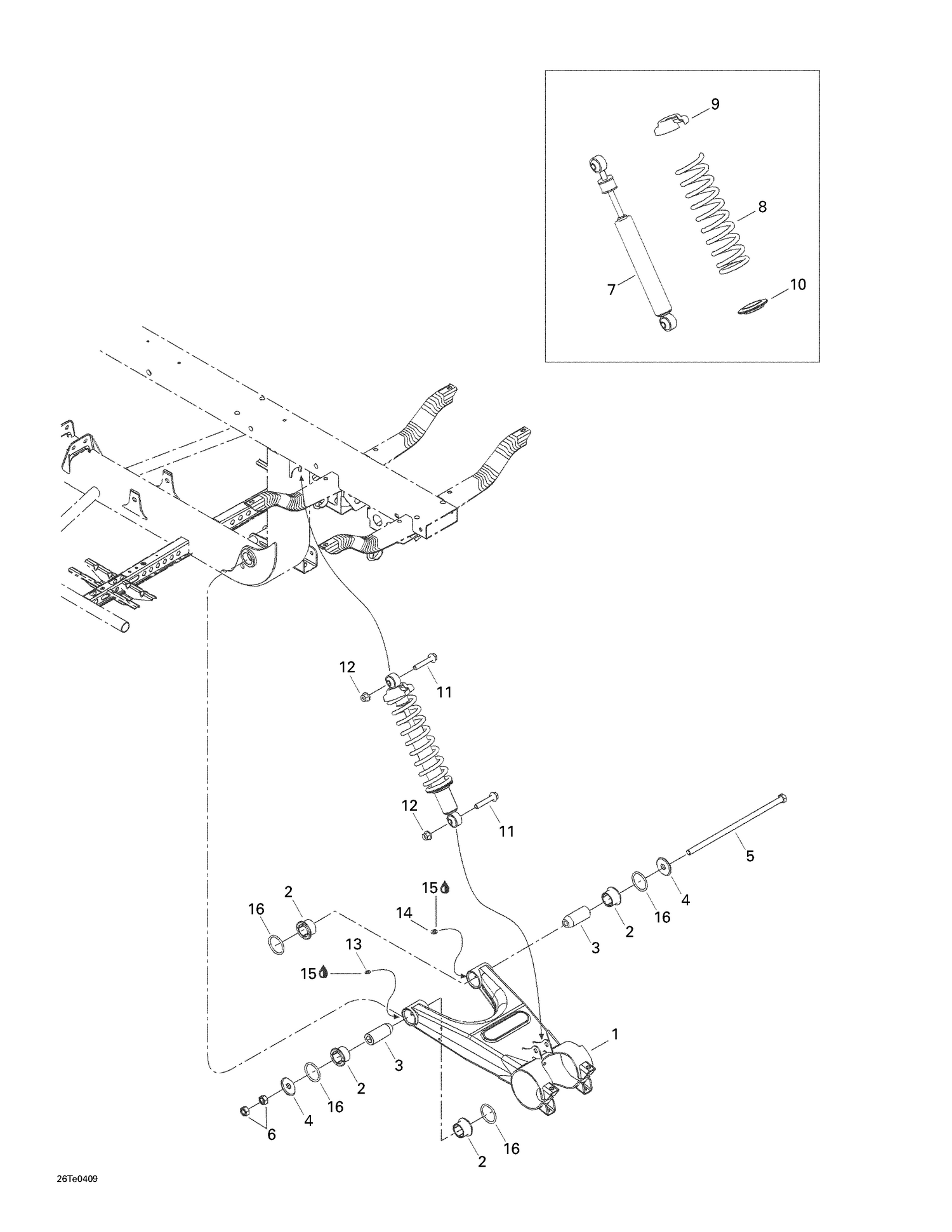

08- Rear Suspension
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 706000145 | Swing Arm |
| 2 | 706000158 | Cushion |
| 3 | 706000138 | Inner Bushing |
| 4 | 706000139 | Thrust Washer |
| 5 | 250000066 | HEX. CAP SCREW M12 X 300 - Call your local BRP dealership |
| 6 | 232021486 | HEX. NUT M12 - Call your local BRP dealership |
| 7 | 706000140 | REAR SHOCK - Call your local BRP dealership |
| 8 | 706000154 | Full Moon Rear Spring |
| 9 | 706200881 | Spring Stopper This part replaces 503140600. |
| 10 | 706000197 | Spring Seat |
| 11 | 207605544 | Hex. Flange Screw M10 X 55 |
| 12 | 233201414 | Hex. Flange Elastic Nut M10 |
| 13 | 408200700 | Grease Fitting |
| 14 | 408200600 | GREASE FITTING - Call your local BRP dealership |
| 15 | 293550010 | Synthetic Grease, 400 G |
