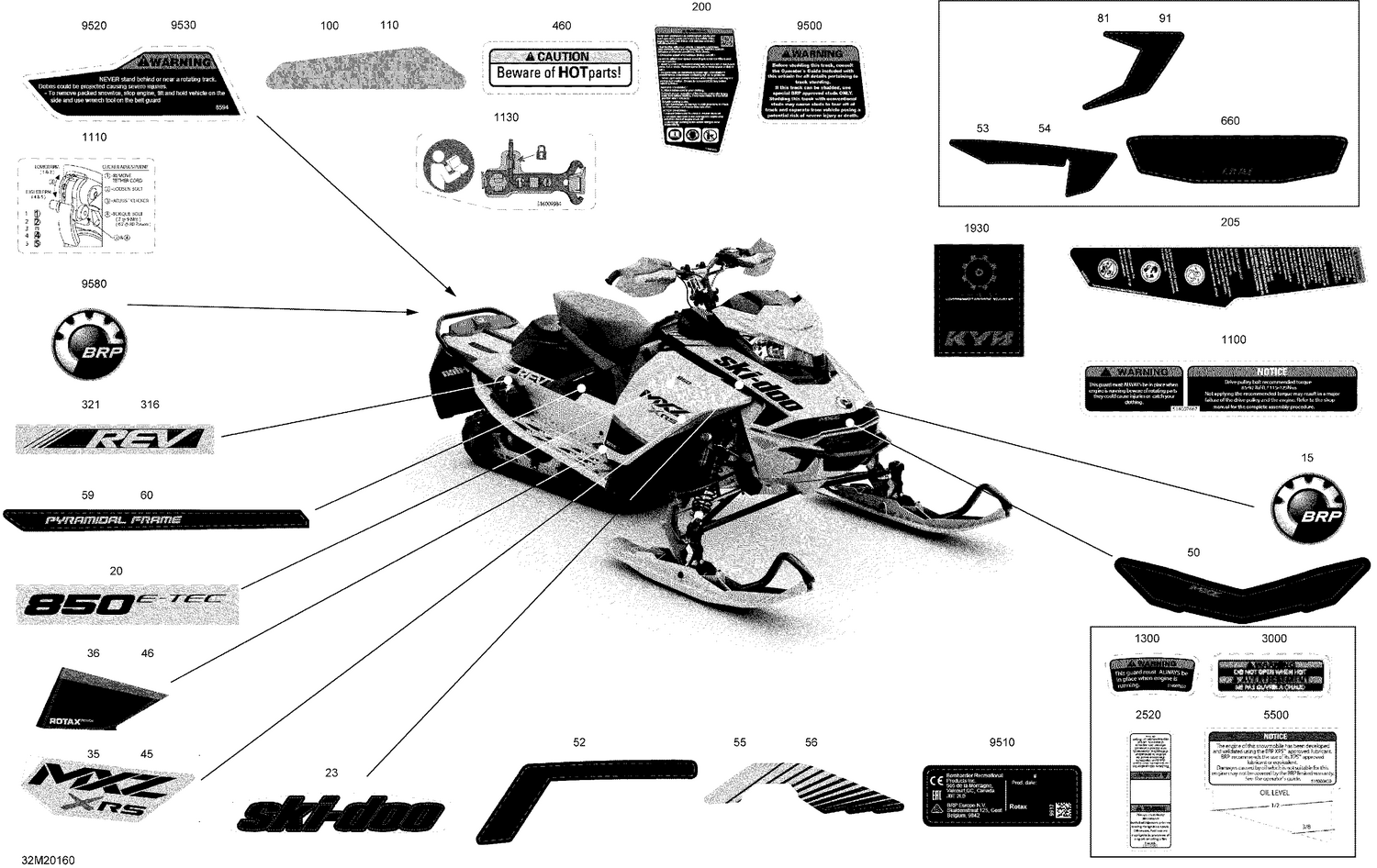

09- Body - Decals - XRS
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 516008739 | BRP Logo 68mm |
| 20 | 516007595 | Engine Decal "850 E-TEC" |
| 23 | 516009400 | Front Hood Decal "Ski-Doo" |
| 35 | 516009279 | RH Upper Panel Decal "MXZ XRS" |
| 36 | 516009653 | RH Lower Panel Decal ROTAX POWER |
| 45 | 516009278 | LH Upper Panel Decal "MXZ XRS" |
| 46 | 516009652 | LH Lower Panel Decal ROTAX POWER |
| 50 | 516009282 | Front Hood Decal "MXZ" |
| 52 | 516009700 | RH Rear Ext Hood Decal |
| 53 | 516009655 | RH Ext Hood Decal |
| 54 | 516009654 | LH Ext Hood Decal |
| 55 | 516009517 | RH Over Console Decal |
| 56 | 516009516 | LH Over Console Decal |
| 59 | 516008293 | RH Decal "Pyramidal Frame" |
| 60 | 516008292 | LH Decal "Pyramidal Frame" |
| 81 | 516009284 | RH Bottom Pan Decal |
| 91 | 516009283 | LH Bottom Pan Decal |
| 100 | 516008948 | Hyper Silver, RH Ski Leg Decal |
| 110 | 516008947 | Hyper Silver, LH Ski Leg Decal |
| 200 | 516009232 | LH Warning Decal Security |
| 205 | 516009520 | RH Warning Decal Security |
| 316 | 516009277 | RH Rear Tunnel Decal "REV" |
| 321 | 516009276 | LH Rear Tunnel Decal "REV" |
| 460 | 516005280 | Caution Decal Hot Parts |
| 660 | 516009856 | Standard Decal "Linq" |
| 1100 | 516007667 | Warning Decal |
| 1110 | 516009265 | Decal Ramp Clicker |
| 1130 | 516009984 | Decal Tool |
| 1300 | 516007652 | Engine Guard Warning Decal |
| 1930 | 516005534 | Shock Adjustment Decal |
| 2520 | 516007661 | Warning Decal, Injectors |
| 3000 | 516005904 | Warning Decal |
| 5500 | 516008439 | Oil Warning Decal |
| 9500 | 516007645 | Rear Track Warning Decal |
| 9510 | 516009917 | Label Europe |
| 9520 | 516008594 | LH Safety Label |
| 9530 | 516006892 | RH English Warning Decal |
