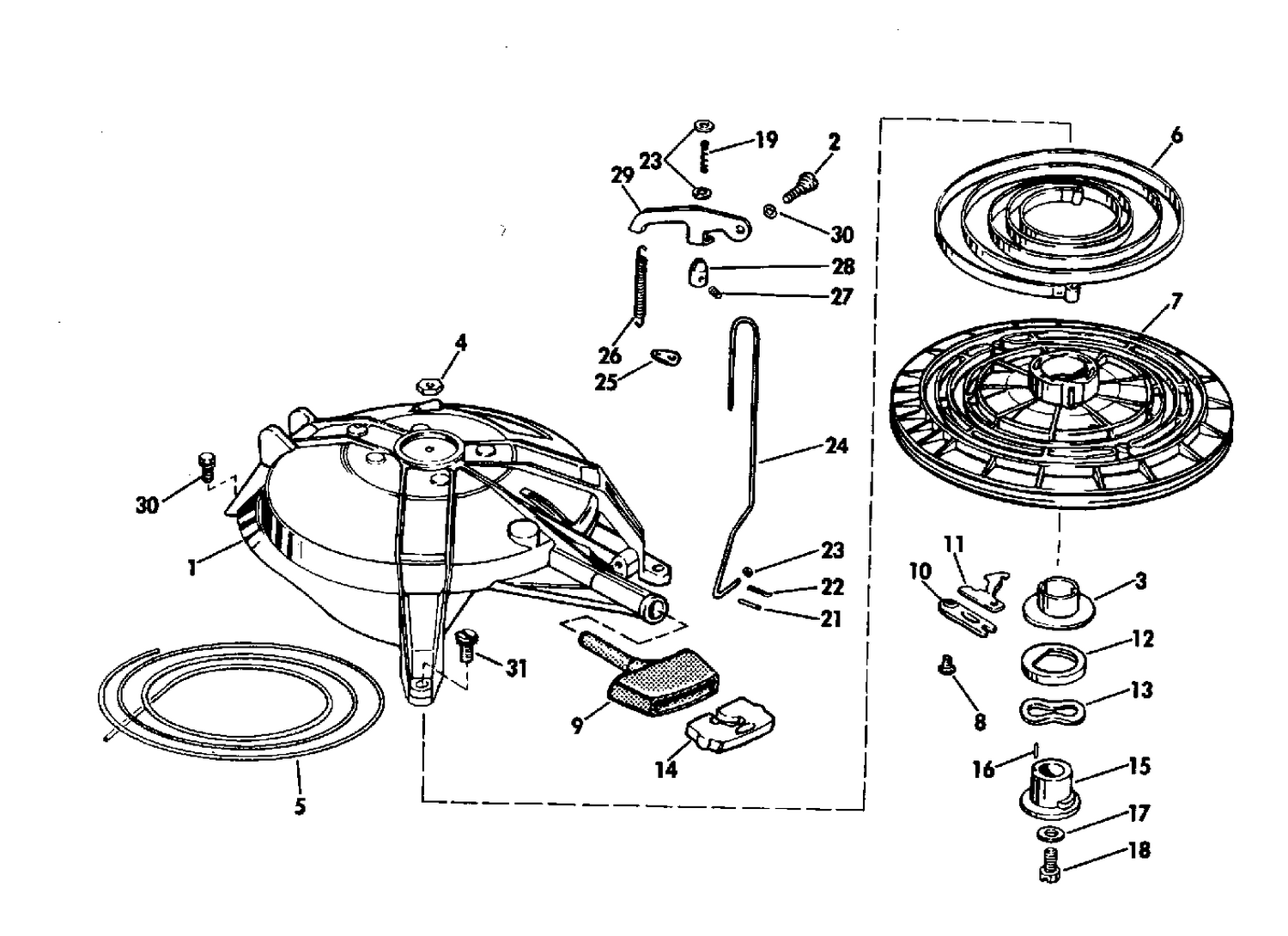

| Ref | Part Number | Description |
|---|
| 1 |
0380874 |
HOUSING STATER |
| 2 |
0303247 |
SCREW |
| 3 |
0309513 |
BUSHING, Spindle |
| 6 |
0375836 |
SPRING Starter |
| 7 |
0379064 |
PULLEY Starter |
| 8 |
0307163 |
SCREW |
| 9 |
0305381 |
HANDLE, Starter |
| 10 |
0202317 |
RETAINER, Starter pawl |
| 11 |
0327398 |
PAWL, Starter This part replaces 0202470. |
| 15 |
0379067 |
SPINDLE & PIN ASSY |
| 18 |
0336135 |
SCREW, Flywheel This part replaces 0306284. |
| 19 |
0303051 |
SPRING, Link to lever |
| 20 |
0302473 |
BOW WASHER |
| 21 |
0307565 |
PIN |
| 23 |
0306544 |
WASHER |
| 24 |
0304808 |
ROD, Cam follower to lever |
| 25 |
0303033 |
ANCHOR, Lever spring |
| 26 |
0315176 |
SPRING, Starter lock This part replaces 0304224. |
| 27 |
0303245 |
ALLEN SCREW |
| 28 |
0303244 |
COLLAR, Starter lock link |
| 29 |
0304807 |
LEVER, Locking |
| 30 |
0308375 |
SCREW, Housing to cylinder |
| 0381452 |
0381452 |
REWIND STARTER ASSY |
