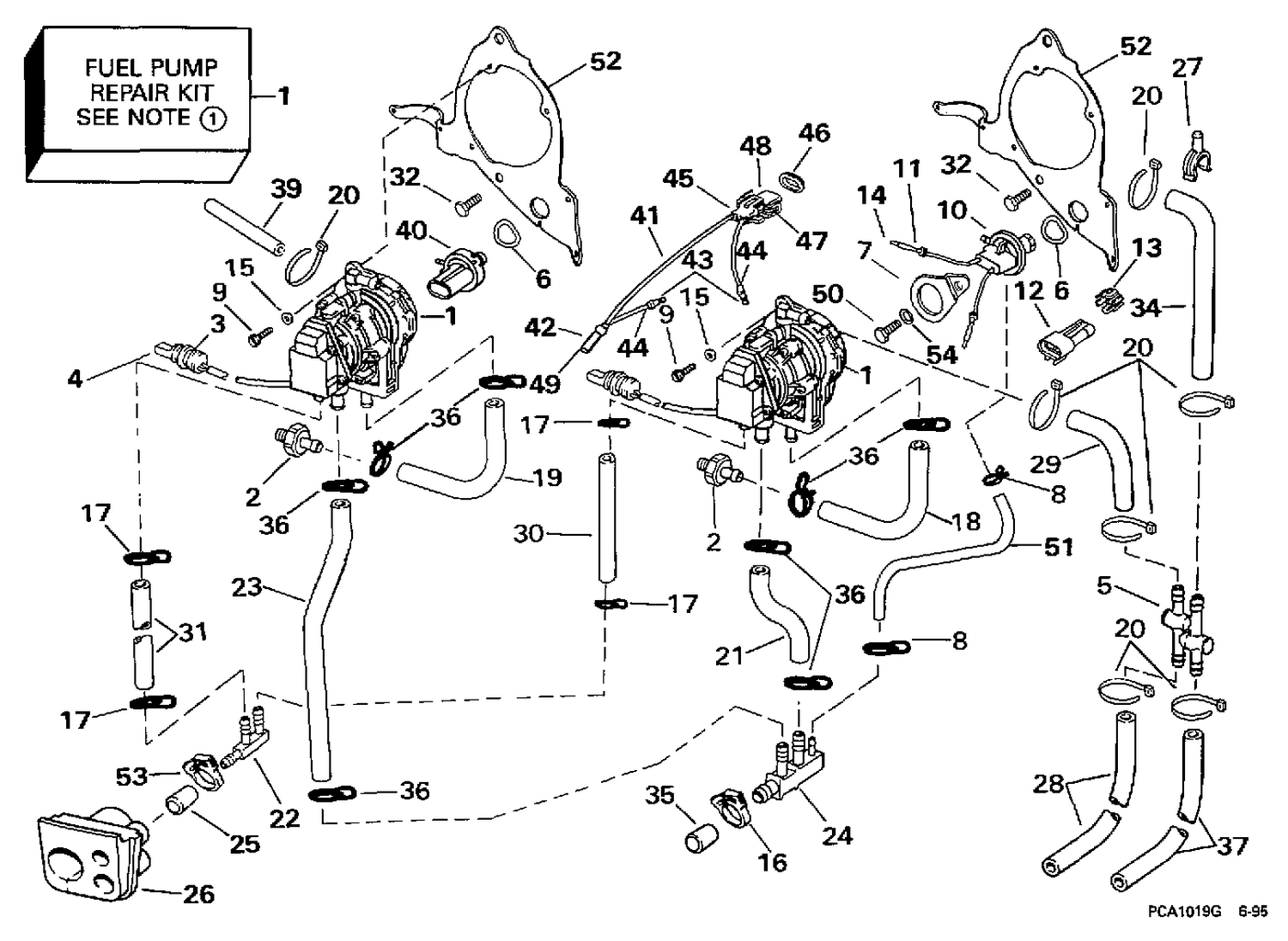

| Ref | Part Number | Description |
|---|
| 1 |
5007420 |
Kit Ay This part replaces 0435953. |
| 5 |
0397502 |
BYPASS VALVE |
| 6 |
0909678 |
JOINT TORIQUE, interrupteur d'aspiration vers support |
| 7 |
0338950 |
RETAINER, Vacuum switch |
| 8 |
0339276 |
SERRE-FILS |
| 10 |
0586544 |
VACUUM SWITCH This part replaces 0586034. |
| 16 |
0322653 |
CLAMP |
| 17 |
0339277 |
CLAMP, Exh back pressure hose |
| 18 |
0332851 |
FLEXIBLE D’IMPULSIONS |
| 19 |
0339757 |
HOSE, Pulse, upper pump |
| 20 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 21 |
0333399 |
HOSE, Fitting to lower pump |
| 22 |
0331062 |
FITTING, Oil hose |
| 23 |
0333400 |
HOSE, Fitting to upper pump |
| 24 |
0331055 |
FITTING, Fuel hose |
| 26 |
0332244 |
GROMMET |
| 27 |
0329661 |
SUPPORT/BOUCHON |
| 28 |
0334769 |
HOSE, Tee to lower manifold |
| 29 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 30 |
HOSE, |
Fitting to lower pump, 3 in. |
| 31 |
HOSE, |
Fitting to upper pump, 9 in. |
| 32 |
0122147 |
VIS, connecteur |
| 34 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 35 |
0331649 |
CAP, Connector - fuel |
| 36 |
0339278 |
COLLIER DE SERRAGE |
| 39 |
0339046 |
HOSE, Vacuum switch to manifold |
| 40 |
0436689 |
VACUUM SWITCH |
| 41 |
0585200 |
CABLE ASSY., Vacuum switch to motor cable |
| 50 |
0331036 |
VIS, attache de palier |
| 51 |
0336236 |
HOSE, Fuel pump to carburetor |
| 52 |
0339743 |
BRACKET, Fuel pump to manifold |
| 53 |
0322654 |
PINCE RAPIDE, flexible d'huile |
