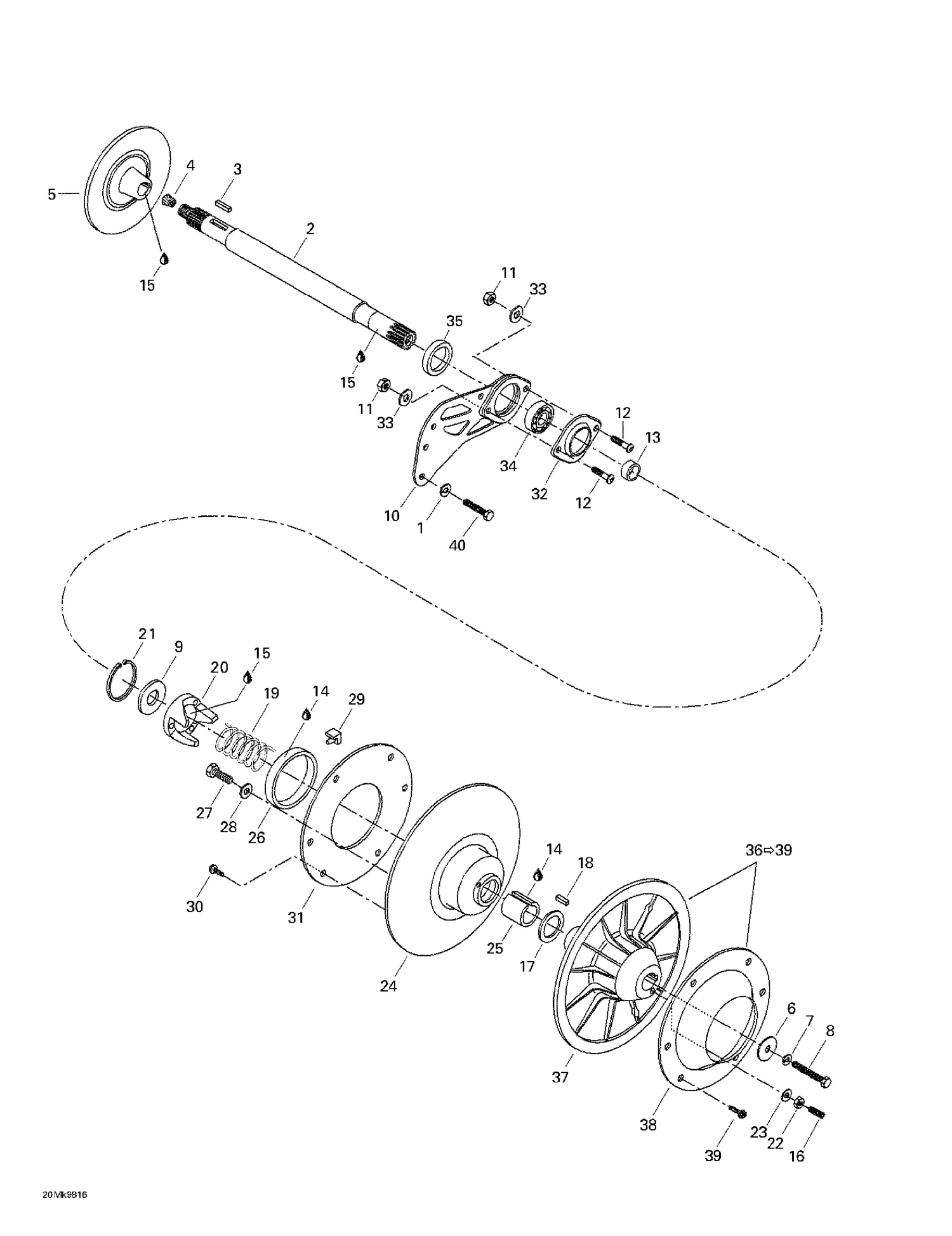

| Ref | Part Number | Description |
|---|
| 1 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 2 |
501026300 |
COUNTER SHAFT - Call your local BRP dealership |
| 3 |
507021300 |
KEY - Call your local BRP dealership |
| 4 |
414784800 |
CORK - Call your local BRP dealership |
| 5 |
507031300 |
BRAKE DISK - Call your local BRP dealership |
| 6 |
517302322 |
Strength Washer This part replaces 517293300. |
| 7 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 8 |
207087544 |
HEX. SCREW M8 X 75 - Call your local BRP dealership This part replaces 222087565. |
| 9 |
504141800 |
Washer |
| 10 |
080039300 |
Spacer (Casting) |
| 11 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 12 |
732601156 |
Allen Screw M8 x 25 |
| 13 |
504149100 |
Spacer |
| 14 |
413703100 |
Loctite 609, 10 ml |
| 15 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 16 |
223563065 |
Allen Screw M6 x 30 |
| 17 |
504141900 |
Thrust Washer |
| 18 |
414820800 |
Key |
| 19 |
414558900 |
RELEASE SPRING, BEIGE - Call your local BRP dealership |
| 20 |
504148300 |
Cam |
| 21 |
371903100 |
CIRCLIP - Call your local BRP dealership |
| 22 |
232061414 |
Hex. Nut M6 This part replaces 228061045. |
| 23 |
420245370 |
WASHER - Call your local BRP dealership |
| 25 |
415011200 |
BUSHING - Call your local BRP dealership |
| 27 |
732600022 |
SCREW-SOCKET BN.HD.GM6174 - Call your local BRP dealership |
| 28 |
399910000 |
Flat Washer |
| 29 |
414918000 |
CAM SLIDER SHOE - Call your local BRP dealership |
| 32 |
504153089 |
BEARING HOUSING ASS'Y - Call your local BRP dealership This part replaces 501026900. |
| 33 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 34 |
405408200 |
BALL BEARING - Call your local BRP dealership |
| 35 |
417126302 |
SPACER - Call your local BRP dealership |
| 37 |
417010200 |
Fixed Flange |
