| Ref | Part Number | Description |
|---|
| BP |
278002765 |
Battery Cable |
| COM |
278001665 |
Female Terminal |
| COM |
278002896 |
Housing, 6 Circuits |
| COM |
515175678 |
Male Wedge, 6 Circuits |
| COVER |
710000742 |
Little Fuse, 5 Amperes |
| COVER |
710000745 |
Little Fuse, 15 Ampere |
| COVER |
710000747 |
Little Fuse, 30 Amperes |
| ECMB_L |
710001590 |
Female Terminal |
| ECMB_L |
710001593 |
Plug |
| ECMB_L |
710001727 |
Female Terminal |
| ECMB_S |
710001588 |
Female Terminal Housing, 48 Circuits |
| ECMB_S |
710001589 |
Female Terminal |
| ECMB_S |
710001591 |
Cover, 48 positions |
| ECMB_S |
710001592 |
Plug |
| FB |
278000218 |
Wire Seal |
| FB |
278001065 |
Wire Seal |
| FB |
278002578 |
Female Terminal |
| FB |
278002824 |
Case Ass'y with seal, 24 positions |
| FB |
278002825 |
Fuse Cover |
| FB |
278002880 |
Seal Plug |
| FB |
278003828 |
Relay 30 Amp This part replaces 278002822. |
| FB |
710000048 |
Wire Seal |
| FB |
710000742 |
Little Fuse, 5 Amperes |
| FB |
710000744 |
Little Fuse, 10 Amperes |
| FB |
710000745 |
Little Fuse, 15 Ampere |
| FB |
710000747 |
Little Fuse, 30 Amperes |
| FB |
710000890 |
Female Terminal |
| FB |
710000918 |
Female Terminal |
| FP |
278002185 |
Male Housing, 4 Circuits |
| FP |
278002186 |
Wire Seal |
| FP |
278002187 |
Female Terminal |
| GND1 |
278001392 |
Open Barrel Terminal |
| HIC |
278002453 |
Female Terminal |
| HIC |
278002854 |
CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership |
| HIC1 |
278002453 |
Female Terminal |
| HIC1 |
278002457 |
Seal Plug |
| HIC1 |
278002858 |
Female Housing 20 Circuits |
| RE2 |
710000877 |
Female Terminal |
| RE2 |
710000879 |
Female Housing, 3 Circuits |
| RE2 |
710000881 |
Seal |
| RE2 |
710000882 |
Cap |
| STS |
515177192 |
Female Housing, 2 Circuits |
| STS |
710001163 |
Wire Seal |
| XXX |
278000632 |
Female Terminal |
| XXX |
278000738 |
Male Lock, 4 Circuits |
| XXX |
278002642 |
Female Terminal |
| XXX |
278002824 |
Case Ass'y with seal, 24 positions This part replaces 278002745. |
| 1 |
278003423 |

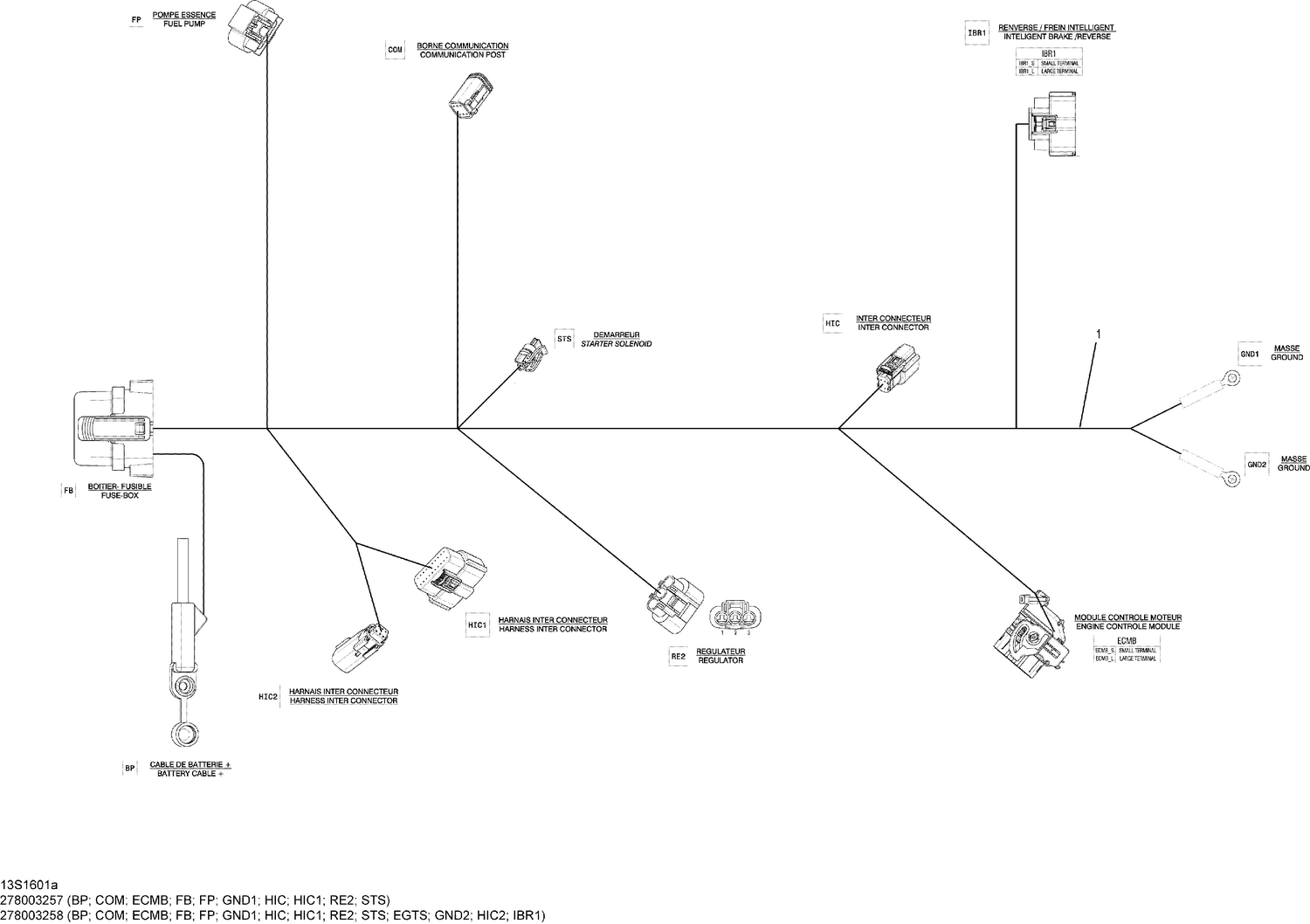

Main Harness This part replaces 278003257. |
