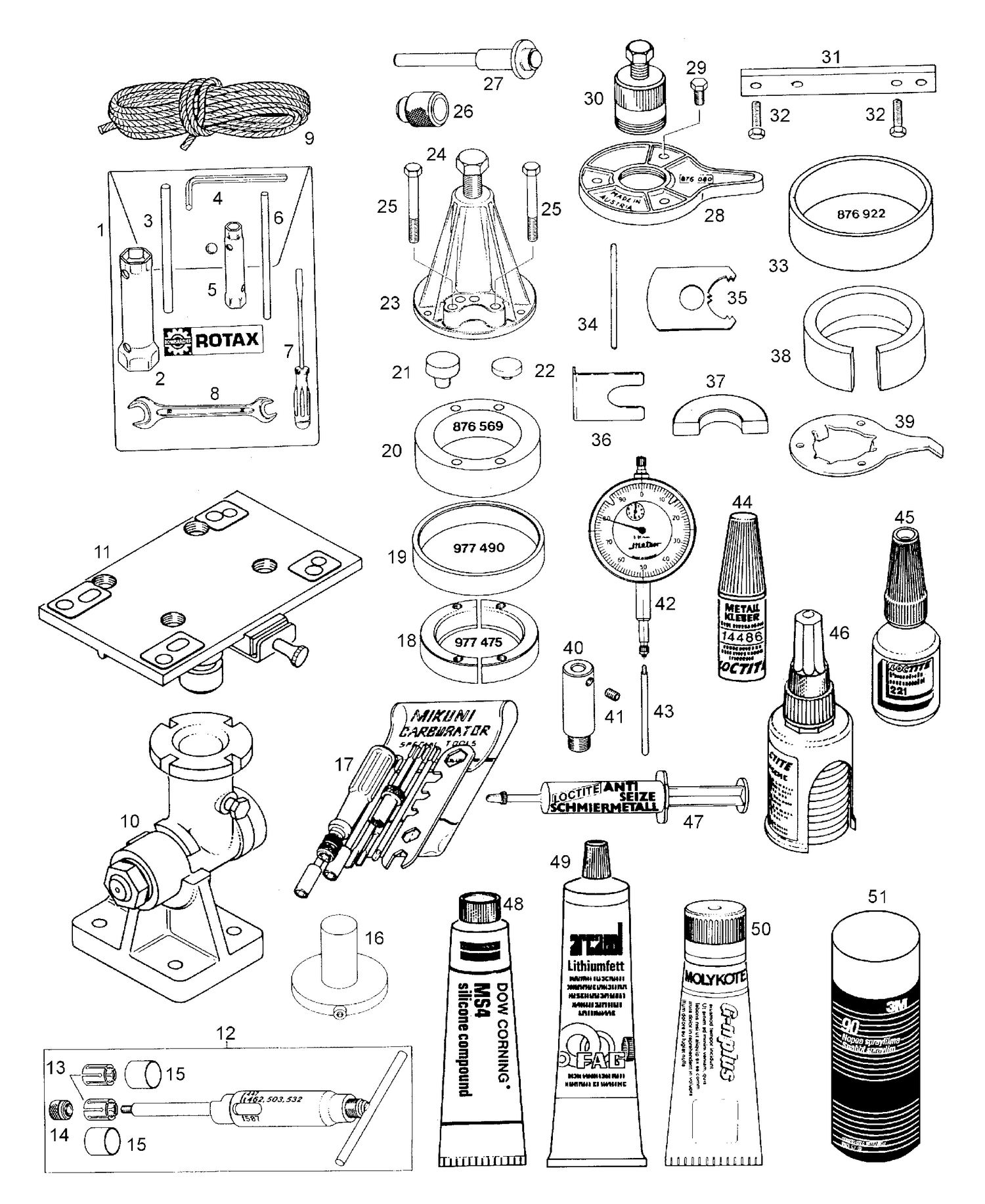

11- Tools
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420877354 | Tool bag |
| 2 | 420876210 | Sleeve 21/26mm |
| 3 | 420997420 | Bolt 8x130-10 |
| 4 | 420277810 | Allen key 6 mm |
| 4 | 420876360 | Allen key 5 mm |
| 5 | 420876227 | Sleeve 10/13mm |
| 6 | 420997425 | Bolt 6x130 |
| 7 | 420876200 | DRIVER-SCREW - Call your local BRP dealership |
| 8 | 420276065 | WRENCH-FORK 10 - Call your local BRP dealership |
| 9 | 420852091 | Starting rope |
| 11 | 420877646 | Mounting plate |
| 13 | 420877040 | Expansion sleeve |
| 14 | 420877155 | Extracting nut assy |
| 15 | 420877180 | Locatin sleeve |
| 16 | 420877555 | Insertion-jig assy |
| 17 | 420876960 | Tool kit for mikuni |
| 18 | 420977475 | HALF-RING PULL - Call your local BRP dealership |
| 19 | 420977490 | RING-PULLER - Call your local BRP dealership |
| 20 | 420876569 | RING-DISTANCE - Call your local BRP dealership |
| 21 | 420876553 | PROTECT-CRANK - Call your local BRP dealership This part replaces 420876552. |
| 22 | 420876557 | Cover, magn.side |
| 24 | 420940755 | SCREW-HEX. - Call your local BRP dealership |
| 25 | 420841201 | Screw M8x70 |
| 26 | 420877020 | Circlip, sleeve |
| 27 | 420877010 | Pusher, circlip |
| 28 | 420876081 | Cle De Retenue *Wrench-Holder This part replaces 420876080. |
| 29 | 207182044 | Hex. Cap Screw M8 x 20 This part replaces 420940591. |
| 30 | 529035547 | Extract.Magnet.*Magneto-Puller This part replaces 420876065. |
| 31 | 420876171 | TOOL-ALIGN.CYL - Call your local BRP dealership |
| 32 | 207182544 | Hex. Screw M8 X 25 This part replaces 420240275. |
| 33 | 420876922 | Centr. ring, magn. |
| 34 | 420876640 | Crankshaft fixation b |
| 35 | 420876695 | Hålder |
| 36 | 420876620 | Feeler gauge,P.T.O. |
| 37 | 420876822 | Centr. ring, magn. |
| 38 | 420876090 | Install.ring, piston |
| 39 | 420876357 | Fan holder |
| 40 | 420876940 | Gauge adapter |
| 41 | 420841771 | SET SCREW M6 X 8 - Call your local BRP dealership |
| 42 | 420876950 | Precision dial gauge |
| 43 | 420876945 | Gauge pin |
| 44 | 420897341 | Loctite 14486 |
| 45 | 293800060 | Loctite 243, 10 ml This part replaces 420899785. |
| 46 | 420899784 | Loct 574/orange/50 |
| 47 | 420297434 | Loctite anti-seize |
| 48 | 420897061 | Silicon grease |
| 49 | 420897330 | Lithium-base grease |
| 50 | 420297433 | Molykote G-N |
