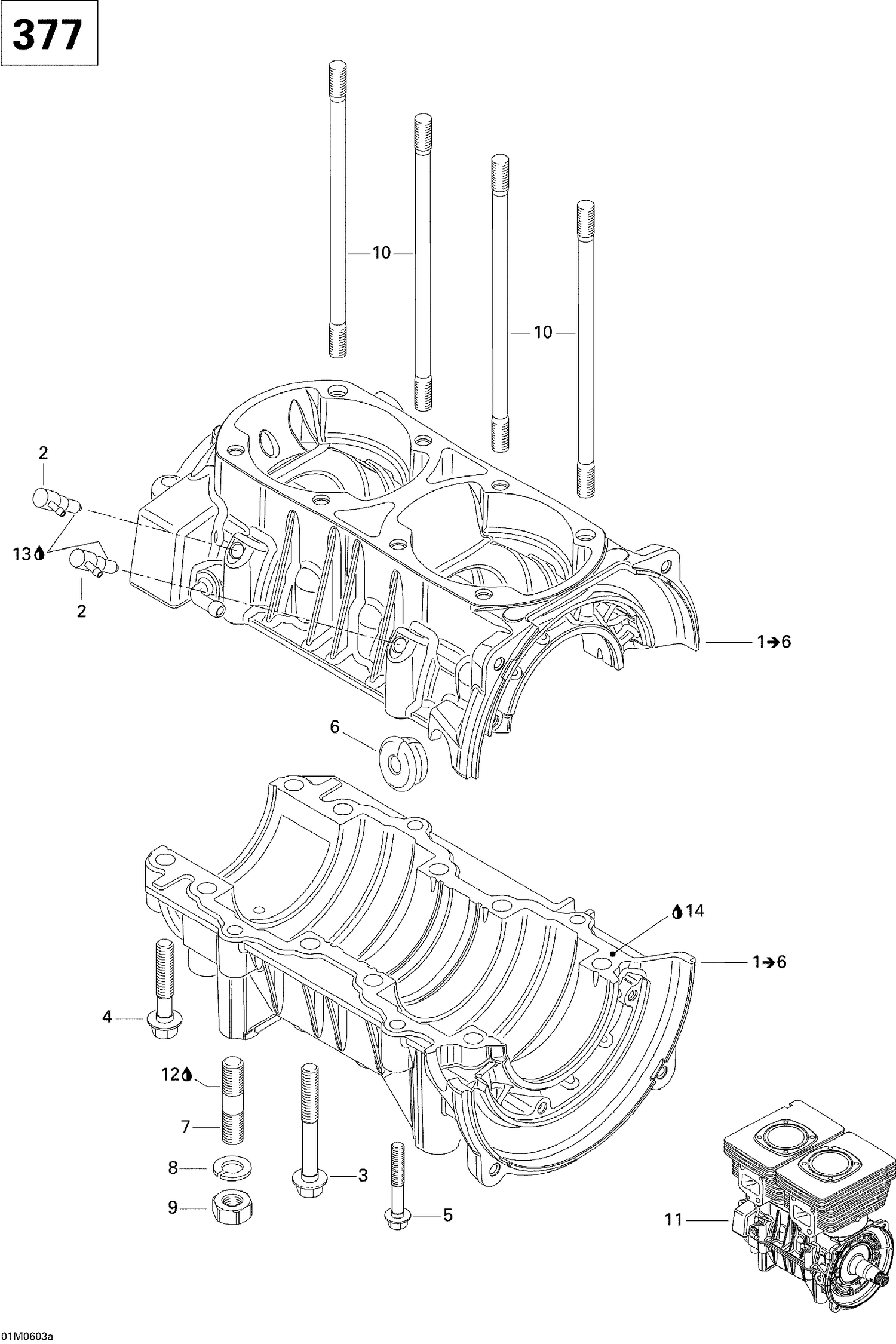

| Ref | Part Number | Description |
|---|
| 2 |
420956511 |
Check Valve This part replaces 420956510. |
| 3 |
420640959 |
Collar Hex Screw M8 X 68.5 This part replaces 420640951. |
| 4 |
420640433 |
Collar Hex Screw M8 X 45 This part replaces 420640431. |
| 5 |
420941451 |
HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership |
| 6 |
420860962 |
Cable Grommet |
| 7 |
420940190 |
Stud M10 X 29/20 |
| 8 |
Not |
Available As Spare Part - Lock Washer |
| 9 |
Not |
Available As Spare Part - Hex Nut M10 |
| 10 |
420841149 |
STUD M8 X 167 - Call your local BRP dealership |
| 11 |
420037706 |
Shock Block 377 |
| 12 |
293800060 |
Loctite 243, 10 ml |
| 13 |
219703000 |
Sealant Loctite 648 This part replaces 413711400. |
