Parts Catalog

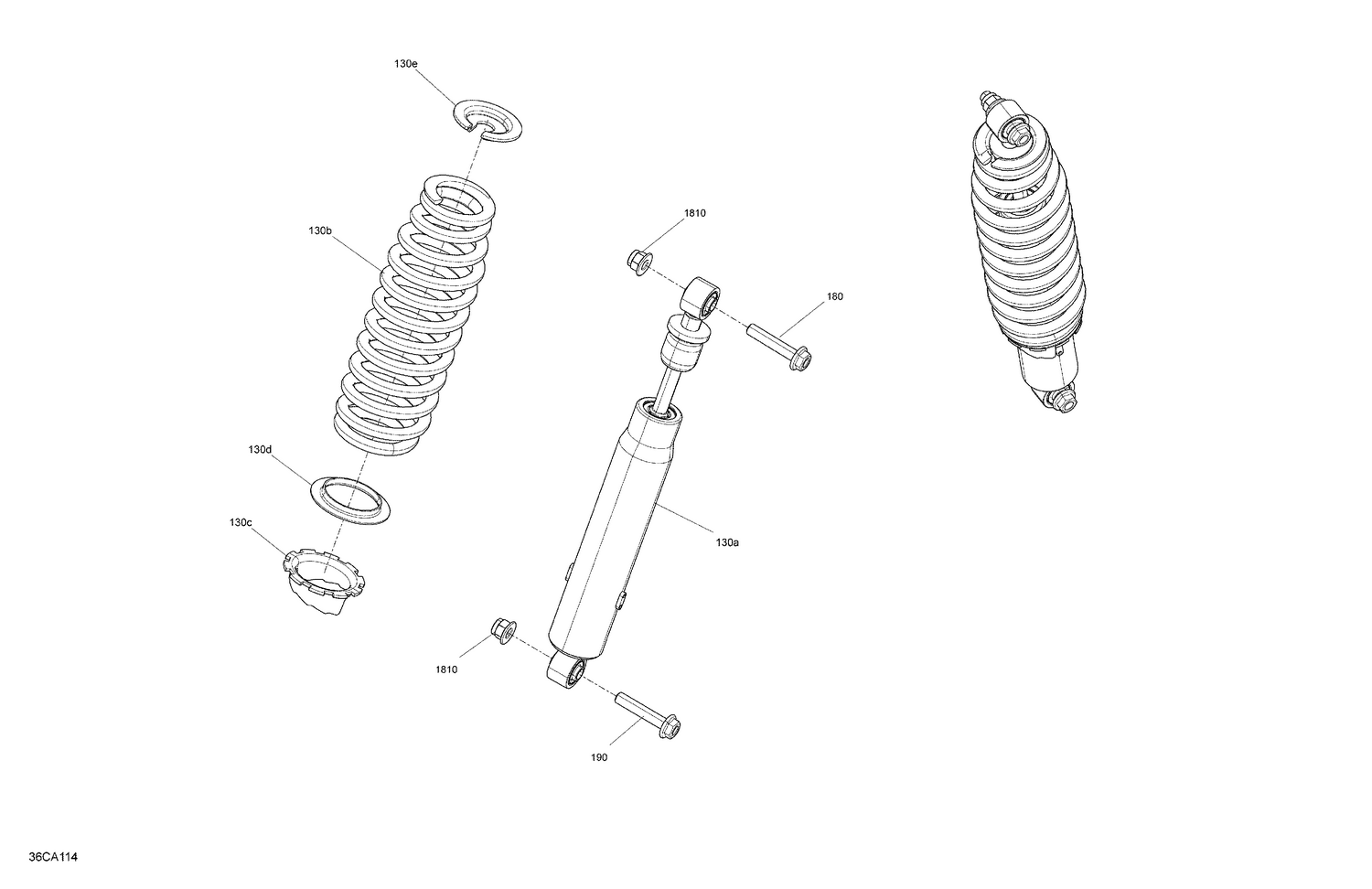

05- Suspension - Rear Shocks - BASE

Parts (7)

Ref	Part Number	Description
130a	706002719	Rear Shock
130b	706003007	Can-Am Red Rear Spring
130c	706000910	Adjustment Ring
130d	706000911	Protector Ring
130e	706001894	Spring Cup
180	250000857	Flange Screw M12 X 60
190	250000857	Flange Screw M12 X 60
