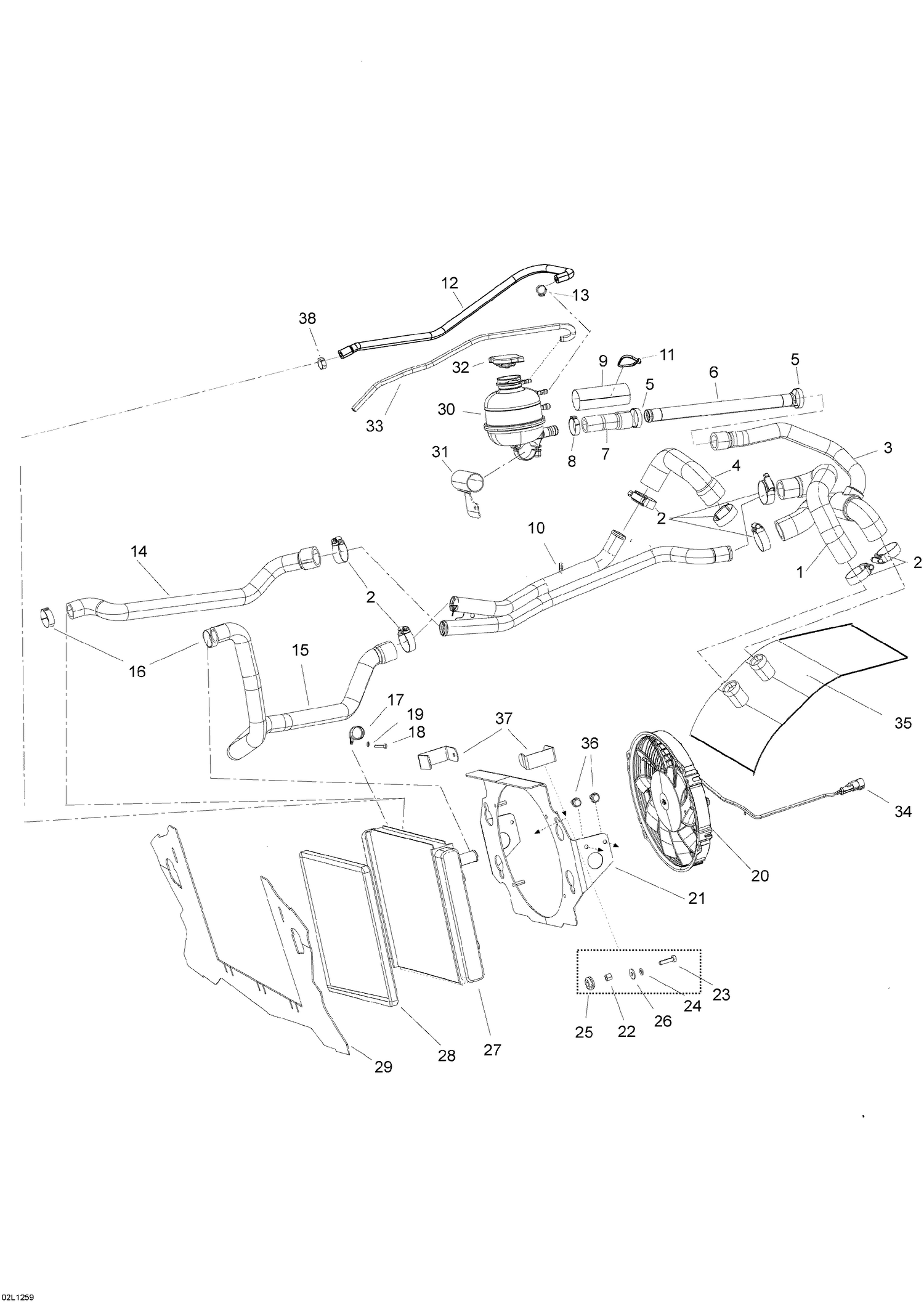

01- Cooling System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000762 | HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 509000806 | HOSE TUNNEL RAD.->ENGINE-FILLING - Call your local BRP dealership |
| 4 | 509000932 | Engine Outlet Hose This part replaces 509000564. |
| 5 | 293650099 | Oetiker Gear Clamp |
| 6 | 509000644 | PIPE - Call your local BRP dealership |
| 7 | 509000698 | HOSE - Call your local BRP dealership |
| 8 | 509000442 | Gear Clamp |
| 9 | 707001349 | Protector Tube This part replaces 509000730. |
| 10 | 509000800 | Water Pipe |
| 11 | 414115200 | Tie-Rap 180 mm |
| 12 | 509000750 | BREATHER HOSE - Call your local BRP dealership |
| 13 | 293650047 | Crimp Clamp, 15.3-706R |
| 14 | 509000707 | HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership |
| 15 | 509001000 | Air Radiator Hose This part replaces 509000706. |
| 16 | 293650099 | Oetiker Gear Clamp |
| 17 | 605627008 | Clamp With Rubber D=30 |
| 18 | 207162544 | Hex. Screw M6 X 25 |
| 19 | 20052 | Washer |
| 20 | 509000838 | Cooling Fan |
| 21 | 509000791 | Radiator support |
| 22 | 605453745 | Bushing |
| 23 | 207162544 | Hex. Screw M6 X 25 |
| 24 | 20052 | Washer-Lock |
| 25 | 709000582 | Grommet This part replaces 293720053. |
| 26 | 234062410 | Flat Washer 6 mm |
| 27 | 509000787 | Radiator |
| 28 | 509000718 | Insulation |
| 29 | 509000784 | AIR DEFLECTOR LTS - Call your local BRP dealership |
| 30 | 509000421 | Coolant Tank |
| 31 | 509000782 | Tank Support |
| 32 | 509000180 | Radiator Pressure Cap |
| 33 | 276000048 | Hose 6 mm |
| 34 | 278000220 | Male Connector, 2 Circuits |
| 35 | 509000645 | Radiator Tunnel |
| 36 | 40870 | HEX. TAPING SCREW - Call your local BRP dealership |
| 37 | 509000703 | Deflector Clip |
