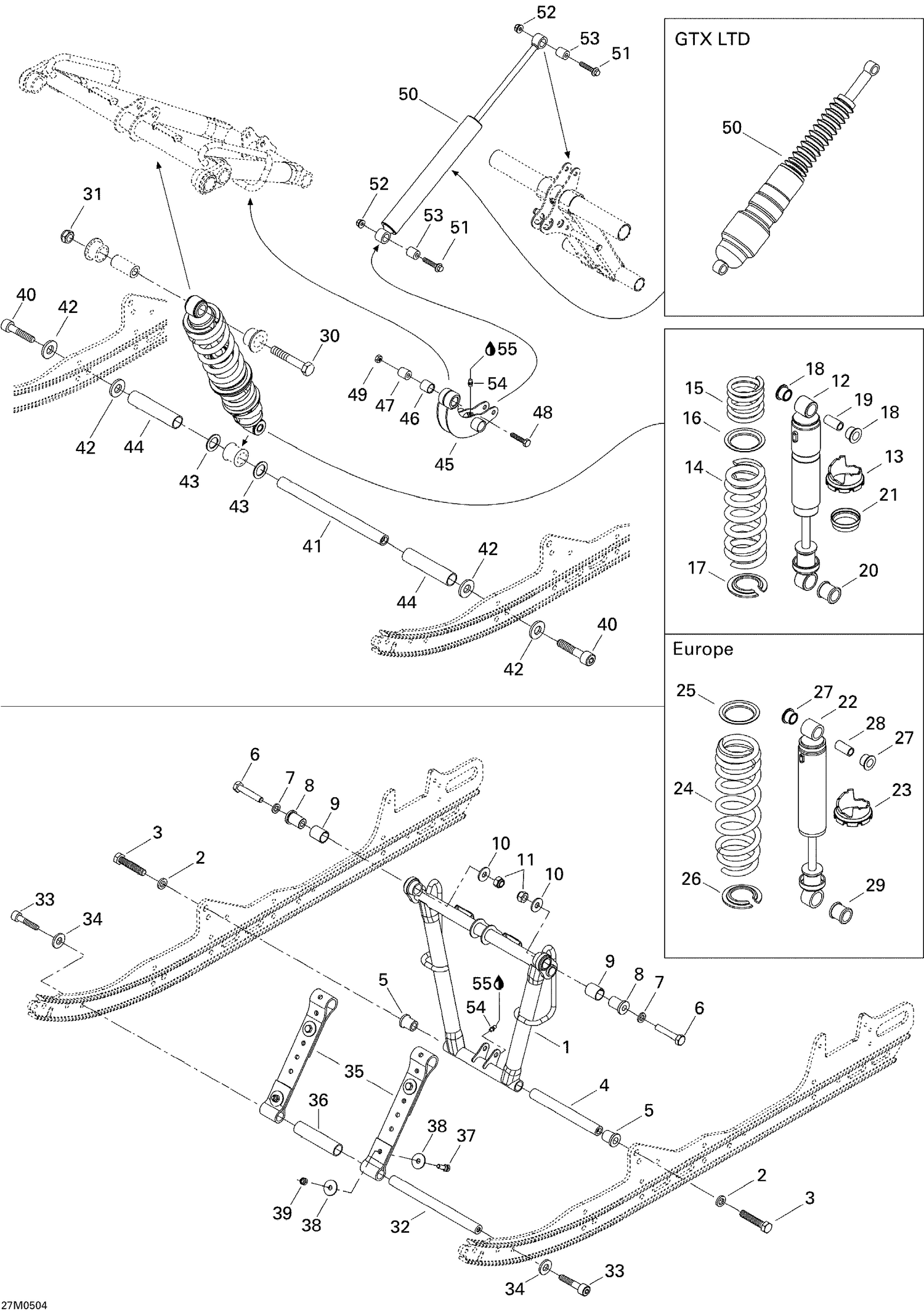

08- Front Arm 600HO
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503191071 | Front Arm |
| 2 | 503189276 | Washer |
| 3 | 207226044 | HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership |
| 4 | 503189313 | SHAFT - Call your local BRP dealership |
| 5 | 503189323 | CUSHION - Call your local BRP dealership |
| 6 | 207005544 | Hex. Screw M10 X 55 |
| 7 | 732900049 | Washer |
| 8 | 503190373 | EXTENSION - Call your local BRP dealership |
| 9 | 503190474 | EXTENDED BUSHING - Call your local BRP dealership |
| 10 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 11 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 13 | 505073625 | Adjustment Cam This part replaces 505070150. |
| 14 | 503190478 | SPRING - Call your local BRP dealership |
| 15 | 503190476 | SPRING - Call your local BRP dealership |
| 16 | 503191872 | Spring Guide This part replaces 517184300. |
| 17 | 503189912 | Spring Stopper |
| 18 | 503189117 | Urethane Bushing |
| 19 | 503189282 | Bushing |
| 20 | 503189271 | Bushing |
| 21 | 503190297 | Spring Spacer |
| 30 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 31 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 32 | 503189562 | AXLE - Call your local BRP dealership |
| 33 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 34 | 503189564 | Washer |
| 35 | 503190782 | STOPPER STRAP - Call your local BRP dealership |
| 36 | 503189265 | Spacer |
| 37 | 207682544 | Hex. Flange Screw M8 X 25 |
| 38 | 224081301 | Flat Washer |
| 39 | 233281414 | Hex. Flange Elastic Nut M8 |
| 40 | 205523544 | Socket Head Screw M12 X 35, Scotch Grip |
| 41 | 503189272 | CENTER SHOCK SHAFT - Call your local BRP dealership |
| 42 | 503189276 | Washer |
| 43 | 503189273 | Washer |
| 44 | 503189274 | SPACER - Call your local BRP dealership |
| 45 | 503189845 | Rocker |
| 46 | 503189388 | Rocker Axle |
| 47 | 503189626 | CUSHION - Call your local BRP dealership |
| 48 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 49 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 51 | 207684044 | Hex. Flange Screw M8 X 40 |
| 52 | 233281414 | Hex. Flange Elastic Nut M8 |
| 53 | 414936000 | Bushing |
| 54 | 408200700 | Grease Fitting |
