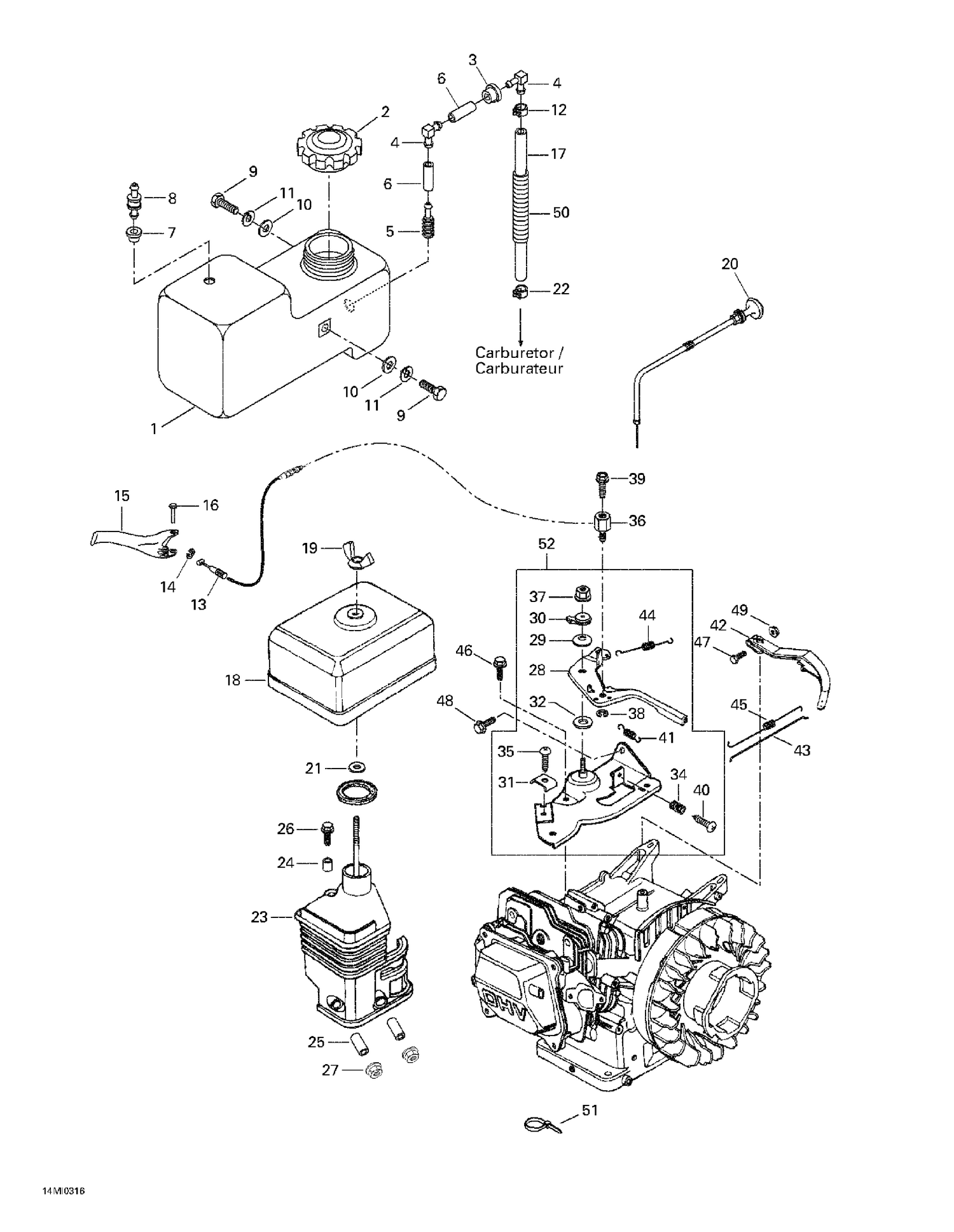

02- Fuel System
Parts (50)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 571009800 | FUEL TANK - Call your local BRP dealership |
| 2 | 513033025 | Fuel Tank Cap This part replaces 572039600. |
| 3 | 570045500 | Grommet |
| 4 | 414580600 | Elbow Male Connector |
| 5 | 414865700 | Fuel Filter |
| 6 | 219704410 | Polyurethane Hose 10000Mm Long |
| 7 | 570027700 | GROMMET - Call your local BRP dealership |
| 8 | 275500398 | Check Valve |
| 9 | 207161044 | HEX. SCREW M6 X 10 - Call your local BRP dealership |
| 10 | 224061121 | Flat Washer |
| 11 | 234161471 | Lock Washer M6, Black |
| 12 | 414554800 | Spring Clamp |
| 13 | 512060024 | THROTTLE CABLE - Call your local BRP dealership |
| 14 | 414274500 | Circlip |
| 15 | 506151227 | THROTTLE HANDLE - Call your local BRP dealership |
| 16 | 390502000 | Tubular Rivet |
| 17 | 513032924 | LINE - Call your local BRP dealership |
| 18 | H17230ZE0820 | Intake Cover |
| 19 | H90325044000 | Wing Nut |
| 20 | 415108600 | CHOKE CABLE - Call your local BRP dealership |
| 21 | 234461608 | External Serrated Lock Washer 6 mm |
| 22 | 415127453 | Spring Clamp |
| 24 | H17239ZE1000 | Collar B |
| 25 | H17238ZE0010 | Collar |
| 26 | H957010602000 | Flanged Bolt 6 x 20 |
| 27 | H9405006080 | Flanged Nut 6 mm |
| 28 | H16571ZH7000 | Control Lever |
| 29 | H16574ZE1000 | Spring Lever |
| 30 | H16575ZH8000 | Washer |
| 31 | H16576891000 | Cable Holder |
| 32 | H16578ZE1000 | Spacer |
| 33 | H16580ZH7810 | Base |
| 34 | H16584883300 | Spring |
| 35 | H93500050160B | Pan Screw 5 x 16 |
| 36 | H16594883010 | Cable Holder |
| 37 | H90114SA0000 | Nut |
| 38 | H90605230000 | Circlip |
| 39 | H93500040060H | Screw |
| 40 | H93500050250H | Screw |
| 41 | 512059048 | RELEASE SPRING - Call your local BRP dealership |
| 42 | H16551ZE1010 | Governor Arm |
| 43 | H16555ZE0000 | Governor Rod |
| 44 | H16561ZE0020 | Governor Spring |
| 45 | H16562ZE0020 | Throttle Return Spring |
| 46 | H90013883000 | Screw |
| 47 | H90015ZE5010 | Bolt |
| 48 | H90022888010 | Screw |
| 49 | H9405006080 | Flanged Nut 6 mm |
| 50 | 219704407 | Tubing 10 MM 1000MM Long |
| 51 | 293750002 | Tie Wrap 142 mm |
