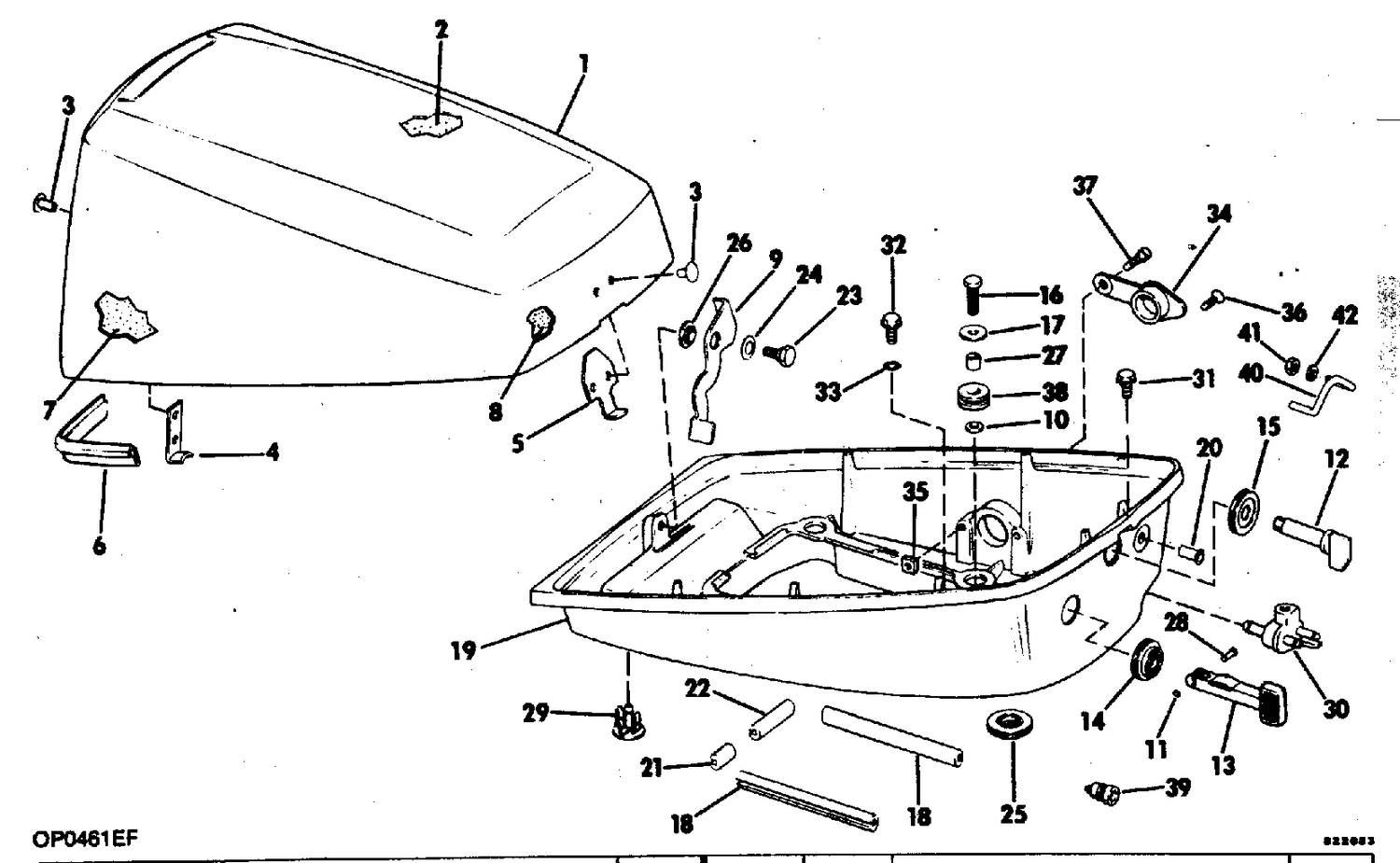

| Ref | Part Number | Description |
|---|
| 1 |
0281727 |
MOTOR COVER ASSY.,Evinrude |
| 1 |
0281741 |
MOTOR COVEER ASSY.,Evinrude (SRL model only) |
| 2 |
0325381 |
SOUND BLANKET TOP |
| 3 |
0318836 |
RIVET |
| 4 |
0391114 |
HOOK Rear, (includes rivets) |
| 5 |
0431940 |
HOOK Front, (includes rivets) This part replaces 0391113. |
| 6 |
0334146 |
SEAL This part replaces 0326165. |
| 7 |
0326909 |
SOUND BLANKET, Side |
| 8 |
0326908 |
SOUND BLANKET, Front |
| 9 |
0312833 |
HANDLE, Latch |
| 10 |
0329241 |
RONDELLE This part replaces 0306482. |
| 11 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 12 |
0325380 |
KNOB, Slow speed |
| 13 |
0325302 |
KNOB, Choke |
| 14 |
0204457 |
GOMMET, Choke knob |
| 15 |
0325301 |
GROMMET, Knob slow speed |
| 16 |
0306409 |
VIS, collecteur vers carter-moteur |
| 18 |
0325087 |
SEAL, Engine cover side |
| 19 |
0390234 |
ENGINE COVER LOWER |
| 19 |
0392179 |
ENGINE COVER LOWER |
| 20 |
0312979 |
EYELET |
| 21 |
0325088 |
SEAL, Exhaust housing rear, starboard |
| 22 |
0325823 |
SEAL, Exhaust housing, rear port |
| 23 |
0302592 |
SCREW |
| 24 |
0204445 |
BOW WASHER |
| 25 |
0331634 |
BAGUE, câble d'accélérateur This part replaces 0325958. |
| 26 |
0204444 |
BUSHING |
| 27 |
0325085 |
SLEEVE, Mount engine cover |
| 28 |
0322340 |
HINGE PIN, Knob |
| 29 |
0321885 |
NIPPLE |
| 30 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 31 |
0313117 |
SCR,Clamp,eng cable |
| 39 |
0327442 |
BUSHING, Cable to engine cover |
| 40 |
0332146 |
ROPE GUIDE This part replaces 0327502. |
| 0209054 |
0209054 |
OWNER'S MANUAL, Evinrude |
| 0281875 |
0281875 |
DECAL SET, Evinrude (SRL model only) |
