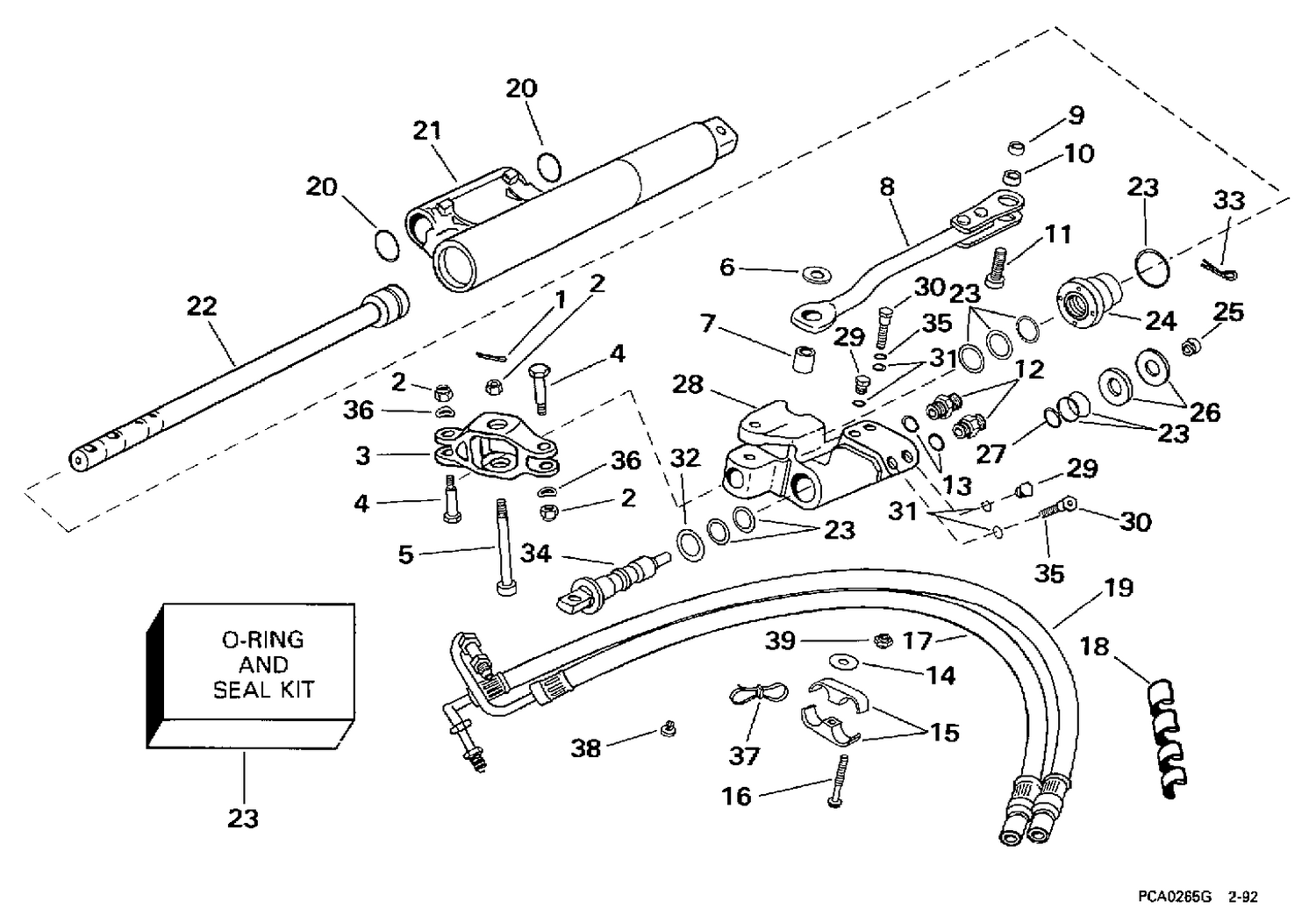

STEERING CYLINDER KIT - PORT - V8 MODELS ONLY
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0302858 | GOUPILLE, fendue - Tringlerie de verrouillage de marche arrière |
| 3 | 0913796 | BELLCRANK |
| 8 | 0985525 | STEERING CONN. ASSY. |
| 16 | 0325115 | SCREW, Oil tank/EMM mount |
| 17 | 0985532 | HOSE ASSEMBLY, Return |
| 18 | 0911581 | SLEEVE, Return hose assy. |
| 19 | 0985531 | HOSE ASSEMBLY, Pressure |
| 20 | 0314491 | O RING |
| 21 | 0913335 | CYLINDER, Port |
| 28 | 0985534 | HOUSING & PLUG ASSY., Spool valve, port |
| 38 | 0333011 | PLUG |
| 0987051 | 0987051 | STEERING CYL. & HOSE ASSY., Port |
| 0987053 | 0987053 | CYLINDER & VALVE ASSEMBLY |
