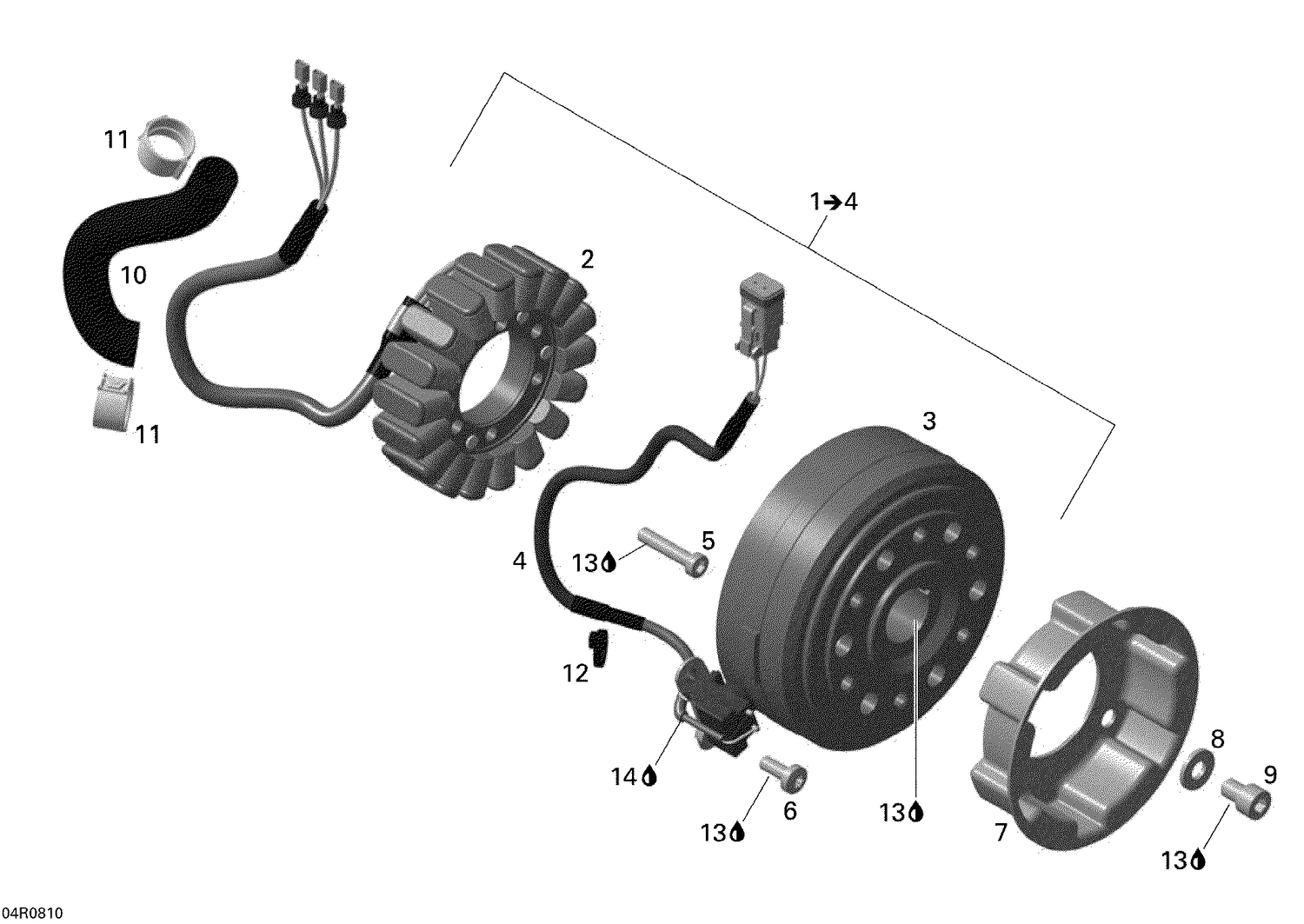

03- Magneto
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420889904 | Stator Plate This part replaces 420889907. |
| 3 | 420665725 | FLYWHEEL - Call your local BRP dealership |
| 4 | 420966838 | Pickup Ass'y |
| 5 | 420840887 | SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 6 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 7 | 420852590 | Starting Pulley |
| 8 | 420827405 | Flat Washer |
| 9 | 420841520 | Socket Head Screw M8 X 12 |
| 10 | 420460871 | Tube |
| 11 | 420960896 | Conduit Clip |
| 12 | 420866714 | Tie Rap |
| 13 | 293800060 | Loctite 243, 10 ml |
