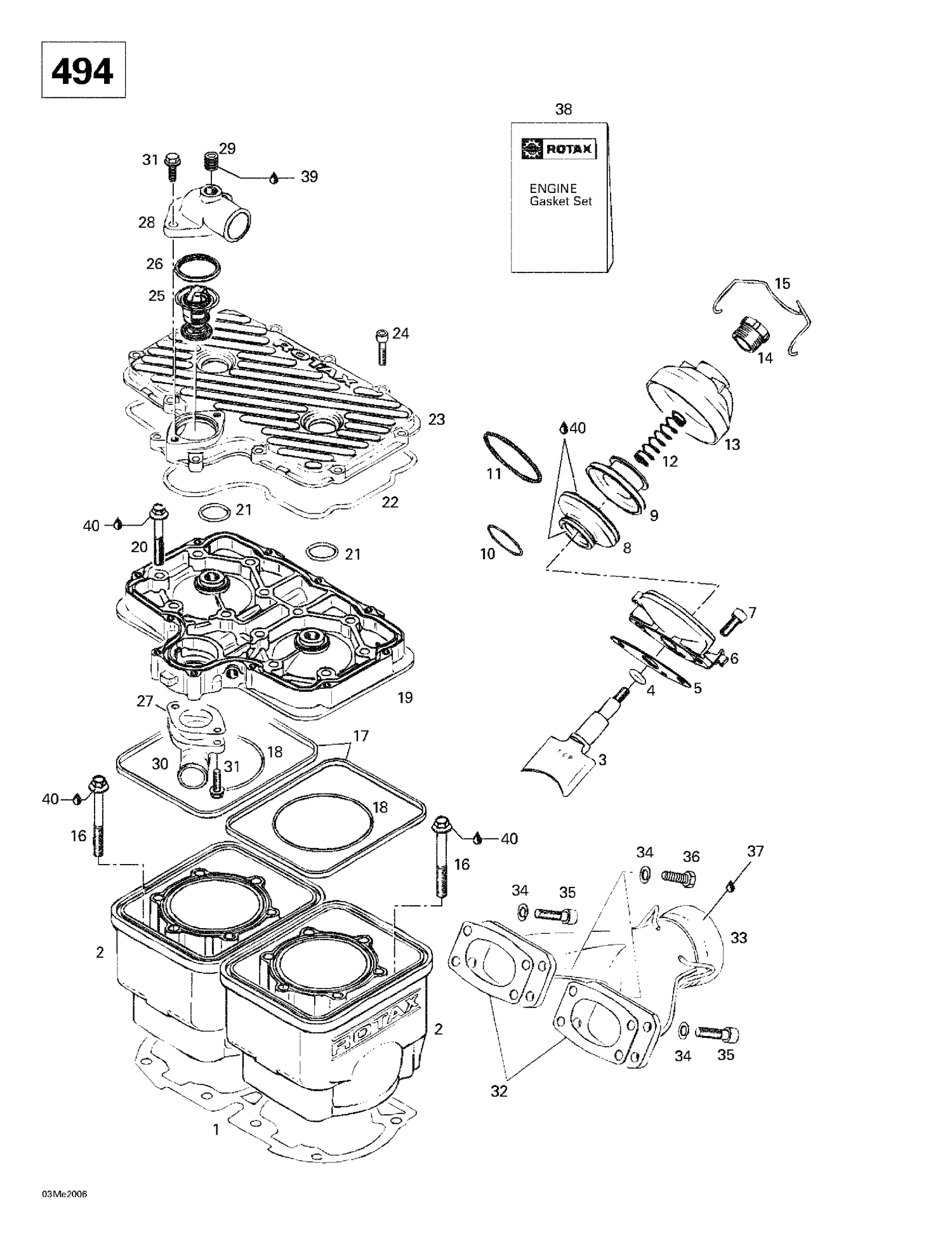

| Ref | Part Number | Description |
|---|
| 1 |
420931361 |
Gasket Double 0.4 mm |
| 2 |
420923617 |
Cylinder With Sleeve Ass'y |
| 3 |
420854300 |
EXHAUST VALVE - Call your local BRP dealership |
| 4 |
420430110 |
O-Ring |
| 5 |
420250239 |
Gasket |
| 6 |
420854265 |
Valve Housing |
| 7 |
420241237 |
Socket Head Screw M6 x 16 This part replaces 420241236. |
| 8 |
420260723 |
Exhaust Bellows This part replaces 290260723. |
| 9 |
420854449 |
Exhaust Valve This part replaces 420854447. |
| 10 |
420838255 |
Hose Spring This part replaces 420838253. |
| 11 |
420939281 |
Hose Spring This part replaces 290239043. |
| 12 |
420239954 |
Spring This part replaces 420239944. |
| 13 |
420911552 |
Valve Cover This part replaces 420911551. |
| 14 |
420241221 |
Adjuster Screw This part replaces 420241220. |
| 15 |
420838083 |
SPRING CLIP - Call your local BRP dealership This part replaces 420838082. |
| 16 |
420640959 |
Collar Hex Screw M8 X 68.5 This part replaces 420841996. |
| 17 |
420850040 |
RUBBER RING - Call your local BRP dealership |
| 18 |
420831792 |
O-Ring |
| 19 |
420923167 |
Cylinder Head (Silver) |
| 20 |
420240326 |
Hex. Flange Screw M8 X 53.5 |
| 21 |
420430782 |
O-Ring |
| 22 |
420931260 |
O-Ring |
| 23 |
420923623 |
Cylinder Head Cover (Silver) |
| 24 |
205062544 |
Socket Head Screw M6 X 25 |
| 25 |
420922519 |
Thermostat This part replaces 414834100. |
| 26 |
420931270 |
SEALING RING - Call your local BRP dealership |
| 27 |
420850339 |
Gasket This part replaces 420850336. |
| 28 |
420922061 |
BENT OUTLET SOCKET - Call your local BRP dealership |
| 29 |
420240480 |
PLUG SCREW - Call your local BRP dealership |
| 30 |
420922480 |
Bent Outlet Socket |
| 31 |
420941251 |
SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 32 |
420850535 |
Gasket |
| 33 |
420973228 |
Exhaust Manifold |
| 34 |
234181401 |
Lock Washer 8 mm |
| 35 |
205083044 |
Socket Head Screw M8 X 30 |
| 36 |
207182544 |
Hex. Screw M8 X 25 |
| 37 |
293800090 |
Sealant, Loctite, 80 ml This part replaces 413710300. |
| 38 |
420994227 |
Gasket Set |
| 39 |
219704462 |
ADHESIVE LOCTITE 515 50ML - Call your local BRP dealership |
