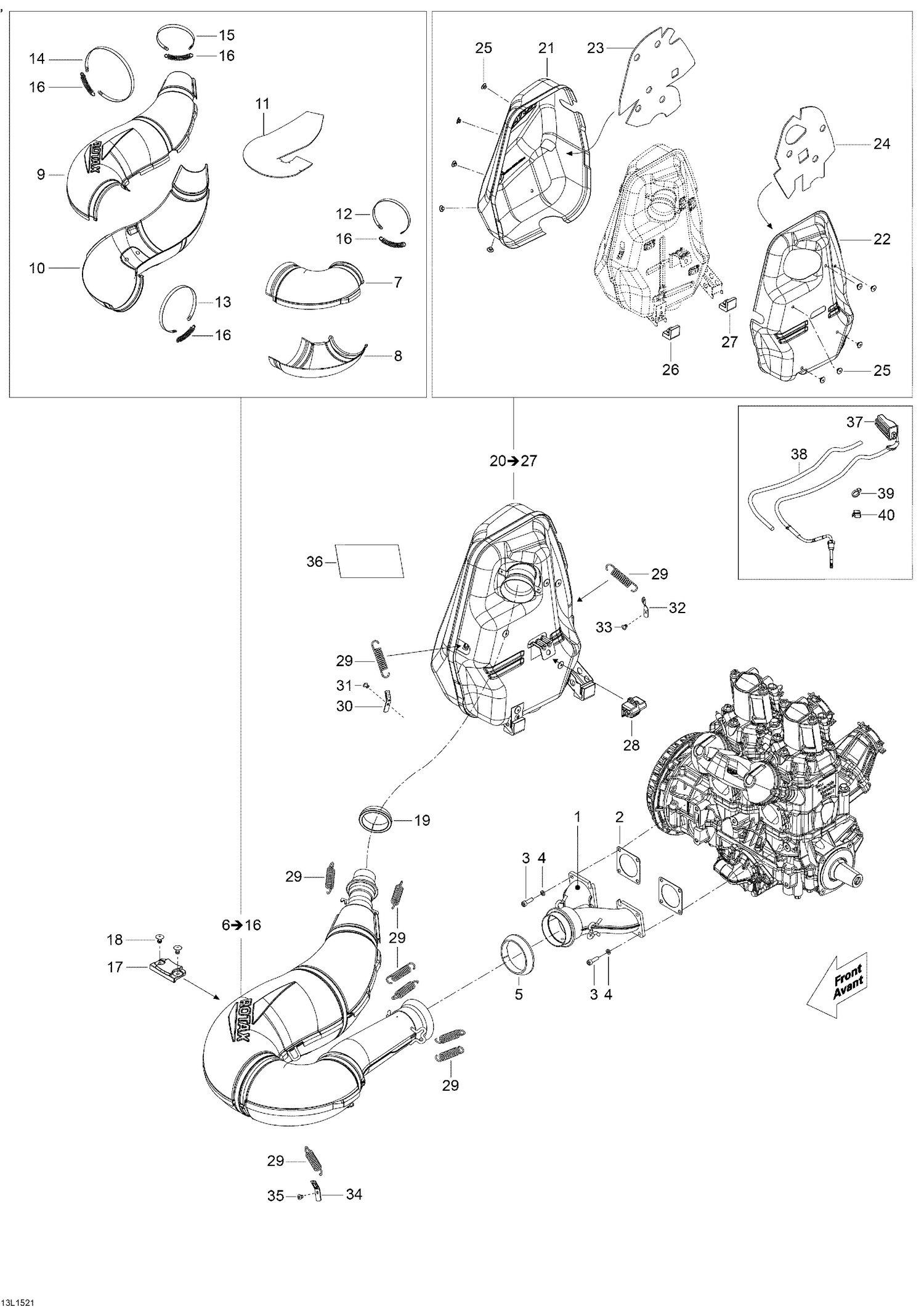

01- Exhaust System
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420673421 | Exhaust Manifold This part replaces 420673420. |
| 2 | 420850552 | Gasket |
| 3 | 250001077 | Socket Head Screw M6 X 20 This part replaces 514054626. |
| 4 | 514053953 | Washer |
| 5 | 514053487 | Exhaust Gasket |
| 7 | 514054992 | Front Upper Enveloppe |
| 8 | 514054993 | Front Lower Enveloppe |
| 9 | 514055039 | Rear Upper Half Enveloppe |
| 10 | 514054990 | Rear Lower Half Enveloppe |
| 11 | 514054487 | Insulating Wool |
| 12 | 514054408 | Retaining Strap |
| 13 | 514054409 | Retaining Strap |
| 14 | 514054410 | Retaining Strap |
| 15 | 514053499 | Retaining Strap |
| 16 | 514053643 | Spring |
| 17 | 514054275 | Bumper |
| 18 | 293150103 | Pop Rivet 3/16 |
| 19 | 514054174 | Exhaust Gasket |
| 21 | 514054985 | RH Deflector |
| 22 | 514054967 | LH Deflector |
| 23 | 514054711 | RH Insulating Wool |
| 24 | 514054299 | LH Insulating Wool |
| 25 | 390910000 | Pop Rivet 3/16 |
| 26 | 514054274 | Lower Stopper |
| 27 | 514054496 | Lower Stopper |
| 28 | 514054606 | Upper Stopper |
| 29 | 415107100 | Spring |
| 30 | 514054974 | Spring Bracket |
| 31 | 390402200 | Pop Rivet 3/16 |
| 32 | 514054974 | Spring Bracket |
| 33 | 390402200 | Pop Rivet 3/16 |
| 34 | 514054975 | Spring Bracket |
| 35 | 293150266 | Rivet Ornit 6,5 X 14.5 This part replaces 293150147. |
| 36 | 514054987 | Heat Shield |
| 37 | 514054870 | Temperature Sensor |
| 38 | 515175442 | Protector Tube |
| 39 | 293750001 | Tie-Rap 94 mm |
