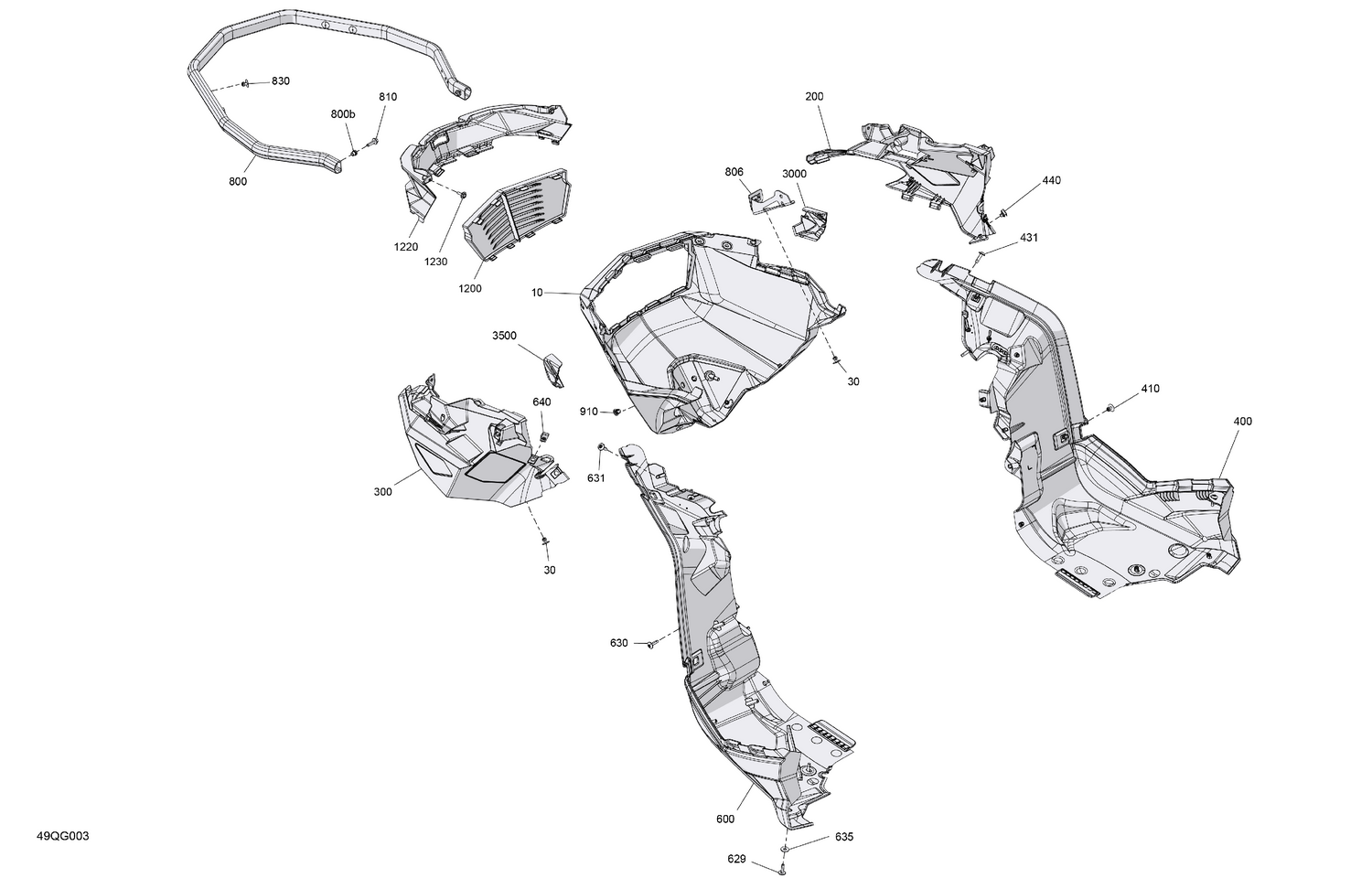

| Ref | Part Number | Description |
|---|
| 10 |
502008660 |
Bright White, Front Bottom Pan |
| 30 |
293150321 |
Black, Rivet Ornit 4.8 X 14 |
| 200 |
502008463 |
Bright White, RH Bottom Pan Cap |
| 300 |
502008464 |
Bright White, LH Bottom Pan Cap |
| 400 |
502008601 |
Bright White, RH Lateral Bottom Pan |
| 410 |
293150322 |
Black, Rivet Ornit 4.8 X 12 |
| 431 |
250000586 |
Torx Truss M5 X 20 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 600 |
502008602 |
Bright White, LH Bottom Pan |
| 629 |
250000586 |
Torx Truss M5 X 20 |
| 630 |
250001232 |
Screw Torx M5 X 20 |
| 631 |
250001232 |
Screw Torx M5 X 20 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 800b |
293450268 |
Insert M5 X 0.8 |
| 806 |
502008984 |
Horn Bracket |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150321 |
Black, Rivet Ornit 4.8 X 14 |
| 910 |
518321954 |
Fastener Panel |
| 1200 |
502008245 |
Lower Prefilter Grille |
| 1220 |
502008535 |
Bright White, Upper Prefilter Grille |
| 1230 |
250000725 |
Screw M4 X 16 |
| 3000 |
502008498 |
Bright White, LH Front Cap |
