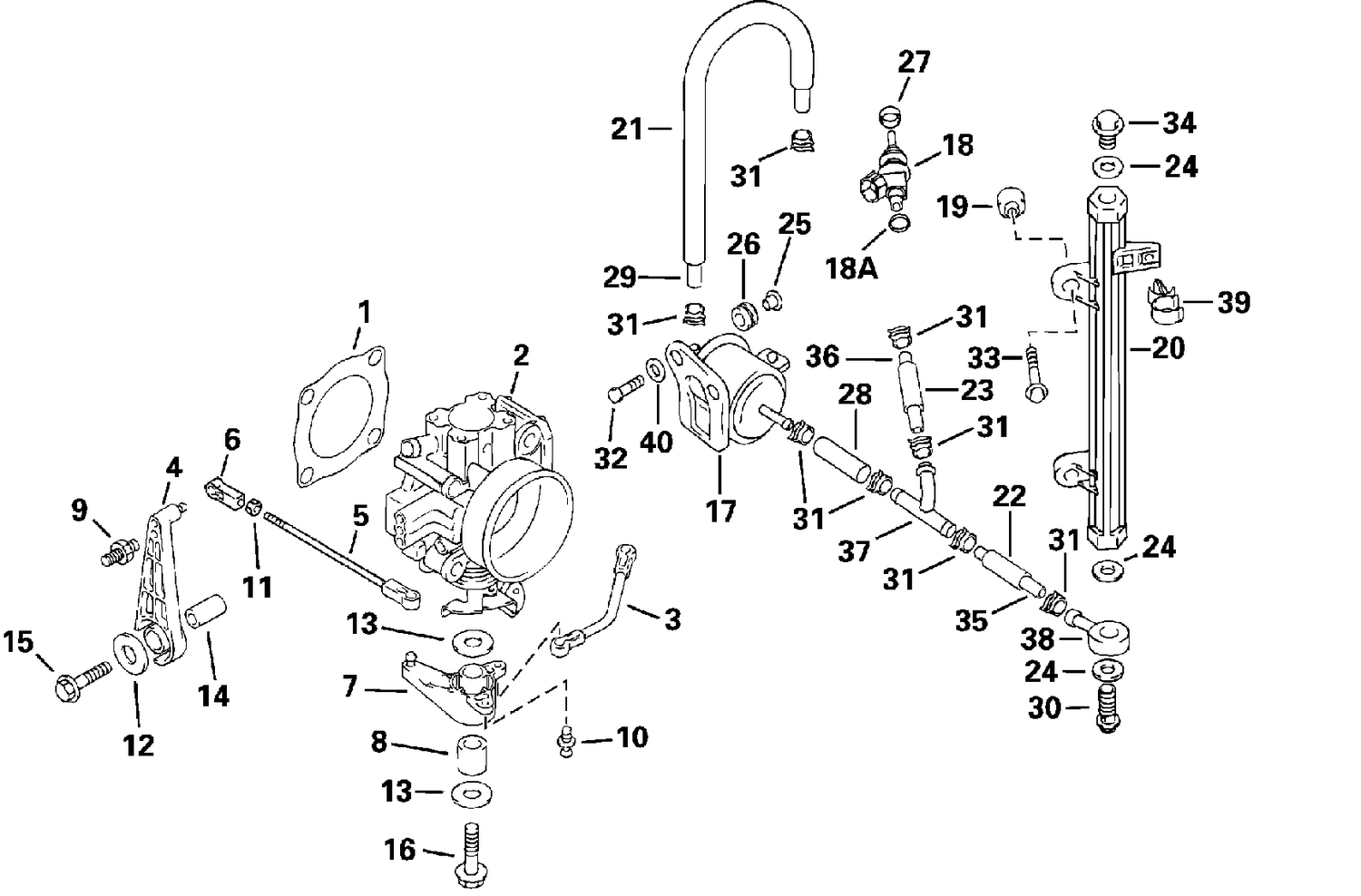

| Ref | Part Number | Description |
|---|
| 1 |
5030677 |
GASKET, Throttle body |
| 2 |
5030680 |
BODY, Throttle |
| 3 |
5030686 |
ROD, Throttle |
| 5 |
5030759 |
ROD, Throttle |
| 6 |
5030760 |
CONNECTEUR, TRINGLERIE D’ACCÉLÉRATEUR |
| 7 |
5030761 |
LEVER, Throttle |
| 8 |
5031762 |
PIVOT, Throttle lever |
| 9 |
*5032289 |
PIN,CONNECTOR This part replaces 5031078. |
| 10 |
5030403 |
BOLT |
| 12 |
5030428 |
RONDELLE |
| 13 |
5030432 |
WASHER |
| 14 |
5030475 |
SPACER |
| 15 |
5031079 |
BOLT |
| 17 |
5030706 |
FILTER, High pressure fuel |
| 18 |
5030708 |
INJECTOR, Fuel |
| 19 |
5030709 |
INSULATOR, Delivery pipe |
| 20 |
5030710 |
PIPE |
| 21 |
5030754 |
PROTECTOR, Fuel hose |
| 22 |
5032221 |
SLEEVE, Fuel hose |
| 23 |
5030754 |
PROTECTOR, Fuel hose This part replaces 5032222. |
| 24 |
5030466 |
GASKET |
| 25 |
5030471 |
SPACER |
| 26 |
5030555 |
CUSHION |
| 27 |
5031139 |
CUSHION |
| 30 |
5030567 |
BOLT |
| 31 |
5030579 |
CLAMP |
| 32 |
5030982 |
BOLT |
| 34 |
5031003 |
BOLT |
| 37 |
5031754 |
TEE, Fuel |
| 38 |
5030569 |
UNION This part replaces 5031747. |
| 39 |
5030583 |
CLAMP |
