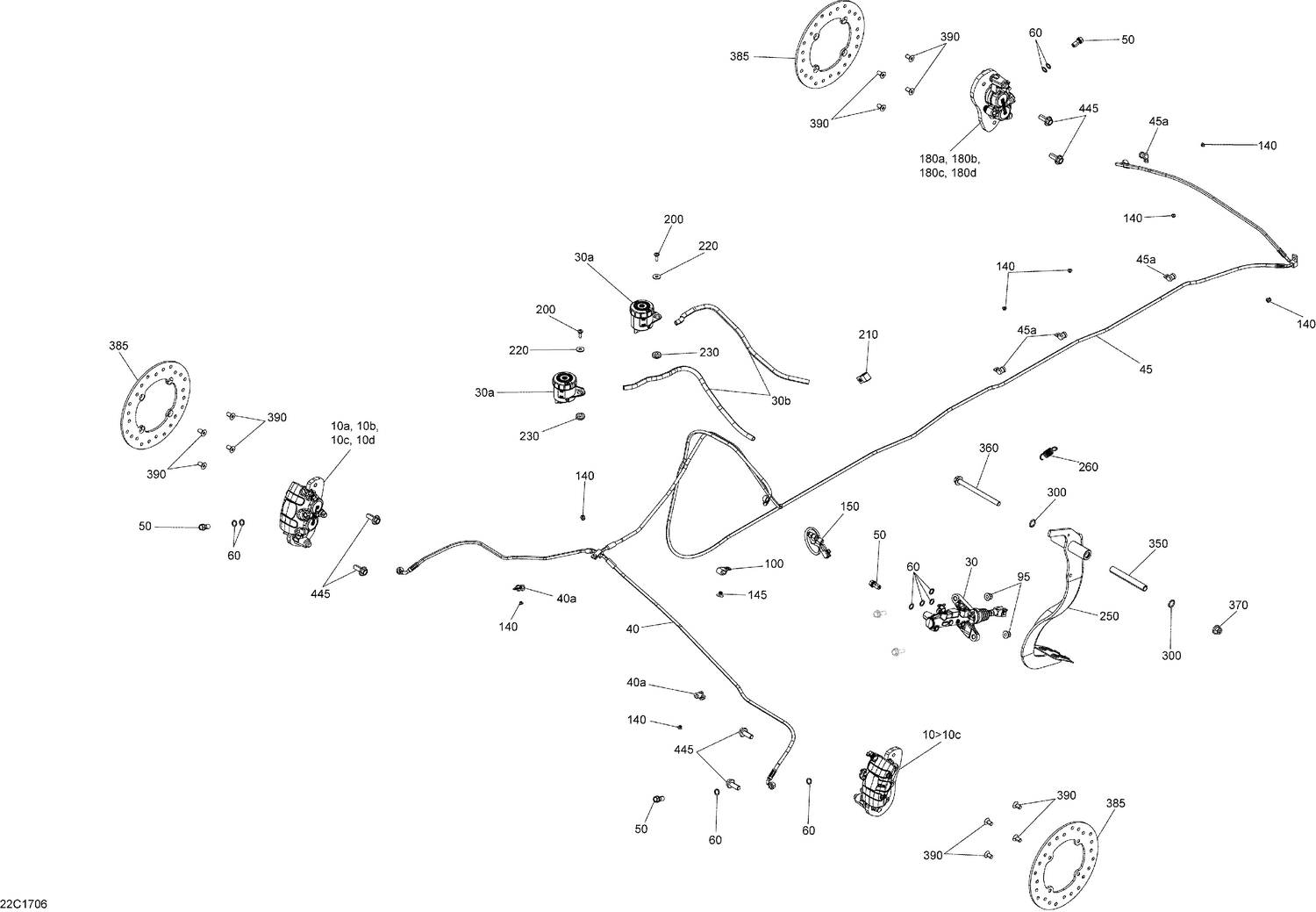

06- Brakes — Parts Catalog

Ref	Part Number	Description
10a	703501198	LH/RH Front Brake Pad Set This part replaces 715900379.
10a1	715900384	Pin Kit
10b	705601017	Bleeding Screw
10c	715900385	Cap Spring Kit
30a	705601020	Oil Tank
30b	705601019	Oil Housing Hose
40a	293650256	Clamp This part replaces 715900250.
45a	293650256	Clamp This part replaces 715900250.
50	705600609	Banjo Bolt (M10 x 1.25 thread)
60	705601628	Copper Washer This part replaces 705600310.
95	233281414	Hex. Flange Elastic Nut M8
100	293650220	Clamp
140	390402200	Pop Rivet 3/16"
145	293150104	Pop Rivet 3/16"
150	705601250	Brake Switch
180a	703501198	LH/RH Front Brake Pad Set This part replaces 715900380.
180a1	715900384	Pin Kit
180b	705601017	Bleeding Screw
180c	715900384	Pin Kit
180d	715900385	Cap Spring Kit
200	250000720	Torx Screw K50 X 16
210	515175507	Open Clamp
220	234062410	Flat Washer 6 mm
230	414036300	Grommet
250	705601777	Brake Pedal This part replaces 705601306.
260	705600792	Brake Pedal Spring
300	293300144	O-Ring
350	705601373	Inside Sleeve
360	230603046	Hex. Flange Screw, M10 X 130
370	233201436	Hex. Flange Elastic Nut M10
385	705601511	Brake Disc
390	235381646	Torx Screw M8 X 16, Scotch Grip
