| Ref | Part Number | Description |
|---|
| 4 |
0328686 |
SEAL, Engine cover This part replaces 0208171. |
| 5 |
0389971 |
LOCATING BARCKET, Front |
| 6 |
0394976 |
LOCATING BRACKET, Rear This part replaces 0389972. |
| 7 |
0306407 |
LOCCKWASHER,Cover latch |
| 8 |
0334853 |
SOUND BLANKET, Side This part replaces 0208954. |
| 9 |
0209445 |
SOUND BLANKET, Top This part replaces 0207742. |
| 10 |
0208579 |
APPLIQUE,Rear |
| 11 |
0323175 |
HOOK , Motor Cover, Front |
| 12 |
0208613 |
APPLIQUE, Port & starboard |
| 13 |
0208610 |
APPLIQUE,Front |
| 16 |
0208251 |
SEAL, Baffle to motor cover |
| 18 |
0206520 |
AIR INLET BAFFLE |
| 19 |
0314494 |
BAG EMERGENCY STARTER ROPE |
| 21 |
0208587 |
APPLIQUE |
| 21 |
0208588 |
APPLIQUE |
| 21 |
0208589 |
APPLIQUE |
| 21 |
0208590 |
APPLIQUE |
| 23 |
0325857 |
SCREW, Fuel connector |
| 24 |
0321885 |
NIPPLE |
| 25 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 26 |
0307151 |
SCREW |
| 27 |
0318849 |
CLAMP, Instrument cable |
| 28 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 29 |
0552062 |
SCREW, Clamp |
| 31 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 32 |
0303398 |
VIS, support This part replaces 0302030. |
| 34 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 35 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 36 |
0302406 |
SLEEVE |
| 37 |
0303398 |
VIS, support This part replaces 0302030. |
| 38 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0318313. |
| 39 |
0302288 |
BOLT |
| 40 |
0392494 |
FRAME AND SEAL ASSY This part replaces 0387443. |
| 41 |
0318258 |
SEAL Cover |
| 42 |
0328358 |
COVER ASSY. Air entrance This part replaces 0326251. |
| 43 |
0315111 |
SUPPORT, Front |
| 44 |
0315113 |
SUPORT, Stbd, rear |
| 45 |
0315112 |
SUPPORT, Port rear |
| 46 |
0328695 |
CLAMP, Engine cable This part replaces 0323480. |
| 48 |
0378347 |
CORDE DE LANCEUR |
| 49 |
0434288 |
ENGINE COVER, Lower This part replaces 0389591. |
| 51 |
0320834 |
GROMMET |
| 52 |
0323170 |
HOOK Front and stbd., rear |
| 54 |
0383641 |
LATCH HANDEL ASSY., Front |
| 55 |
0310539 |
SCREW, Clamp choke solenoid |
| 56 |
0323169 |
HOOK, Lower rear port |
| 57 |
0383685 |
LATCH HANDEL ASSY., Rear |
| 0281404 |
0281404 |

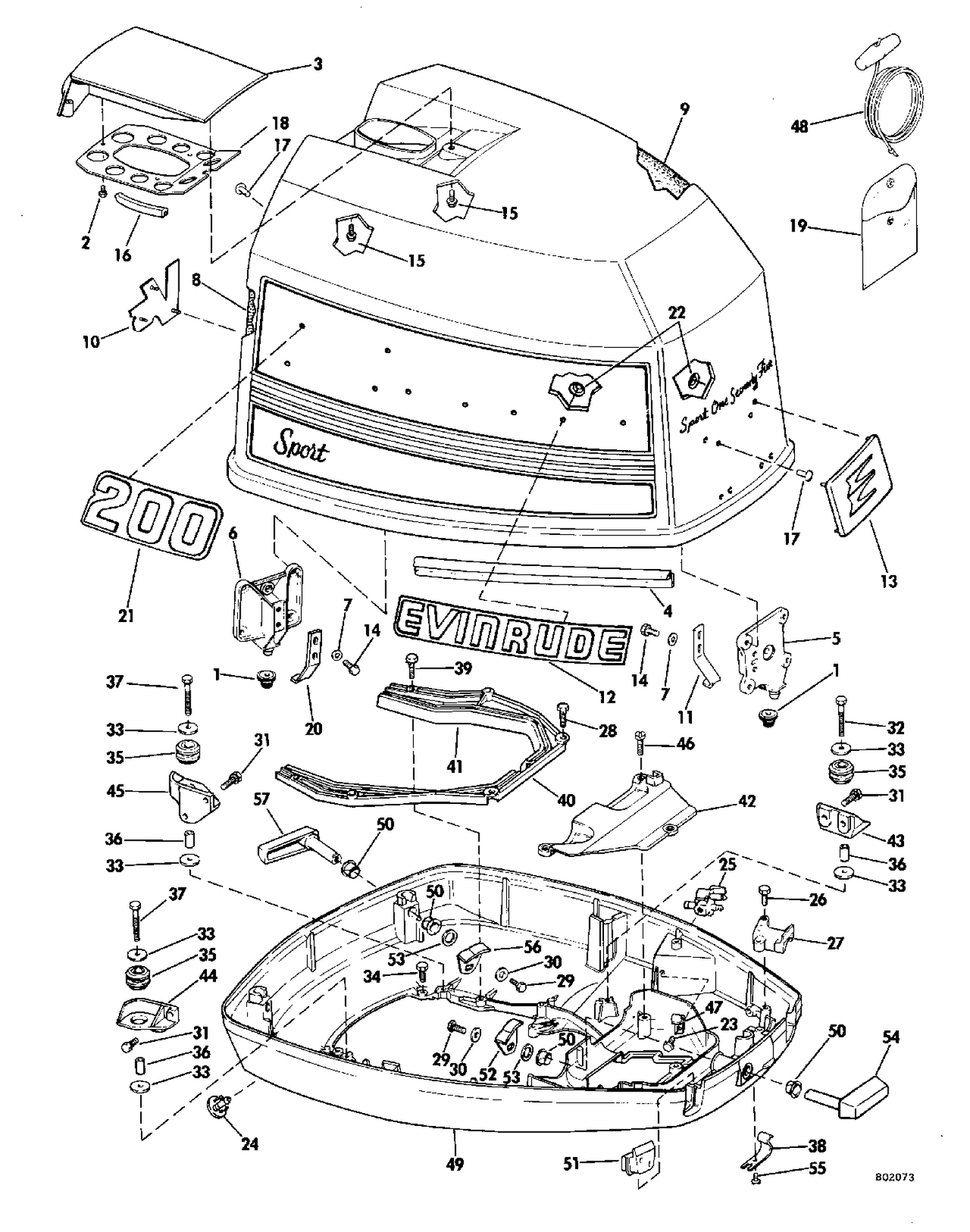

MOTOR COVER ASSY.,150 |
| 0281405 |
0281405 |
MOTOR COVER ASSY.,175 |
| 0281406 |
0281406 |
MOTOR COVER ASSY.,200 |
| 0281485 |
0281485 |
DECAL SET,Models with "R" suffix |
| 0281486 |
0281486 |
DECAL SET,Models with "A" suffix |
| 0281487 |
0281487 |
DECAL SET,Models with "M" suffix |
| 0281488 |
0281488 |
DECAL SET |
| 0281558 |
0281558 |
MOTOR COVER ASSY.,235 |
| 0281700 |
0281700 |
DECAL SET,Models with "F" suffix |
| 0281701 |
0281701 |
DECAL SET,Models with "F" suffix |
| 0281702 |
0281702 |
DECAL SET,Models with "F" suffix |
