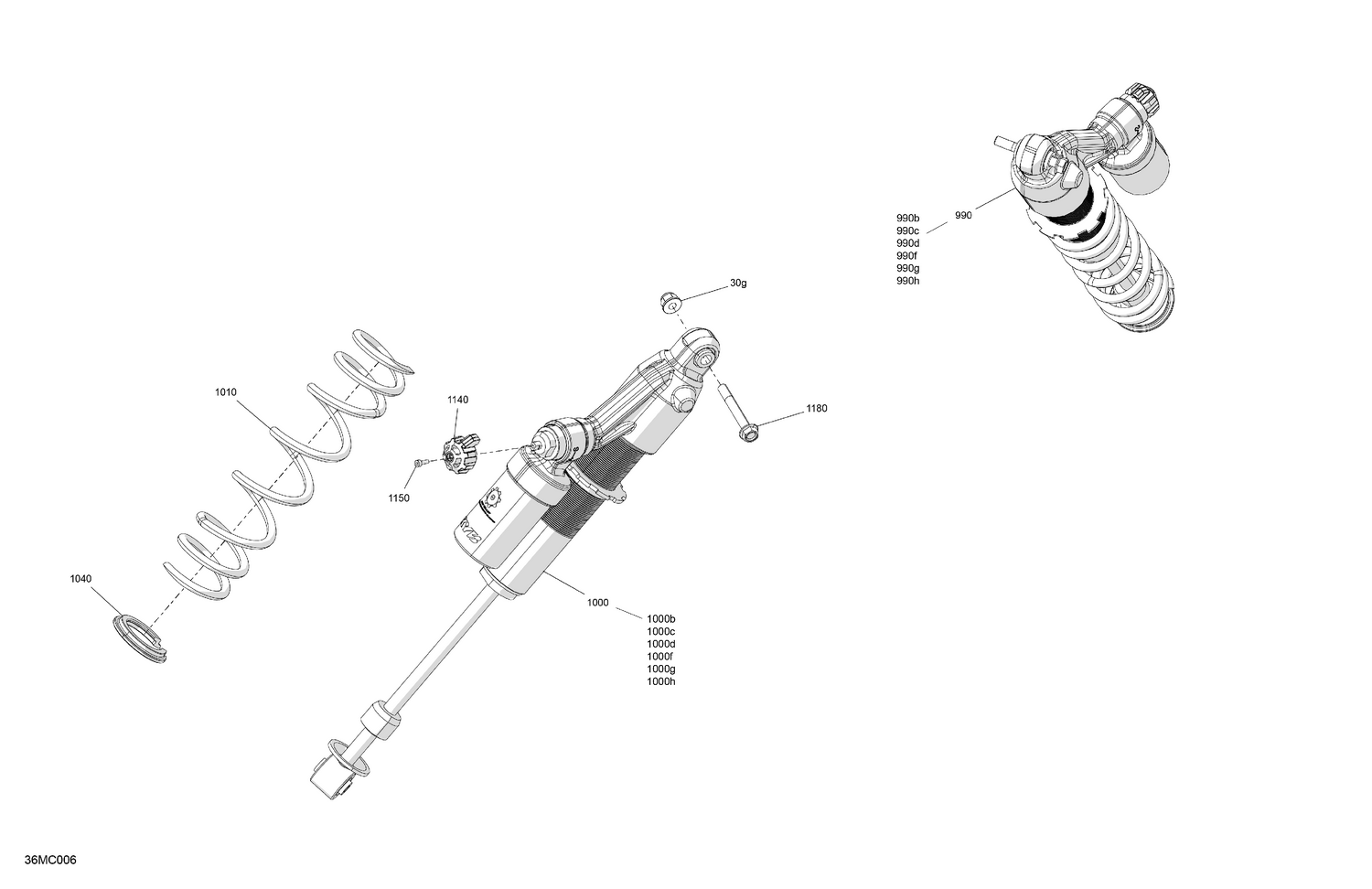

05- Suspension - Front Shock
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 990b | 415093807 | O-Ring |
| 990c | 415093806 | Piston Ring |
| 990d | 505070400 | O-Ring |
| 990f | 505070399 | Screw |
| 990g | 415093804 | O-Ring |
| 990h | 715900076 | Circlip - Call your local BRP dealership |
| 1000b | 415093807 | O-Ring |
| 1000c | 415093806 | Piston Ring |
| 1000d | 505070400 | O-Ring |
| 1000f | 505070399 | Screw |
| 1000g | 415093804 | O-Ring |
| 1000h | 715900076 | Circlip - Call your local BRP dealership |
| 1010 | 505074709 | Deep Black, Spring |
| 1040 | 503194270 | Spring Stopper |
| 1140 | 503196209 | Adjustment Button |
| 1150 | 250000644 | Allen Screw M3 X 0.5 X 10 |
| 1180 | 250000824 | Hex. Flange Screw M8 X 58 |
