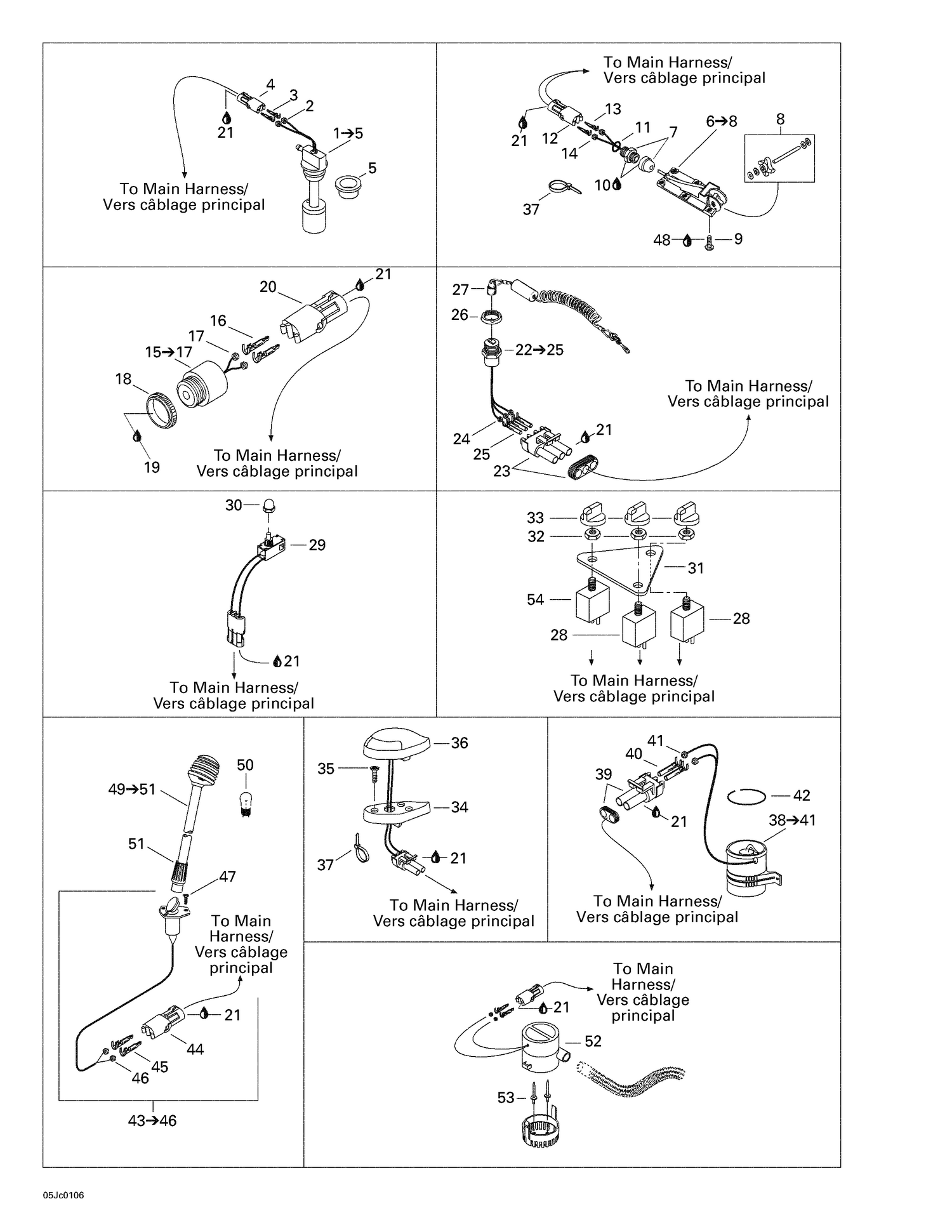

| Ref | Part Number | Description |
|---|
| 2 |
278000218 |
Wire Seal |
| 3 |
278000222 |
Male Terminal |
| 4 |
278000217 |
Female Housing, 2 Circuits |
| 5 |
293720008 |
Grommet |
| 7 |
293710031 |
ELECTRIC CONNECTION - Call your local BRP dealership |
| 8 |
295500108 |
Paddle Wheel Kit |
| 9 |
208551060 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 10 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 11 |
278000416 |
SEAL WASHER - Call your local BRP dealership |
| 12 |
278000217 |
Female Housing, 2 Circuits |
| 13 |
278000222 |
Male Terminal |
| 14 |
278000218 |
Wire Seal |
| 16 |
278000222 |
Male Terminal |
| 17 |
278000218 |
Wire Seal |
| 18 |
278000707 |
Buzzer Nut |
| 19 |
219704457 |
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership |
| 20 |
278000217 |
Female Housing, 2 Circuits |
| 21 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 23 |
278000273 |
Male Housing, 3 Circuits |
| 24 |
278000218 |
Wire Seal |
| 25 |
278000223 |
Female Terminal |
| 26 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 27 |
278002199 |
Safety Lanyard, Antitheft This part replaces 278001277. |
| 28 |
278000540 |
Fan Switch |
| 29 |
278000622 |
RH IGNITION SWITCH - Call your local BRP dealership |
| 30 |
278000565 |
IGNITION SWITCH CAP, RED - Call your local BRP dealership |
| 31 |
Not |
Available As Spare Part - Switch Insert |
| 32 |
278000647 |
Switch Nut |
| 33 |
278000542 |
SWITCH CAP - Call your local BRP dealership |
| 34 |
204470072 |
FRONT LAMP SUPPORT - Call your local BRP dealership |
| 35 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 36 |
204470311 |
Front Lamp |
| 37 |
293750001 |
Tie Wrap 94 mm |
| 39 |
278000220 |
Male Connector, 2 Circuits |
| 40 |
278000223 |
Female Terminal |
| 41 |
278000218 |
Wire Seal |
| 42 |
204000133 |
BROACH - Call your local BRP dealership |
| 44 |
278000217 |
Female Housing, 2 Circuits |
| 45 |
278000222 |
Male Terminal |
| 46 |
278000218 |
Wire Seal |
| 47 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 48 |
293800060 |
Loctite 243, 10 ml |
| 50 |
204470053 |
Bulb |
| 51 |
204470350 |
COLLAR - Call your local BRP dealership |
| 52 |
204471431 |
Bilge Pump |
| 53 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
