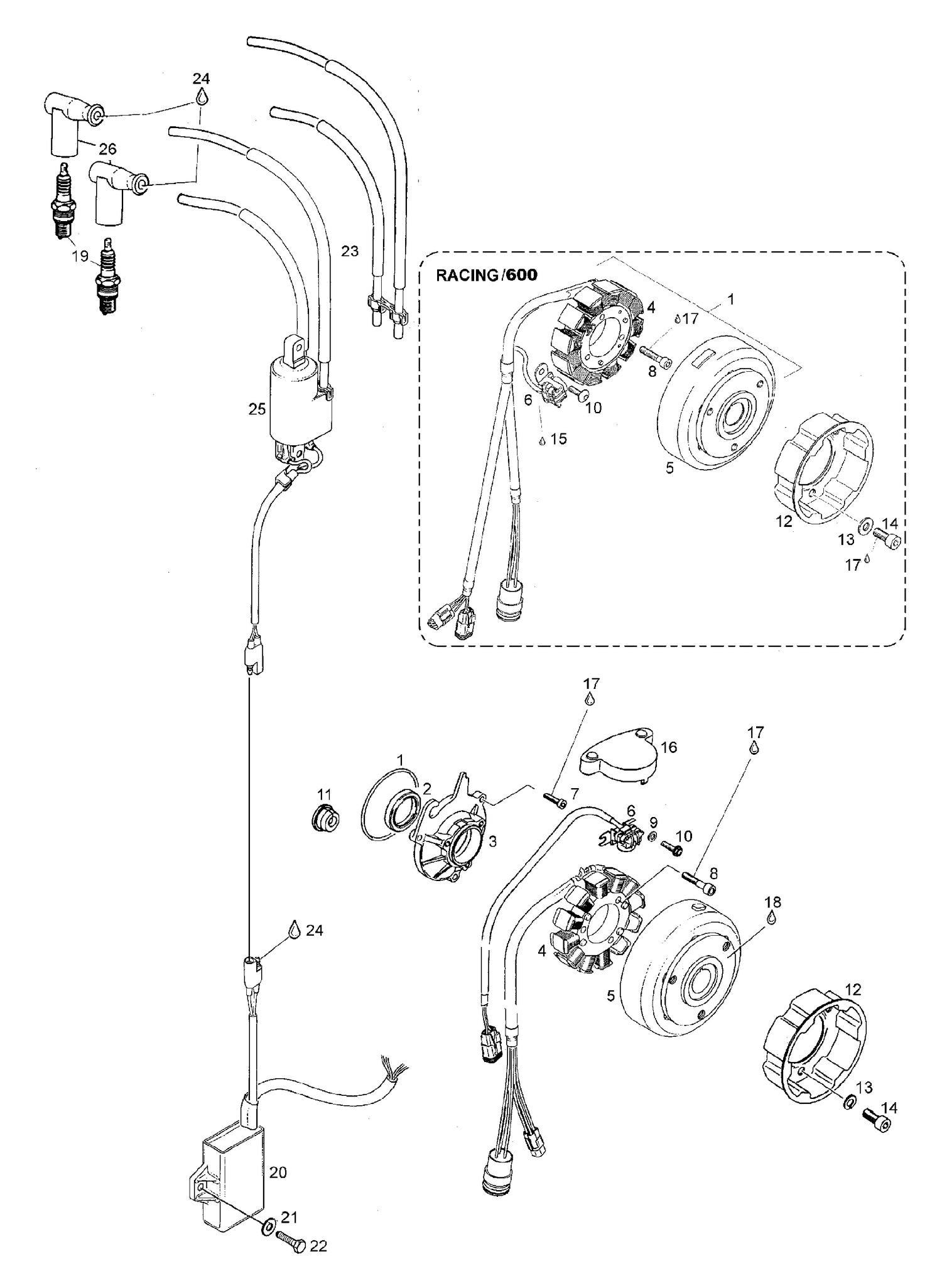

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - O-ring - DOES NOT APPLY TO THIS MODEL |
| 2 |
Not |
Available As Spare Part - Oil-seal - DOES NOT APPLY TO THIS MODEL |
| 3 |
Not |
Available As Spare Part - Stator plate - DOES NOT APPLY TO THIS MODEL |
| 4 |
420888613 |
Stator assy |
| 5 |
420888624 |
Magneto flywheel |
| 6 |
420966830 |
Pick up assy |
| 7 |
Not |
Available As Spare Part - Allen screw M5x20 - DOES NOT APPLY TO THIS MODEL |
| 8 |
205063044 |
Allen screw M6x30 This part replaces 420840880. |
| 9 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 10 |
420640324 |
Torx Screw M6 X 16 This part replaces 420640321. |
| 11 |
420860965 |
Cable grommet |
| 12 |
420852590 |
Starter cup This part replaces 420852419. |
| 13 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 14 |
420841520 |
Allenscrew M8x12 |
| 15 |
420297710 |
PU-glue, 310ml |
| 16 |
Not |
Available As Spare Part - Pick up cover - DOES NOT APPLY TO THIS MODEL |
| 17 |
293800060 |
Loctite 243, 10 ml This part replaces 420899785. |
| 18 |
Not |
Available As Spare Part - Loctite 648/green - DOES NOT APPLY TO THIS MODEL |
| 19 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 20 |
5345520 |
Amplifier |
| 21 |
20003 |
Washer |
| 22 |
40030 |
Screw M6x20 |
| 23 |
Not |
Available As Spare Part - Spark plug cable - DOES NOT APPLY TO THIS MODEL |
| 24 |
420897330 |
Lithium-grease |
| 25 |
512059073 |
Ignition coil |
