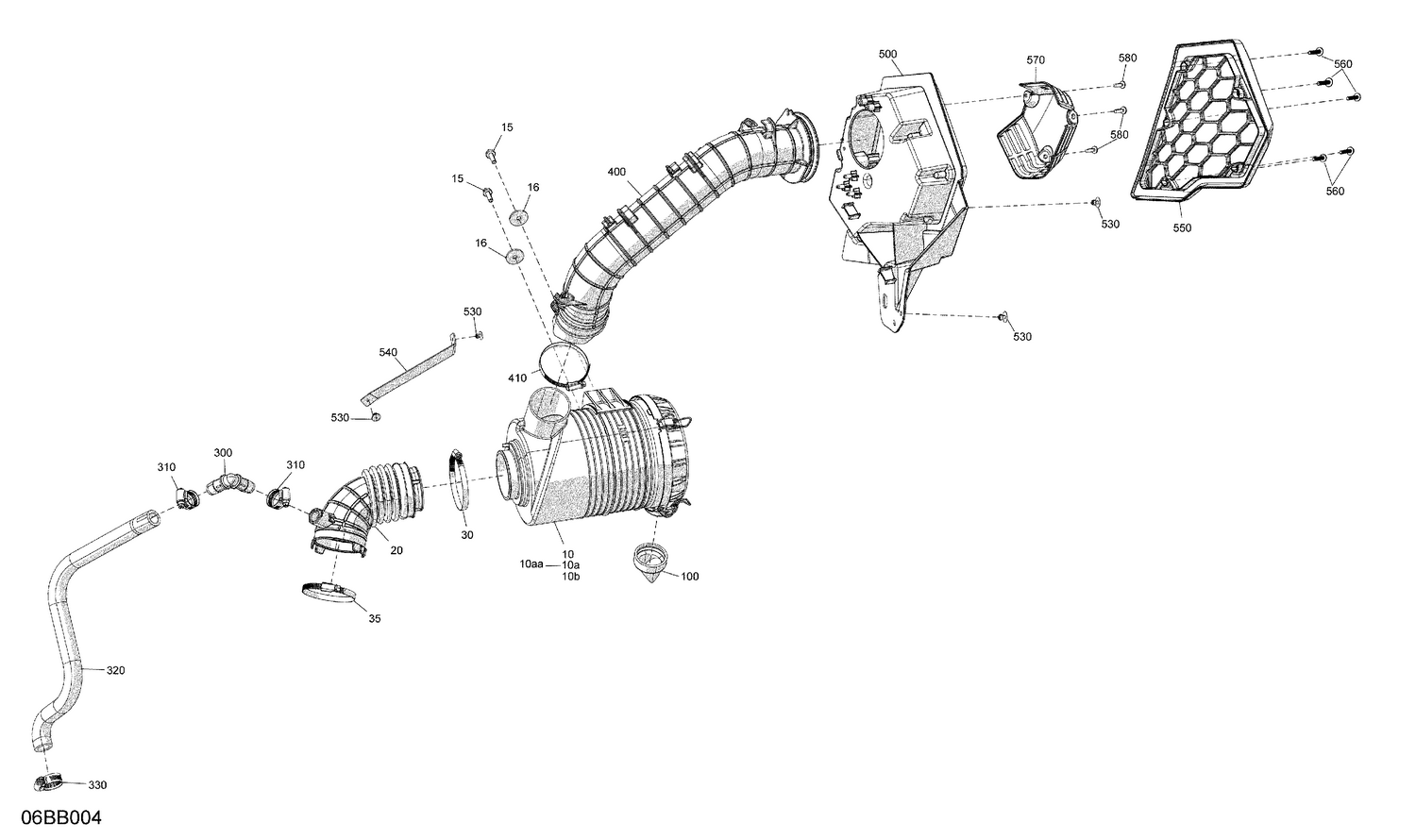

02- Engine - Air Intake
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900515 | Silencer Air Cover Ass'y |
| 10b | 715900394 | Air Filter |
| 15 | 207682544 | Hex. Flange Screw M8 X 25 |
| 16 | 250200158 | Flat Washer M8 |
| 20 | 707800715 | Air Intake Adapter |
| 30 | 293650096 | Norma Clamp |
| 35 | 293650091 | Norma Clamp |
| 100 | 715003114 | Duct Bill Valve |
| 300 | 293710155 | Elbow Fitting 90 |
| 310 | 293650173 | Tridon Gear Clamp |
| 320 | 707800716 | Blow-By Hose |
| 330 | 293650173 | Tridon Gear Clamp |
| 400 | 707800717 | Inlet Hose |
| 410 | 293650091 | Norma Clamp |
| 500 | 707800865 | Air Intake Box |
| 530 | 293150104 | Pop Rivet 3/16" |
| 540 | 707800784 | Support |
| 550 | 707800751 | Air Intake Grid |
| 560 | 250000980 | Hex. Screw Pt K60 X 25 |
| 570 | 707800762 | Baffle |
