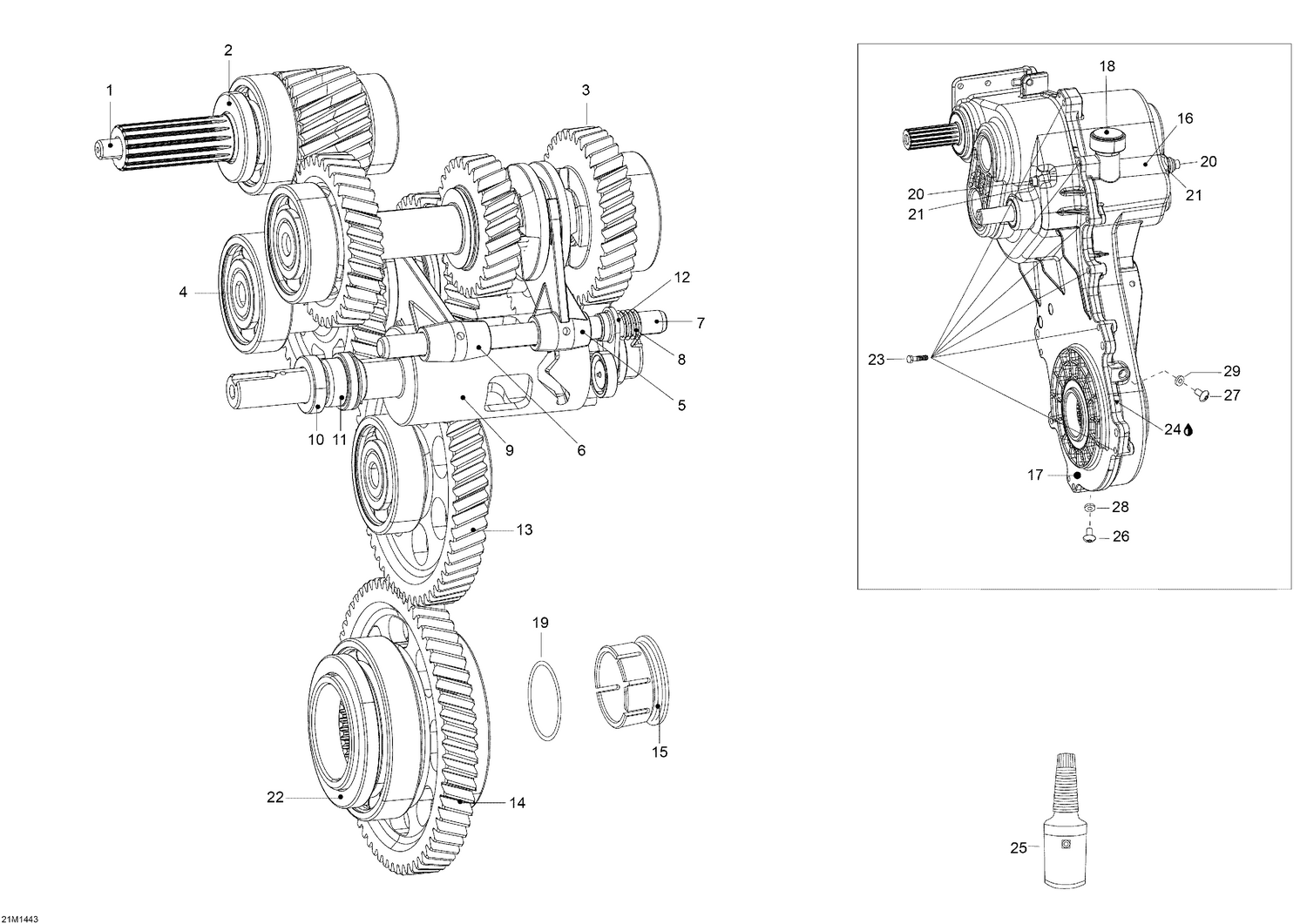

05- Transmission
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 619230044 | Counter Shaft Ass'y |
| 2 | 619230010 | Oil seal |
| 3 | 619230054 | Main Shaft Ass'y This part replaces 619230050. |
| 4 | 619230073 | Reverse Shaft Ass'y (Slow Ratio) This part replaces 619230046. |
| 5 | 619230055 | Fork, Forwards This part replaces 619230014. |
| 6 | 619230015 | Fork, reverse |
| 7 | 619230016 | Shaft |
| 8 | 619230017 | Spring |
| 9 | 619230056 | Shifting Drum This part replaces 619230018. |
| 10 | 619230019 | Oil seal |
| 11 | 619230020 | Bushing |
| 12 | 619230021 | Locking lever |
| 13 | 619230022 | Middle gear |
| 14 | 619230023 | Lower gear |
| 15 | 504152821 | Magnetic Cap |
| 16 | 504153477 | Gearbox Cover Rh This part replaces 504153194. |
| 17 | 504153475 | Gearbox Casing This part replaces 504153192. |
| 18 | 619230027 | Oil Plug |
| 19 | 619230028 | O-Ring |
| 20 | 619230029 | Screw - Call your local BRP dealership |
| 21 | 619230030 | Washer |
| 22 | 619230031 | Oil seal |
| 23 | 619230033 | SCREW M6 X 20 - Call your local BRP dealership |
| 24 | 420297907 | Sealing Compound Loctite 5366 310Ml This part replaces 420297906. |
| 25 | 293600140 | SYNTHETIC OIL 75W-140 - Call your local BRP dealership |
| 26 | 619230037 | Allen Screw M8 x 10 |
| 27 | 619230038 | Allen Screw M10 x 16 |
| 28 | 615580812 | Gasket-ring - Call your local BRP dealership |
