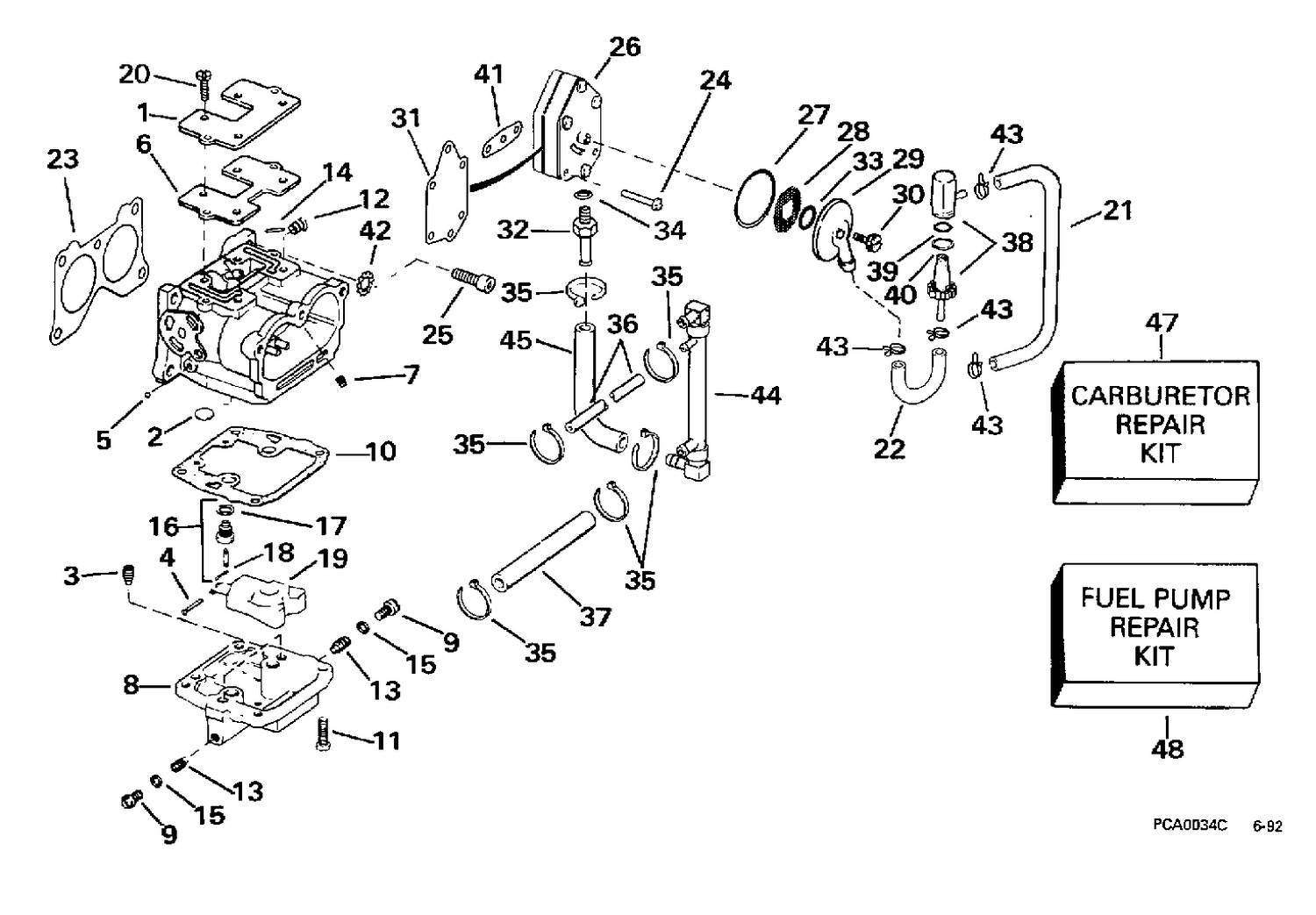

| Ref | Part Number | Description |
|---|
| 1 |
0334352 |
COVER, Idle channel |
| 3 |
0324652 |
ORIFICE No.26 200TX only |
| 6 |
0334353 |
GASKET, Cover |
| 8 |
0392376 |
FLOAT CHAMBER ASSY. |
| 9 |
0330131 |
CLAMP, Fuel filter |
| 10 |
0338884 |
GASKET, Float bowl |
| 13 |
0321449 |
ORIFICE PLUG 175 ONLY, No. 60c |
| 18 |
0336842 |
CLIP, SPRING |
| 19 |
0383437 |
FLOAT ASSEMBLY |
| 20 |
0333750 |
SCREW, Cover |
| 22 |
0334131 |
FLEXIBLE, impulsions |
| 23 |
0327707 |
GASKET, Air silencer |
| 25 |
0203023 |
SCREW, Bracket to upper carb. |
| 26 |
0438556 |
FUEL PUMP ASSY. |
| 35 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 36 |
HOSE, |
Manifold to primer, 13 in. (330mm) |
| 37 |
HOSE, |
Carb. to manifold, 4 1/2 in. (114mm) |
| 38 |
0398541 |
CARBURETOR REPAIR KIT |
| 41 |
0303615 |
GASKET |
| 43 |
0339278 |
COLLIER DE SERRAGE |
| 44 |
0390465 |
FUEL MANIFOLD ASSY. |
| 45 |
0333407 |
FLEXIBLE, filtre à carburant vers pompe à carburant |
| 47 |
0434888 |
CARBURETOR REPAIR KIT |
| 0437208 |
0437208 |
CARBURETOR ASSY. |
