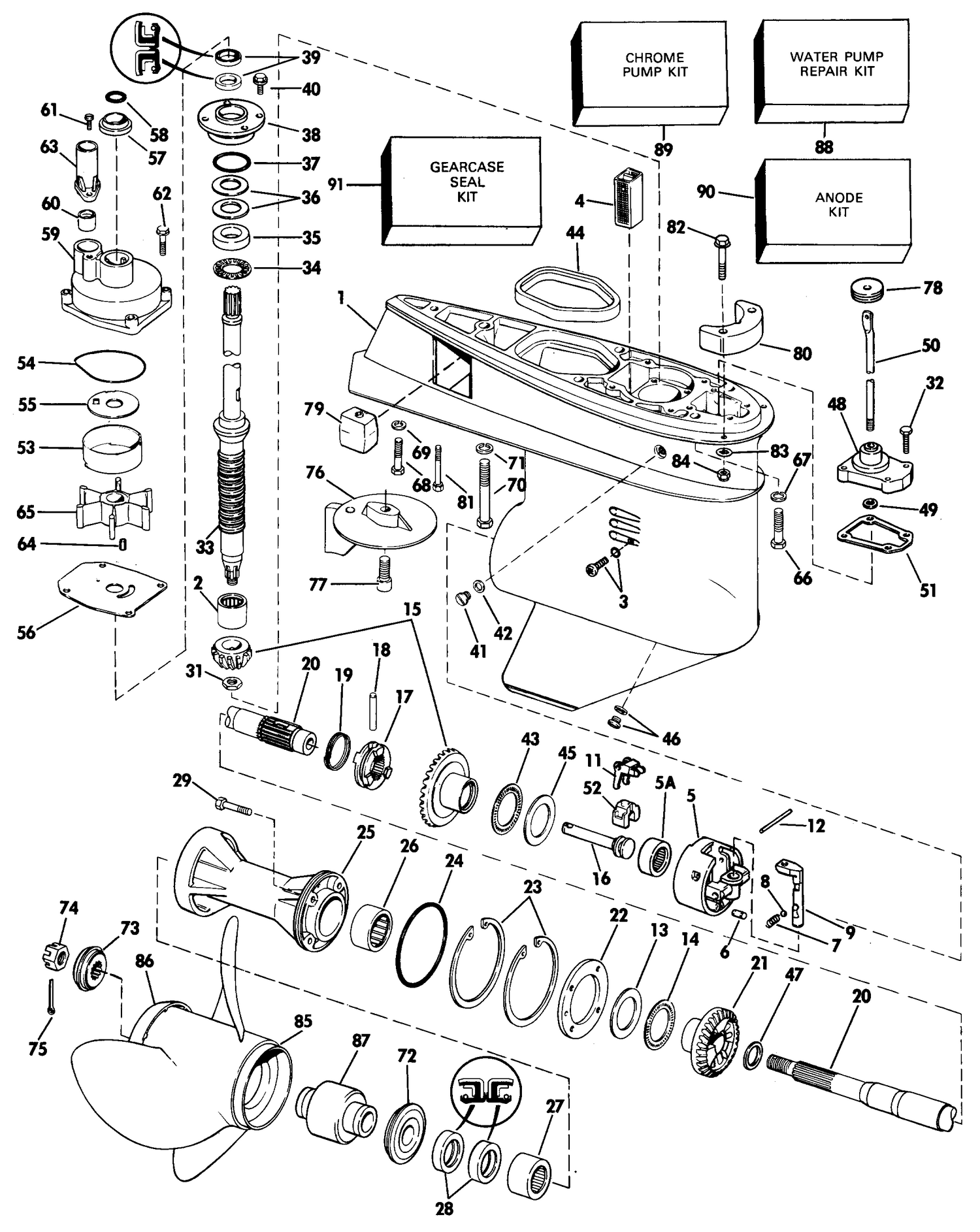

| Ref | Part Number | Description |
|---|
| 1 |
5009348 |
Grcse&Brg Prime This part replaces 0392478. |
| 33 |
0391378 |
DRIVESHAFT ASSY |
| 37 |
0313754 |
O RING |
| 53 |
0324980 |
LINDER, Impeller housing |
| 55 |
0321940 |
PLATE |
| 59 |
0432955 |
WATER PUMP REPAIR KIT (includes impeller housing) This part replaces 0391049. |
| 64 |
0323950 |
KEY, Drive shaft to impeller |
| 67 |
0307708 |
RONDELLE GROWER |
| 68 |
0306503 |
SCREW, Short |
| 70 |
0313697 |
SCR,Grc to hsg.long |
| 71 |
0306314 |
L'WASHER,Scr,long |
| 76 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0327810. |
| 77 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 78 |
0321452 |
GROMMET |
| 79 |
0327482 |
BLOCK, Gearcase |
| 81 |
0322000 |
SCREW, Starter to crankcase |
| 85 |
0382761 |
PROPELLER ,14 x 11 |
| 85 |
0383160 |
PROPELLER 14 X 19 |
| 85 |
0389510 |
PROPELLER, 13 * 19 SST |
| 85 |
0389512 |
PRO, 12-3/4 x 21 sst cupped |
| 85 |
0389514 |
PROPELLER 12-3/4 x 23 - SST |
| 85 |
0389788 |
PROPELLER, 12 3/4 x 21 |
| 85 |
0389792 |
PROPELLER 14 x 11 -SST |
| 85 |
0389948 |
PROPELLER, 12-3/4 x 17 - SST |
| 85 |
0389949 |
PROPELLER, 12 3/4 X 15-SST |
| 85 |
0390750 |
PROP., 13 1/2 x 23 - SST-SS |
| 85 |
0390896 |
PROPELLER, 13 * 19 AL. |
| 85 |
0392261 |
PROPELLER 13 3/4 X 13 - SST |
| 85 |
0765181 |
PROPELLER This part replaces 0391668. |
| 85 |
0765182 |
PROPELLER - W Models This part replaces 0391198. |
| 85 |
0765183 |
PROPELLER, WDEL Models This part replaces 0391199. |
| 88 |
0391634 |
WATER PUMP REAIR KIT, ( includes imeller hsg) |
| 88 |
0396726 |
WATER PUMP REPAIR KIT This part replaces 0390769. |
| 89 |
0389145 |
CHROME CUP & PLATE KIT |
| 90 |
0392461 |
ANODE KIT |
| 0307853 |
0307853 |
O RING |
| 0393138 |
0396730 |
GEARCASE ASSY. This part replaces 0393138. |
