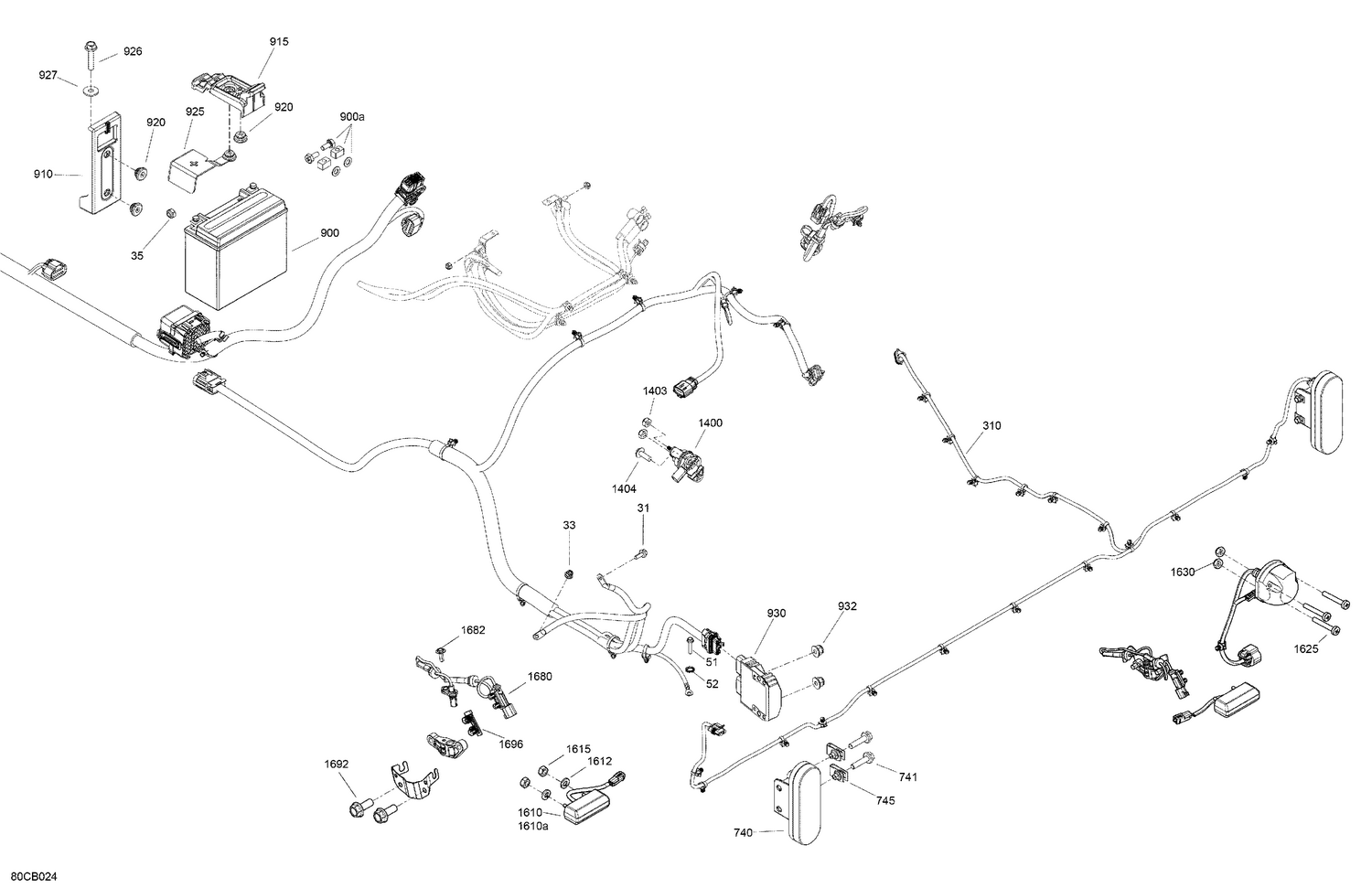

08- Electric - Rear Section
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 31 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 33 | 232561200 | Brass Elastic Stop Nut M6 |
| 35 | 232561200 | Brass Elastic Stop Nut M6 |
| 51 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 52 | 234461608 | External Serrated Lock Washer 6 mm |
| 310 | 710006748 | Taillight Wiring Harness |
| 740 | 710004257 | Tail Light |
| 741 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 745 | 250100198 | Panel Nut M6 X 1.0 |
| 900a | 515176081 | Battery Bolt Kit |
| 910 | 710004788 | Fixation Plate |
| 915 | 710004789 | Fixation Plate |
| 920 | 705014429 | Rubber Stopper |
| 925 | 710006471 | Battery Cable Cap |
| 926 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 927 | 234062410 | Flat Washer 6 mm |
| 930 | 710005842 | Voltage Regulator |
| 932 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1400 | 278003012 | Starter Relay |
| 1403 | 232561200 | Brass Elastic Stop Nut M6 |
| 1404 | 243141630 | Hex. Plastic Screw M4.8 X 16 |
| 1610 | 710002055 | License Light |
| 1610a | 219800128 | Bulb |
| 1612 | 234161601 | Lock Washer Helical M6 |
| 1615 | 232061600 | Hex. Nut M6 |
| 1625 | 208653560 | Phillips Screw M5 X 35 |
| 1630 | 233251434 | Flange Elastic Nut M5 |
| 1680 | 710006981 | Speed Sensor |
| 1682 | 250000959 | Screw PT Type K-50 X 16 |
| 1692 | 207582054 | Hex Screw Washer Head M8 X 20 |
