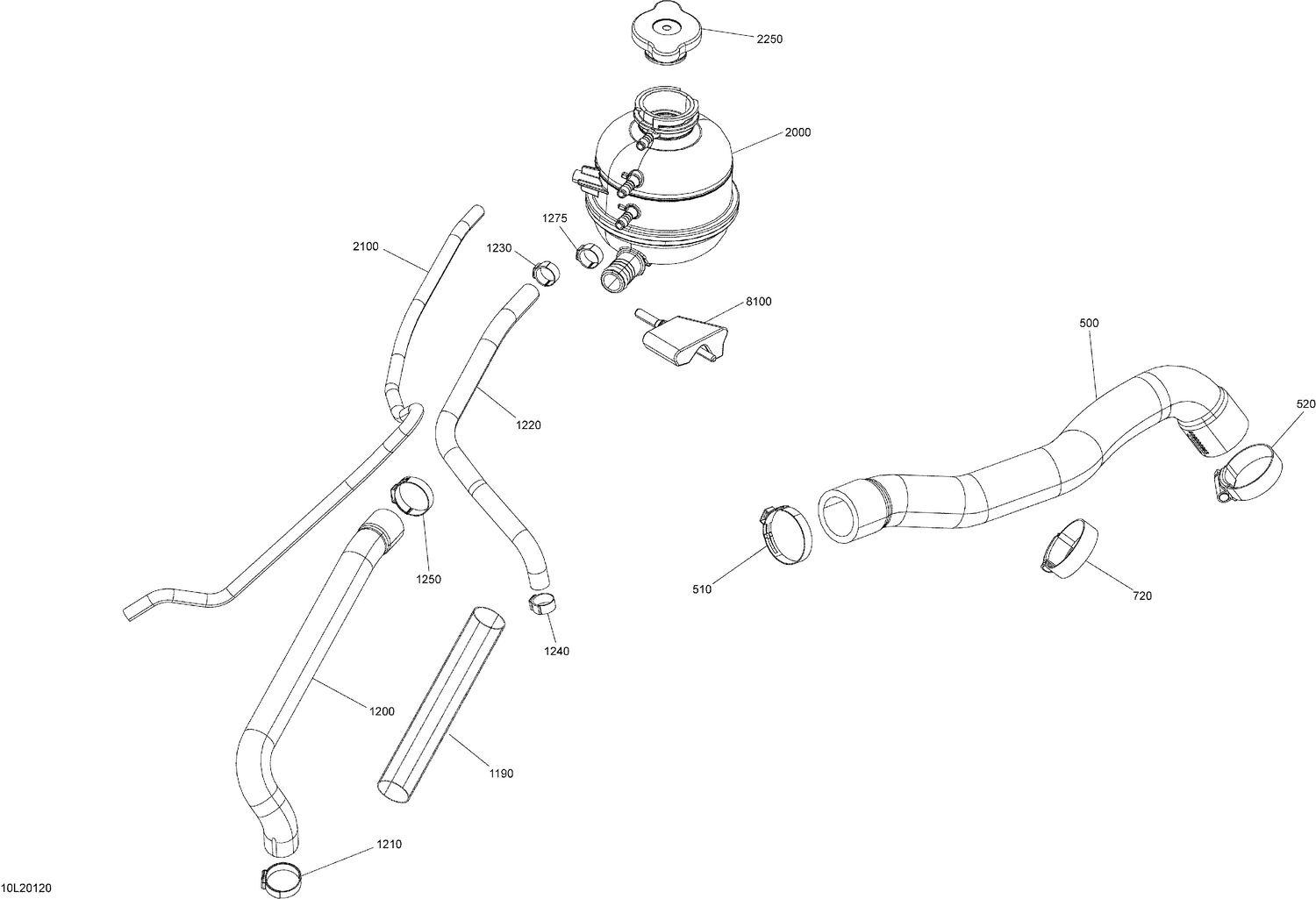

03- Cooling - System - Without Front Radiator
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 520 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 720 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 1190 | 509000513 | Protector Tube 32 mm |
| 1210 | 509000442 | Oeticker Gear Clamp, 25.6-706R |
| 1230 | 293650046 | Oetiker Clamp |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 2010 | 516009935 | Warning Decal, Hot liquid |
| 2100 | 276000048 | Hose 6 mm |
| 2250 | 509000180 | Radiator Pressure Cap |
