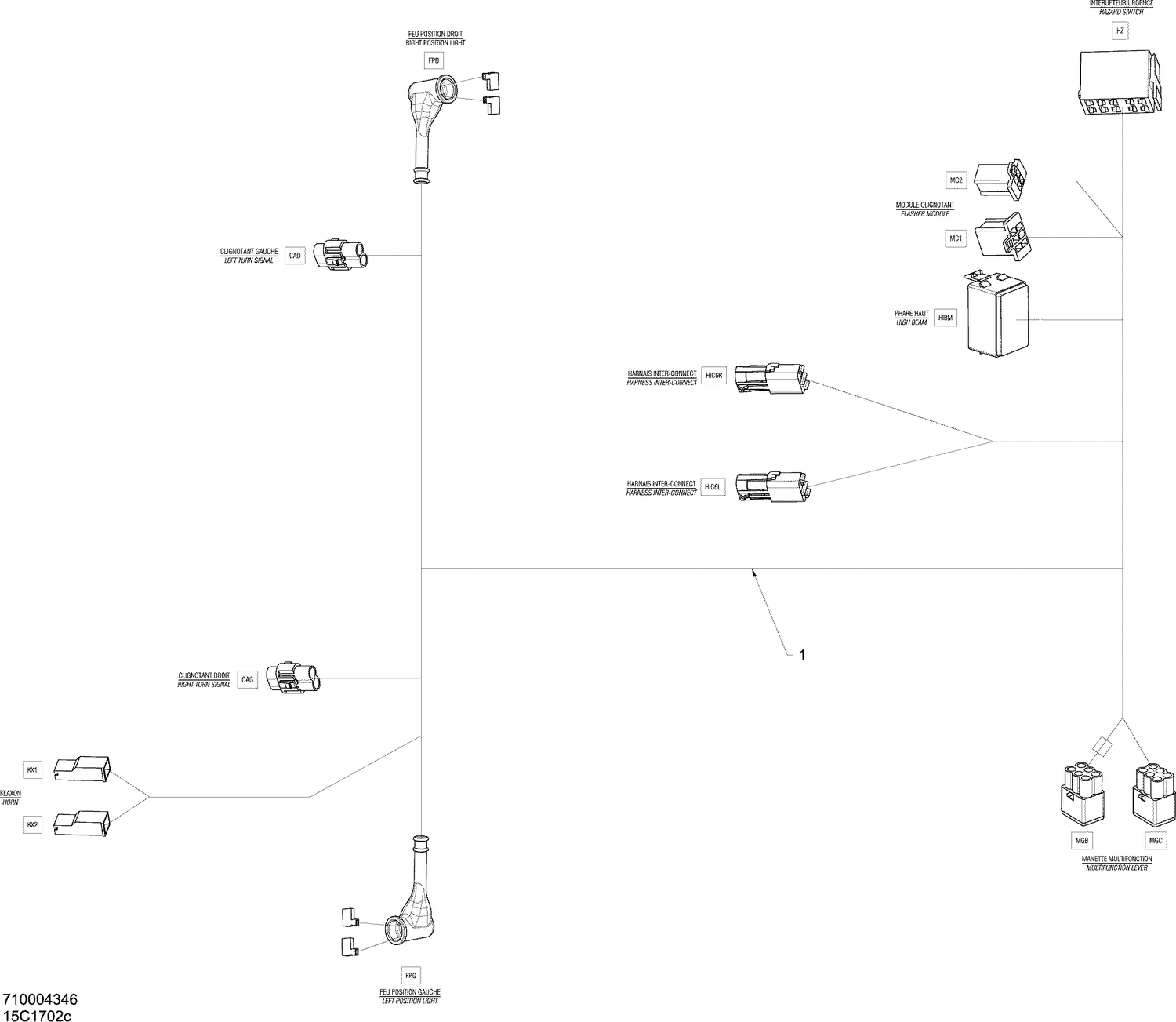

| Ref | Part Number | Description |
|---|
| CAD |
409012100 |
Female Terminal |
| CAD |
409012300 |
Seal |
| CAG |
409012100 |
Female Terminal |
| CAG |
409012300 |
Seal |
| D3 |
409012700 |
Diode |
| D4 |
409012700 |
Diode |
| FPD1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| FPD1 |
409010300 |
Female Terminal |
| FPD1 |
710003269 |
Cap Protector |
| FPD2 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| FPD2 |
409010300 |
Female Terminal |
| FPG1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| FPG1 |
409010300 |
Female Terminal |
| FPG1 |
710003269 |
Cap Protector |
| FPG2 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| FPG2 |
409010300 |
Female Terminal |
| HIBM |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| HIBM |
710002863 |
Terminal |
| HIC6L |
278000217 |
Female Housing, 2 Circuits |
| HIC6L |
278000222 |
Male Terminal |
| HIC6L |
278001065 |
Wire Seal This part replaces 278000585. |
| HIC6L |
710001038 |
Clip |
| HIC6R |
278000217 |
Female Housing, 2 Circuits |
| HIC6R |
278000222 |
Male Terminal |
| HIC6R |
278001065 |
Wire Seal This part replaces 278000585. |
| HIC6R |
409210100 |
Clip Bracket Connector (edge) |
| HZ |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| HZ |
710001931 |
Terminal |
| HZ |
710002000 |
Housing |
| KX1 |
219704448 |
SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| KX1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| KX1 |
409010100 |
Female Terminal |
| KX1 |
409010400 |
Female Terminal Housing, 1 Circuit |
| KX2 |
219704448 |
SHRINK TUBING 500MM LONG - Call your local BRP dealership |
| KX2 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| KX2 |
409010100 |
Female Terminal |
| KX2 |
409010400 |
Female Terminal Housing, 1 Circuit |
| MC1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| MC1 |
710002314 |
Housing |
| MC1 |
710002315 |
Terminal |
| MC2 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| MC2 |
710002313 |
Housing |
| MC2 |
710002315 |
Terminal |
| MGB |
409012100 |
Female Terminal |
| MGB |
409012300 |
Seal |
| MGB |
710000080 |
Cap |
| MGB |
710000081 |
Female Housing, 6 Circuits |
| MGC |
409012300 |
Seal |
| MGC |
710000080 |
Cap |
| MGC |
710000081 |
Female Housing, 6 Circuits |
