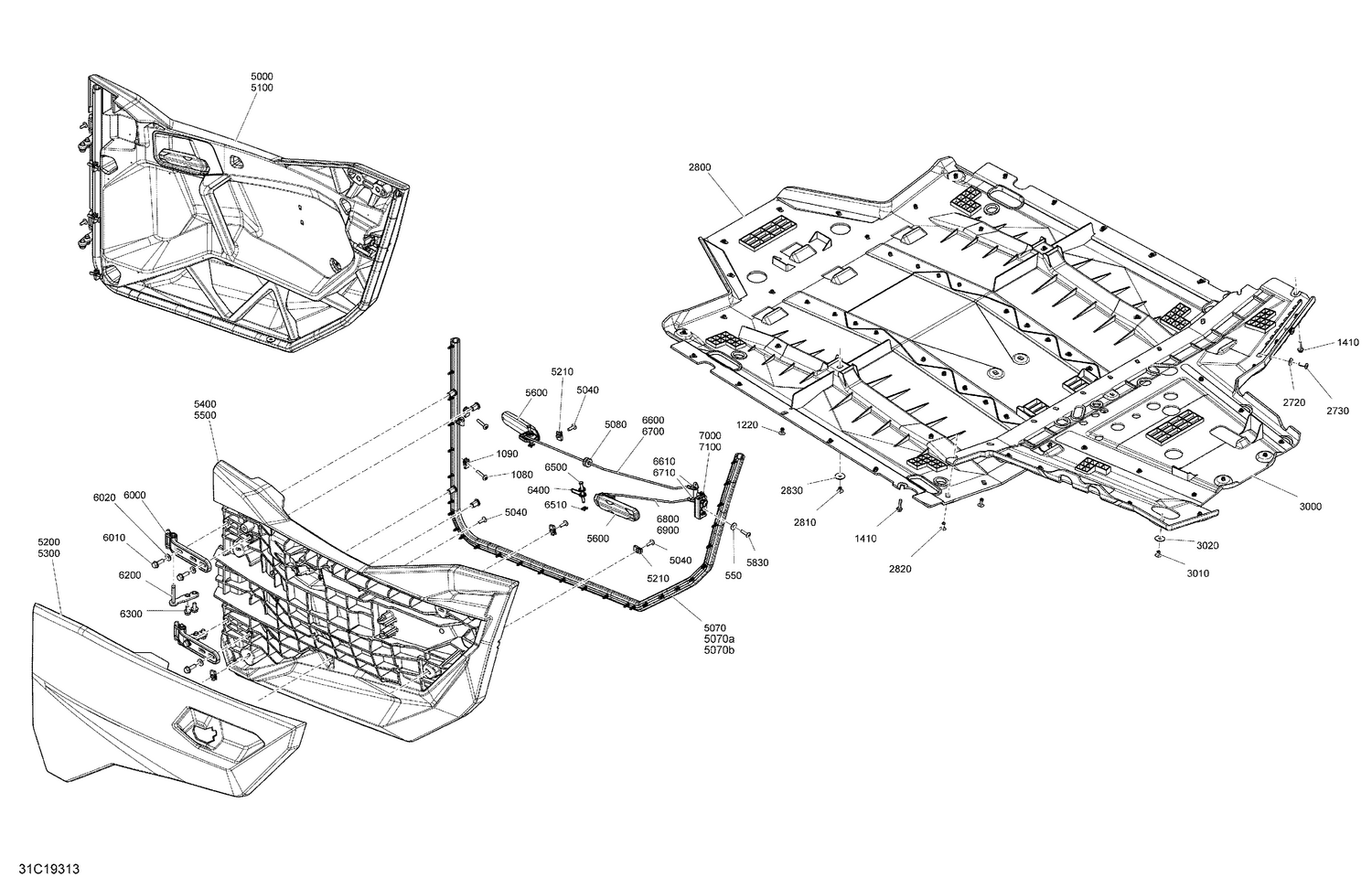

09- Body - Package XMR Doors and Skid Plate
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 550 | 234062670 | Stainless Steel Flat Washer |
| 1080 | 250000867 | Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1090 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1220 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 1410 | 207662054 | Hex. Flange Screw M6 X 20 |
| 2720 | 234062670 | Stainless Steel Flat Washer |
| 2730 | 250000722 | Torx Screw M6 X 20 |
| 2800 | 703501097 | Kit Plate_Skid F This part replaces 705011427. |
| 2810 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 2820 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 2830 | 224060251 | Washer |
| 3000 | 705014697 | Rear Skid Plate This part replaces 705011429. |
| 3010 | 293150087 | Pop Rivet 3/16” This part replaces 293150087. |
| 3020 | 224060251 | Washer |
| 5000 | 705012982 | LH Front Door Panel |
| 5040 | 250000722 | Torx Screw M6 X 20 |
| 5070a | 293730081 | Natural Color, Dart |
| 5070b | 293730082 | Red, Dart |
| 5080 | 293720104 | Grommet |
| 5100 | 705012983 | RH Front Door Panel |
| 5200 | 705013442 | Sunburst Yellow, LH Door Trim Panel |
| 5210 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5300 | 705013443 | Sunburst Yellow, RH Fr. Door Trim Panel |
| 5400 | 715005003 | LH Inner Door Panel Ass'y |
| 5500 | 715006765 | RH Door Panel Ass'y This part replaces 715005004. |
| 5600 | 705017152 | Door Handle This part replaces 705012986. |
| 5830 | 250000807 | Torx Truss Screw M6 X 25 |
| 6000 | 705013228 | Hinge |
| 6010 | 207582586 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 6020 | 503192494 | Washer |
| 6200 | 705012506 | Upper Hinge Ajustement |
| 6300 | 250001033 | Hex. Flange Screw DIN.6921 S.Grip |
| 6400 | 705013062 | Handle Spring |
| 6500 | 705207440 | Handle Axle |
| 6510 | 705601875 | External Retaining Ring This part replaces 705601721. |
| 6600 | 705207146 | LH Upper Locking Rod |
| 6610 | 708300202 | RH Tie Rod Clip |
| 6700 | 705207147 | RH Upper Locking Rod |
| 6710 | 708300182 | LH Tie Rod Clip |
| 6800 | 705207150 | LH Lower Locking Rod |
| 6900 | 705207151 | RH Lower Locking Rod |
| 7000 | 705013095 | LH Latch |
