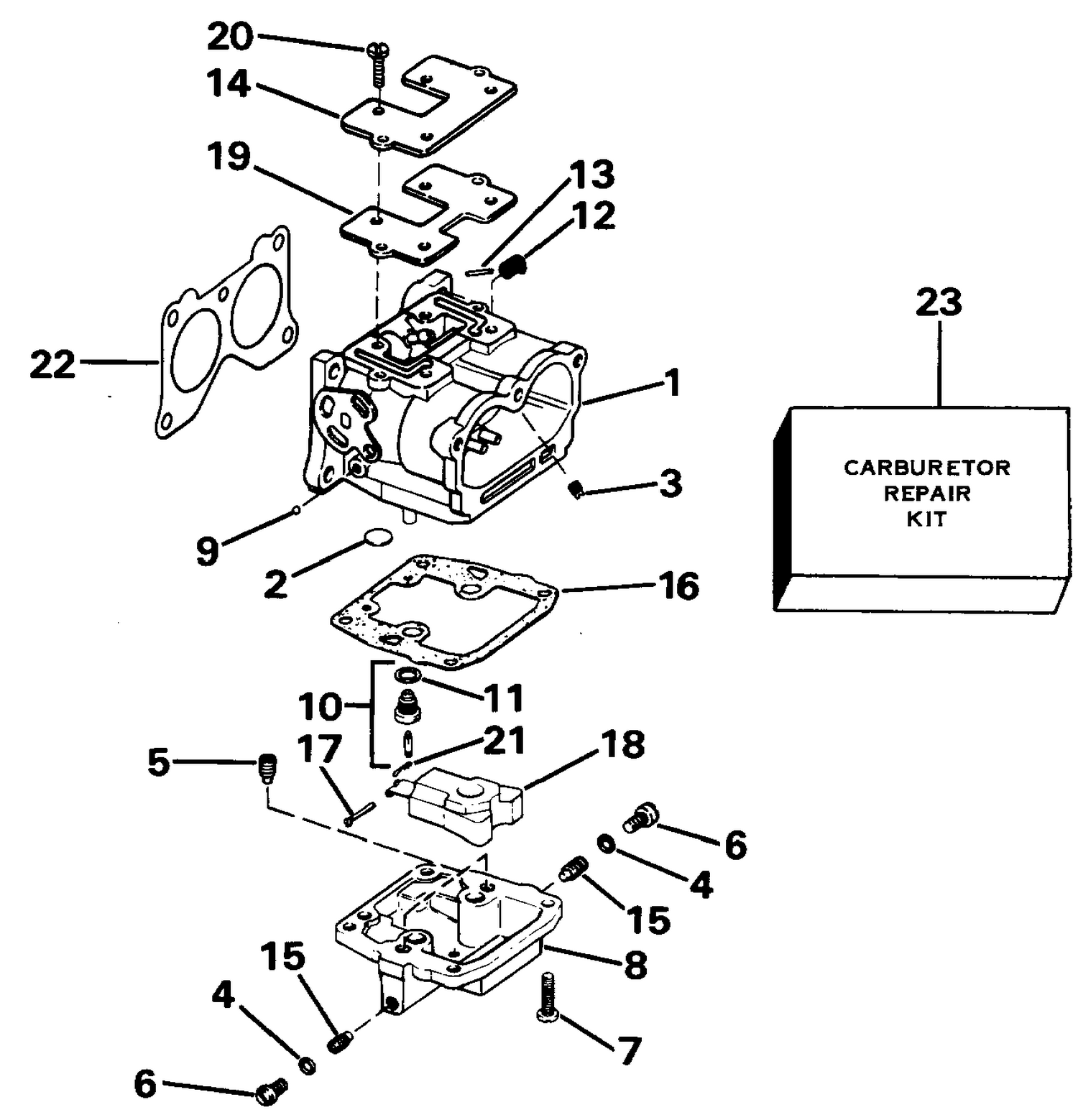

| Ref | Part Number | Description |
|---|
| 1 |
0398560 |
CARB ASSY,. 150 |
| 1 |
0432119 |
CARB ASSY., 175, middle & lower This part replaces 0398565. |
| 1 |
0432120 |
CARB ASSY., 175, Upper This part replaces 0431989. |
| 5 |
0333461 |
ORIFICE, 150 No. 29 |
| 5 |
0333464 |
ORIFICE, 175 No. 36 |
| 8 |
0398544 |
FLOAT CHAMBER ASSY. |
| 11 |
0301966 |
WASHER |
| 14 |
0334352 |
COVER, Idle channel This part replaces 0330132. |
| 15 |
0320061 |
ORIFICE, High speed, 175, No. 61c |
| 16 |
0338884 |
GASKET, Float bowl This part replaces 0333418. |
| 18 |
0383437 |
FLOAT ASSEMBLY |
| 19 |
0334353 |
GASKET, Cover This part replaces 0327931. |
| 20 |
0333750 |
SCREW, Cover |
| 21 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 22 |
0327707 |
GASKET, Air silencer |
