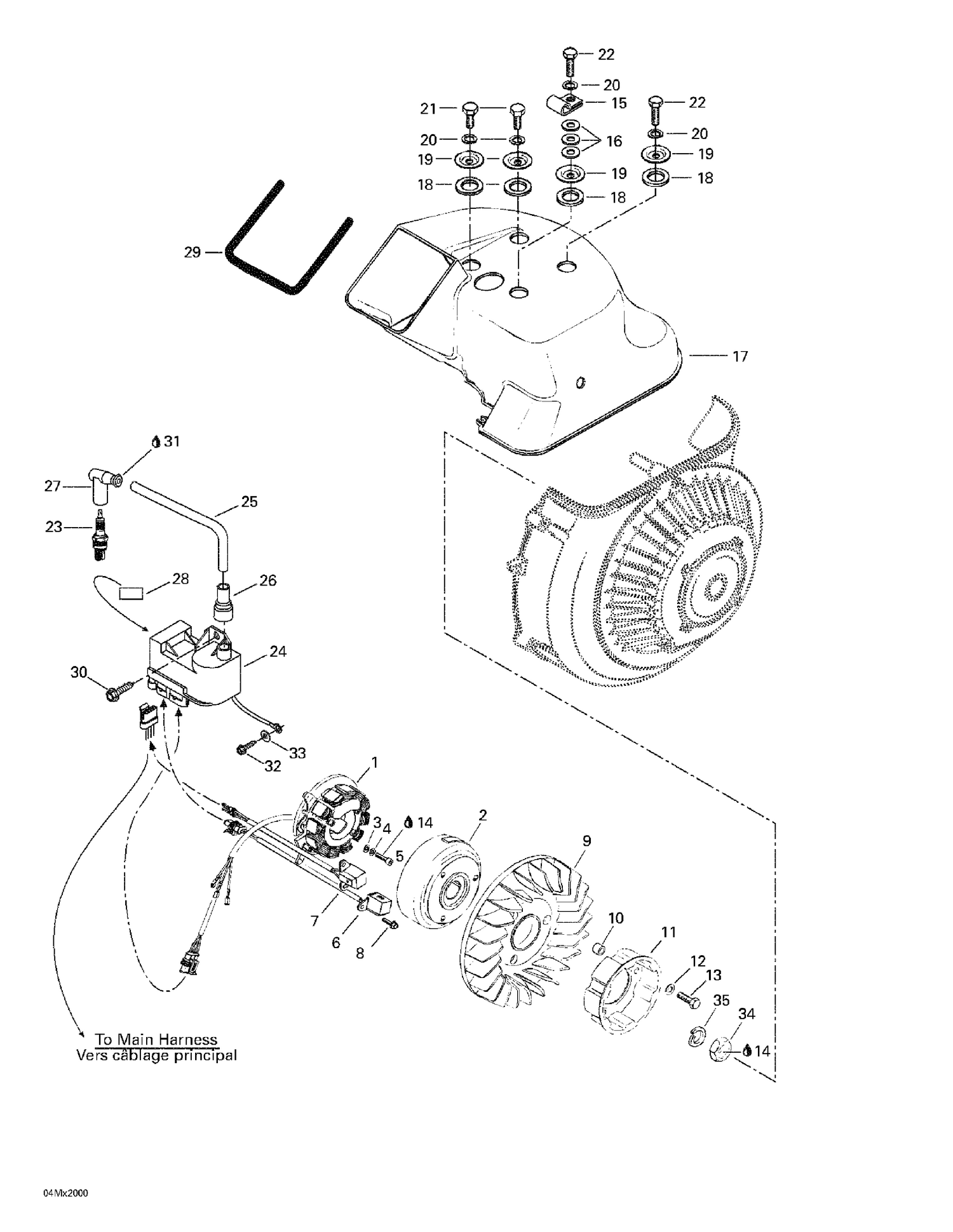

| Ref | Part Number | Description |
|---|
| 1 |
420886608 |
STATOR PLATE ASS'Y - Call your local BRP dealership |
| 2 |
420996829 |
FLYWHEEL - Call your local BRP dealership |
| 3 |
420927574 |
Washer 5.3 This part replaces 420927571. |
| 4 |
420945750 |
Lock Washer |
| 5 |
420840515 |
SOCKET HEAD SCREW M5 X 18 - Call your local BRP dealership |
| 6 |
420966542 |
Pick Up Ass'y |
| 7 |
420966544 |
Pick Up Ass'y |
| 8 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 9 |
420866435 |
FAN - Call your local BRP dealership |
| 10 |
420847440 |
SPACER BUSHING - Call your local BRP dealership |
| 11 |
420852590 |
Starting Pulley This part replaces 420852419. |
| 12 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 13 |
207182544 |
Hex. Screw M8 X 25 |
| 14 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 15 |
414176000 |
Open Clamp |
| 16 |
234081410 |
Flat Washer 8 mm |
| 17 |
420910022 |
Cylinder Cowl |
| 18 |
420960860 |
RUBBER WASHER - Call your local BRP dealership |
| 19 |
420827140 |
COWL COVER - Call your local BRP dealership |
| 20 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 21 |
207181644 |
Hex. Screw M8 x 16 |
| 22 |
207182044 |
Hex. Screw M8 X 20 |
| 23 |
219703120 |
Spark Plug NGK BR9ES This part replaces 414961100. |
| 25 |
278002198 |
SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268. |
| 26 |
515174900 |
PROTECTION CAP - Call your local BRP dealership |
| 27 |
278000237 |
SPARK PLUG CAP - Call your local BRP dealership |
| 28 |
512059082 |
Check Label |
| 29 |
219704371 |
Neoprene Seal 3000 mm Long |
| 30 |
365901400 |
Screw-hex.taping 12 |
| 31 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 32 |
210251650 |
Hex. Forming Screw M5 X 16 This part replaces 210251680. |
| 33 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 34 |
420842239 |
Hex. Nut, M22 X 1.5 This part replaces 420842230. |
