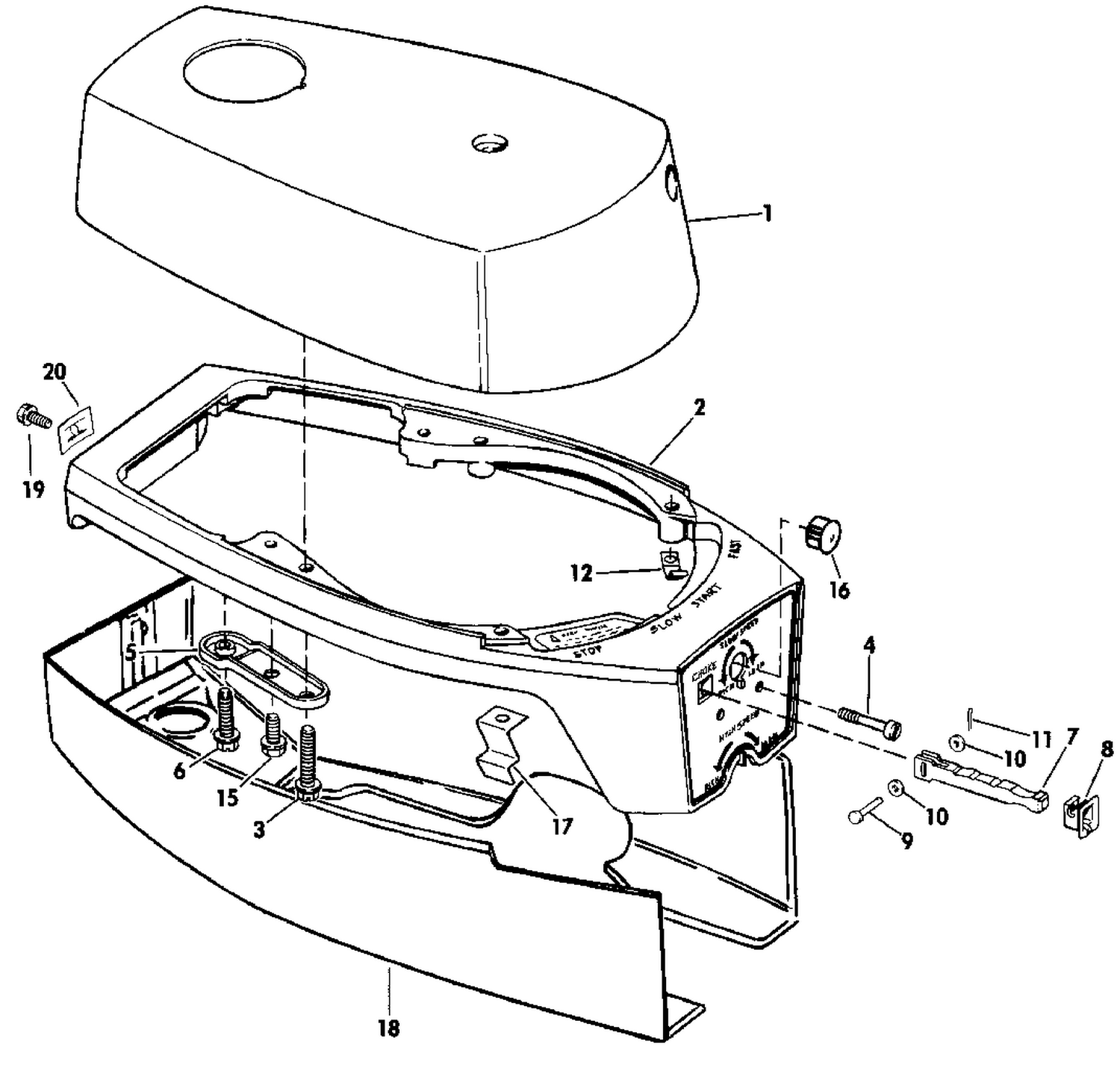

ENGINE COVER
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0283544 | STARTER HOUSING, Ev. |
| 1 | 0432283 | STARTER HOUSING, Jo. |
| 2 | 0432544 | MOUNTING BRACKET |
| 3 | 0316450 | SCREW, Adaptor, lower |
| 4 | 0320504 | SCREW, Bracket to carburetor |
| 5 | 0316449 | SUPPORT, Bracket to head |
| 6 | 0316497 | SCREW, Bracket to head |
| 7 | 0314147 | CHOKE KNOB |
| 8 | 0312890 | DETENT CHIKE KNOB |
| 9 | 0315258 | HINGE PIN |
| 10 | 0306544 | WASHER |
| 12 | 0317019 | SPRING, Throttle detent |
| 15 | 0324644 | SCREW, Solecoid mounting |
| 16 | 0330258 | PLUG |
| 17 | 0334637 | SPRING, Detent |
| 18 | 0211384 | COVER, Lower, Ev. |
| 18 | 0334634 | COVER, Lower, Jo. |
| 19 | 0319292 | SCREW, Clamp |
| 20 | 0334841 | SPEED NUT |
| 0211385 | 0211385 | OWNERS MANUAL, Ev. |
| 0211386 | 0211386 | OWNERS MANUAL, Ev. |
| 0283723 | 0283723 | DECAL SET, Ev. |
| 0433026 | 0433026 | OWNERS MANUAL, Jo. |
| 0433035 | 0433035 | DECAL SET, Jo. |
