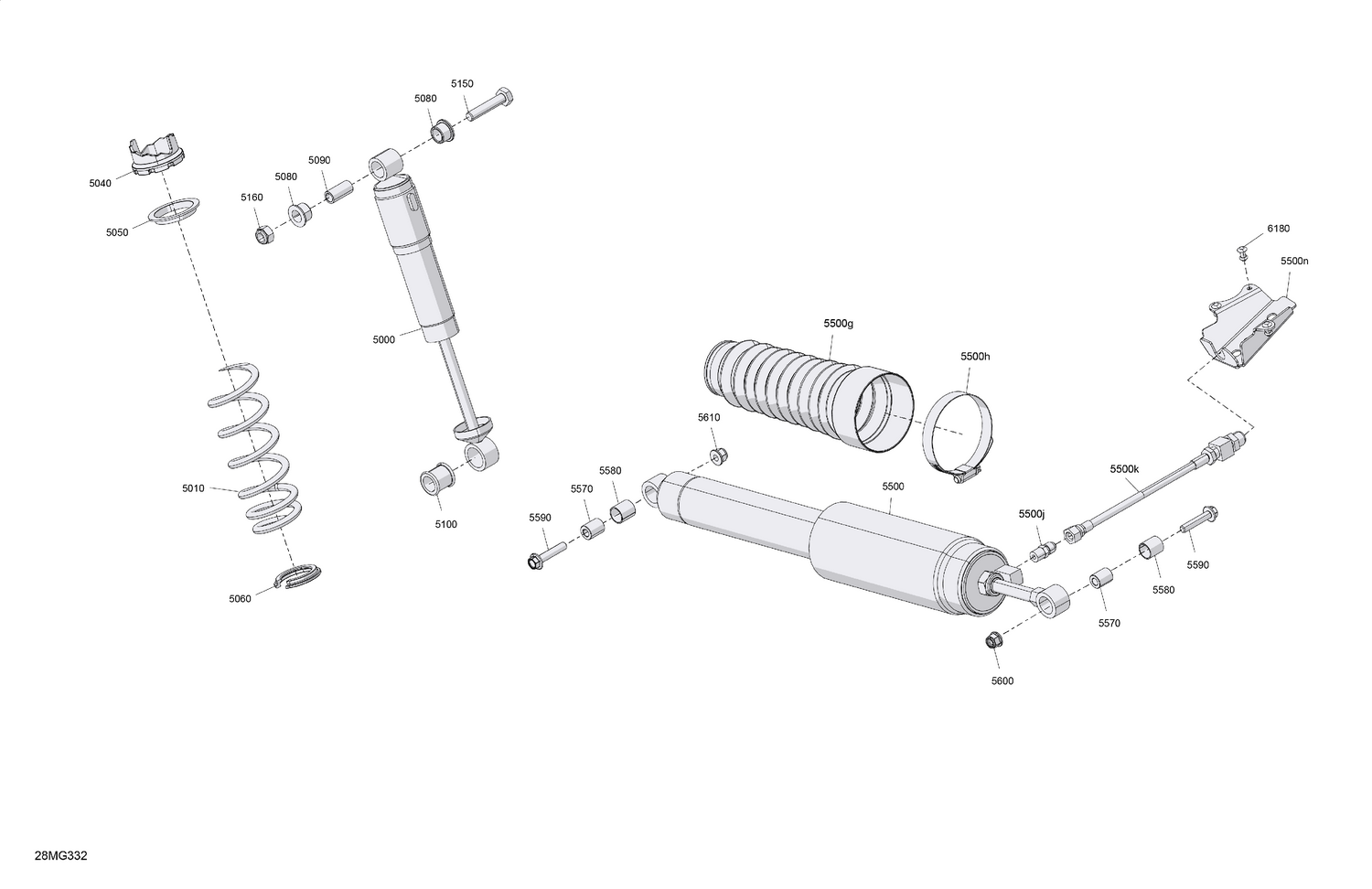

05- Suspension - Rear Shocks
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503197739 | Rear Shock Absorber Hpg |
| 5010 | 503195855 | Spring |
| 5040 | 505073625 | Adjustment Cam |
| 5050 | 505074995 | Spring Guide |
| 5060 | 503194270 | Spring Stopper |
| 5080 | 503189117 | Urethane Bushing |
| 5090 | 503189282 | Bushing |
| 5100 | 503189271 | Bushing |
| 5150 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5160 | 233601466 | Elastic Locking Nut M10 |
| 5500g | 570278300 | Protection Boot |
| 5500h | 293650064 | Tridon Clamp |
| 5500j | 503191939 | Male Pneumatic Connector |
| 5500k | 503192652 | Air Hose Ass'y |
| 5500n | 503194925 | Bracket |
| 5570 | 503196509 | Axle Shock Absorber |
| 5580 | 505072663 | Leg Cushion |
| 5590 | 207684056 | Hex Flange Screw M8 X 40 |
| 5600 | 233281466 | Elastic Flange Nut M8 |
| 5610 | 233281466 | Elastic Flange Nut M8 |
