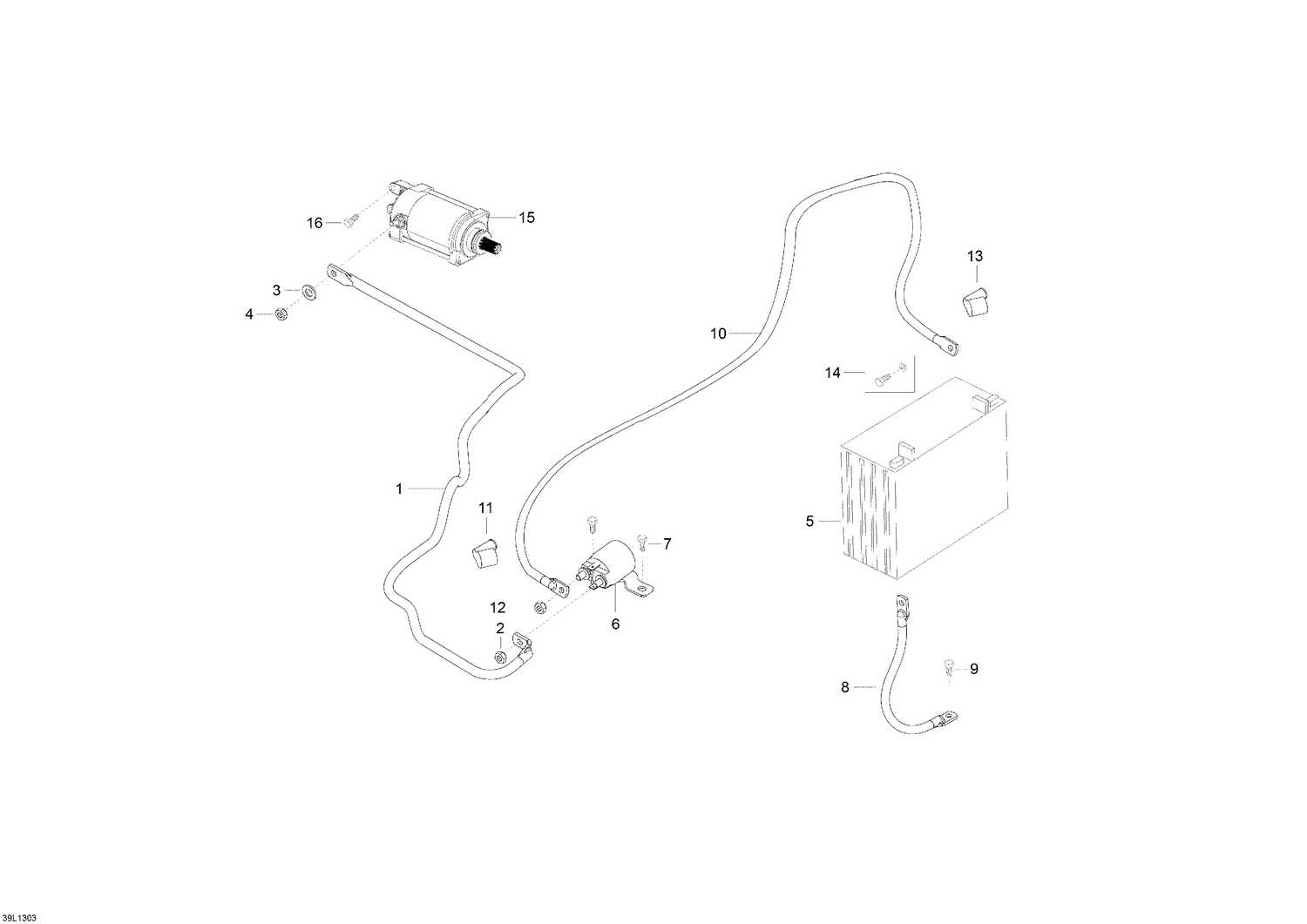

10- Battery And Starter
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176945 | Battery Wire |
| 2 | 232561434 | Elastic Stop Nut M6 |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 232561434 | Elastic Stop Nut M6 |
| 5 | 515176151 | Battery YUASA YIX30L |
| 6 | 515176011 | Starter Solenoid |
| 7 | 207561644 | Hex Flange Screw M6 X 16, Scotch Grip |
| 8 | 515176777 | Ground Wire |
| 9 | 207661644 | Hex. Flange Screw M6 X 16 |
| 10 | 515176778 | BATTERY WIRE - Call your local BRP dealership |
| 11 | 570151000 | Protection Cap |
| 12 | 232561434 | Elastic Stop Nut M6 |
| 13 | 710000495 | Protector Cap |
| 14 | 250000282 | Battery Bolt Kit |
| 15 | 420892435 | Electric Starter Ass'y This part replaces 420892423. |
