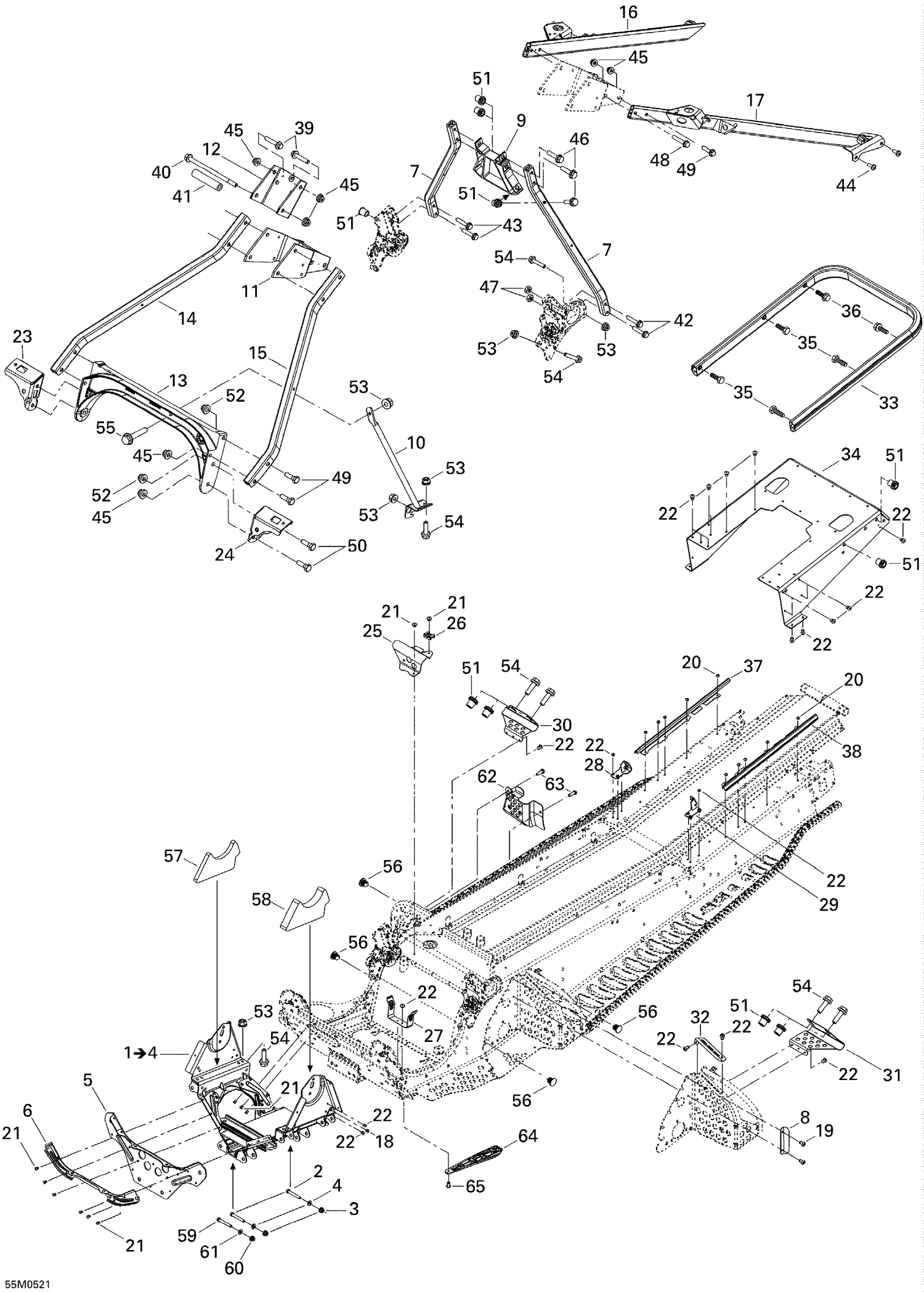

| Ref | Part Number | Description |
|---|
| 2 |
207085544 |
Hex. Screw M8 X 55 |
| 3 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 4 |
234081410 |
Flat Washer 8 mm |
| 5 |
518324726 |
Front Plate |
| 6 |
518324727 |
Front Plate Reinforcement |
| 7 |
518324228 |
HANDLE SUPPORT - Call your local BRP dealership |
| 8 |
518317504 |
CABLE PROTECTOR - Call your local BRP dealership |
| 9 |
518323811 |
HANDLE SUPPORT REINFORCEMENT - Call your local BRP dealership |
| 10 |
518324080 |
Brace, Black |
| 11 |
518323676 |
ATTACHMENT BRACKET - Call your local BRP dealership |
| 12 |
518324046 |
STEERING COLUMN SUPPORT - Call your local BRP dealership |
| 13 |
518324265 |
Upper Cross Member |
| 14 |
518324285 |
RH FRONT BRACE - Call your local BRP dealership |
| 15 |
518324286 |
LH FRONT BRACE - Call your local BRP dealership |
| 16 |
518323352 |
RH Member |
| 17 |
518323354 |
LH MEMBER - Call your local BRP dealership |
| 18 |
Not |
Available As Spare Part - Hemlock Rivet 6.5 mm |
| 19 |
390402200 |
Pop Rivet 3/16" |
| 20 |
390402400 |
Pop Rivet 3/16" |
| 21 |
390909100 |
Avex Rivet |
| 22 |
390909200 |
Avex Rivet |
| 23 |
518324148 |
RH SHOCK BRACKET - Call your local BRP dealership |
| 24 |
518324150 |
LH Shock Bracket |
| 25 |
518323584 |
HOSE SUPPORT - Call your local BRP dealership |
| 26 |
515176795 |
Tie Rap Mount (screwable) This part replaces 293750031. |
| 27 |
518202100 |
Belt Guard Bracket |
| 28 |
518323769 |
RH BRACKET, BLACK - Call your local BRP dealership |
| 29 |
518323770 |
LH BRACKET, BLACK - Call your local BRP dealership |
| 30 |
518323948 |
RH TOE HOLD - Call your local BRP dealership |
| 31 |
518324392 |
LH TOE HOLD - Call your local BRP dealership |
| 32 |
518323105 |
PLATE, BLACK - Call your local BRP dealership |
| 33 |
518324525 |
Rear Bumper |
| 34 |
518324520 |
Rear Cap |
| 35 |
236282084 |
Hex. Screw M8 X 20 |
| 36 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 37 |
518324553 |
RH Wire Protector |
| 38 |
518324554 |
LH Wire Protector |
| 39 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 40 |
230684044 |
HEX. FLANGED SCREW M8 X 140 - Call your local BRP dealership |
| 41 |
518324048 |
SPACER - Call your local BRP dealership |
| 42 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 43 |
207563044 |
Hex. Flange Screw M6 X 30, Scotch Grip |
| 44 |
250000887 |
Pan Head Torx Screw M8 X 12 This part replaces 250000154. |
| 45 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 46 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 47 |
232561414 |
Elastic Stop Nut M6 |
| 48 |
207685044 |
Hex. Flange Screw M8 X 50 |
| 49 |
207683544 |
Hex. Flange Screw M8 X 35 |
| 50 |
207182544 |
Hex. Screw M8 X 25 |
| 51 |
293450275 |
Insert This part replaces 415107300. |
| 52 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 53 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 54 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 55 |
207663544 |
Hex. Flange Screw M6 X 35 |
| 56 |
518321954 |
Panel Fastener |
| 57 |
518324372 |
RH FRONT FOAM - Call your local BRP dealership |
| 58 |
518323007 |
LH FRONT FOAM - Call your local BRP dealership |
| 59 |
207085544 |
Hex. Screw M8 X 55 |
| 60 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 61 |
234081410 |
Flat Washer 8 mm |
| 62 |
518324609 |
Footrest Extension |
| 63 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 64 |
518324438 |
FRONT PROTECTOR - Call your local BRP dealership |
