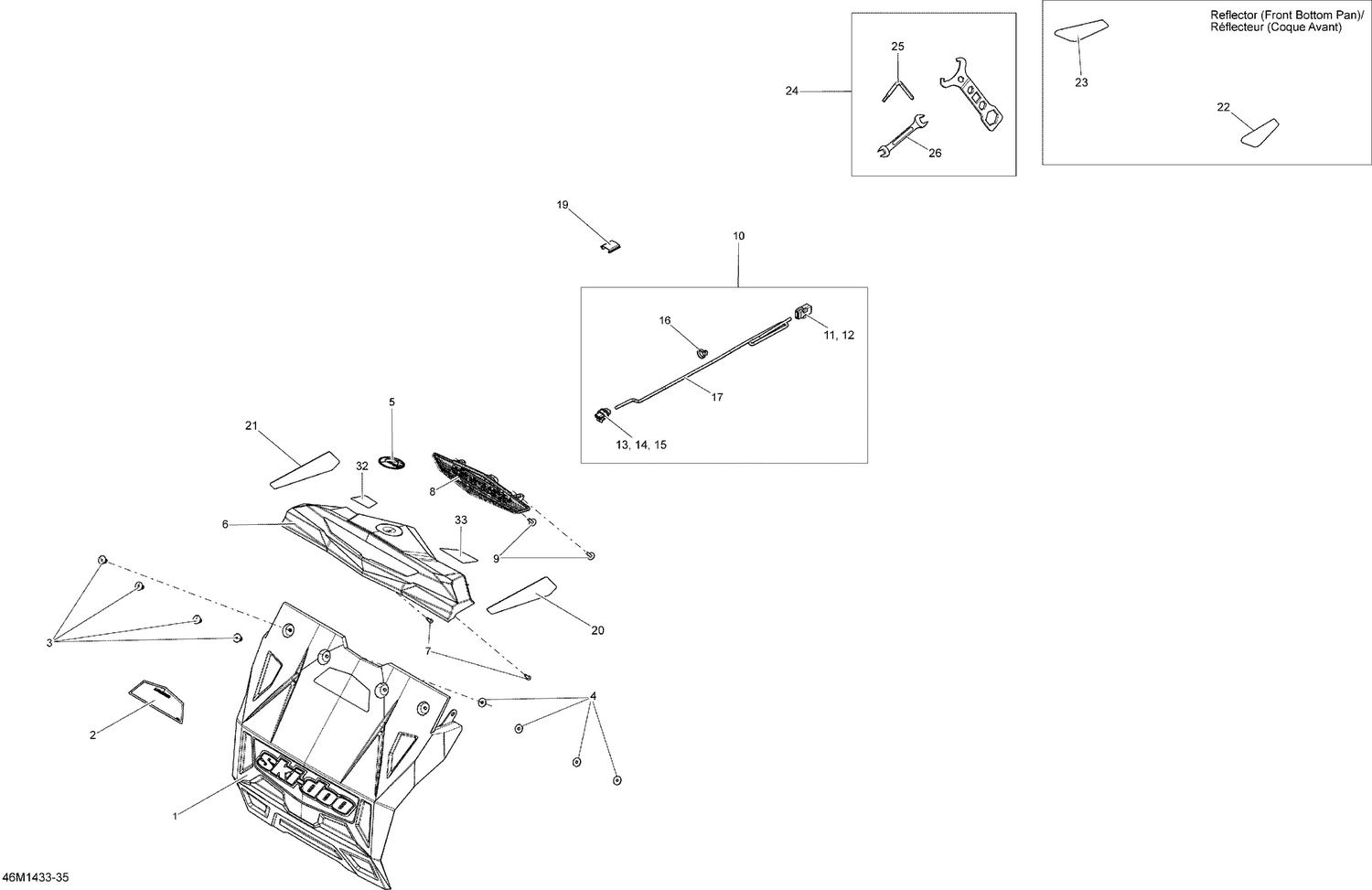

09- Utilities
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001318 | Snow Guard |
| 2 | 516005175 | Warning Decal, Track |
| 3 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 4 | 517124300 | Washer |
| 5 | 219903947 | BRP Logo 48 mm |
| 6 | 511000810 | Deep Black, Light Fairing |
| 7 | 241141340 | Hex. Screw K40 X 13 |
| 8 | 520001143 | Rear Light |
| 9 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 11 | 515175494 | Male Housing, 3 Circuits |
| 12 | 515175232 | Male Terminal |
| 13 | 278002387 | Female Terminal Housing 3 Circuits |
| 14 | 710001153 | Seal Wire |
| 15 | 710000925 | Terminal |
| 16 | 293750002 | Tie Wrap 142 mm |
| 17 | 219704424 | Vinyl Tubing, Low Temp 3000Mm Long |
| 19 | 520000829 | Radiator Trim |
| 22 | 520001237 | Yellow, RH Front Reflector |
| 24 | 520001591 | Tools Kit This part replaces 520001290. |
| 25 | 520001142 | Spacing Tool |
| 26 | 529000002 | FORK WRENCH, 10/13 MM - Call your local BRP dealership |
| 32 | 516005057 | WARNING DECAL, SAFETY - Call your local BRP dealership |
