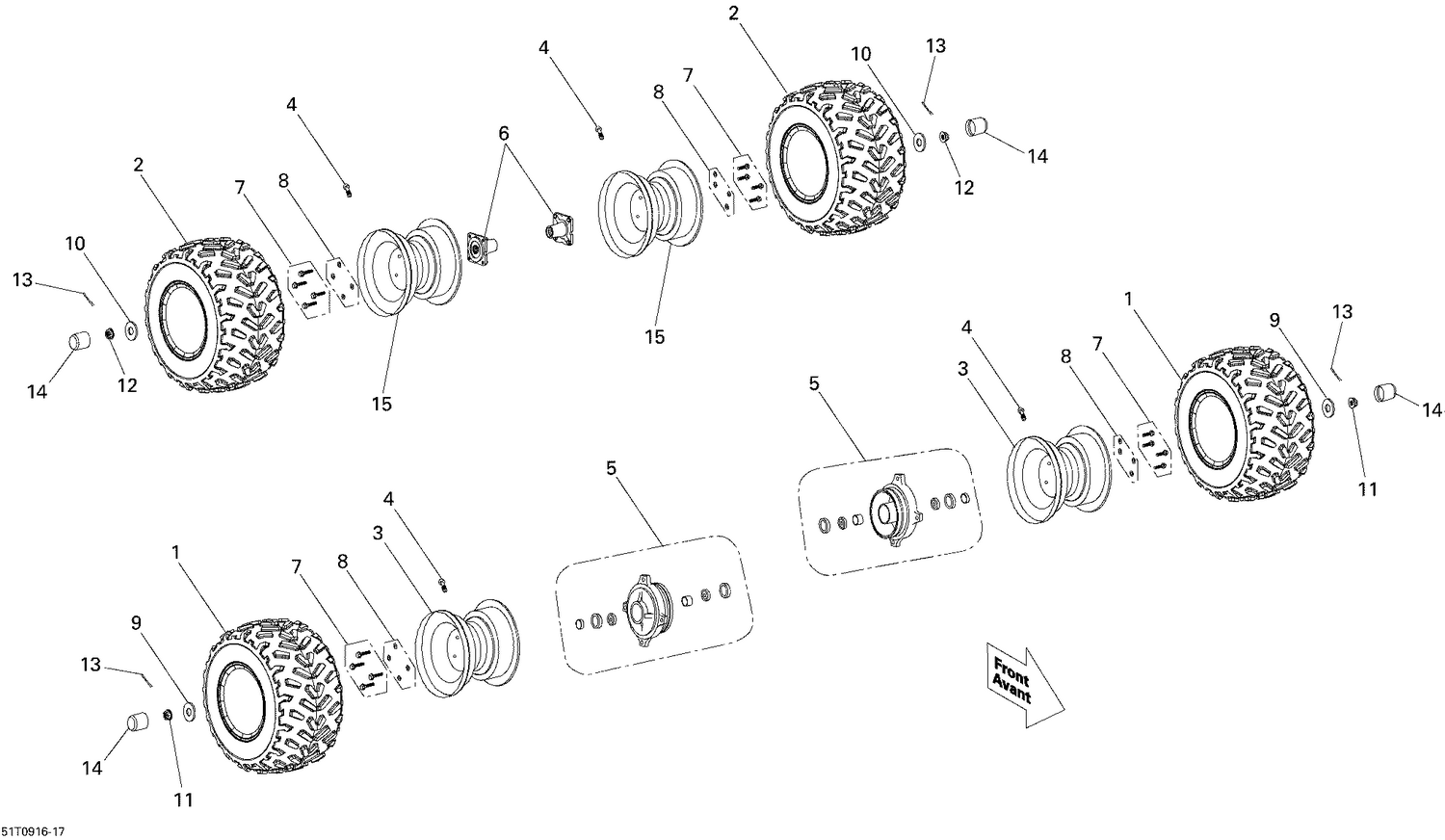

07- Wheels And Tires
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | V42711DGF000LL | Front Tire This part replaces V42711DGF000. |
| 2 | V42712DGF010LL | Rear Tire This part replaces V42712DGF000. |
| 3 | V42707DGF010LL | Front Rim This part replaces V42707DGF000. |
| 4 | V42751MAA000LL | Rim Valve This part replaces V42751MAA000. |
| 5 | V44610MAA00GSL | Front Hub |
| 6 | V44630MAA00GSL | Rear Wheel Axle Fixed Bracket |
| 7 | V9200010020 | Hex. Screw |
| 8 | 234101601 | Helicoidal Lock Washer M10 |
| 9 | V55001MAA000LL | Front Wheel Washer This part replaces V55001MAA000. |
| 10 | V55002MAA010LL | Washer This part replaces V55002MAA000. |
| 11 | V9405112000 | Castle Nut M12 |
| 12 | V9405214000LL | Castle Nut M14 This part replaces V9405214000. |
| 13 | V9420130032LL | Cotter Pin This part replaces V9420130032. |
| 14 | V53456DGF010LL | Rubber Cap This part replaces V53456DGF000. |
