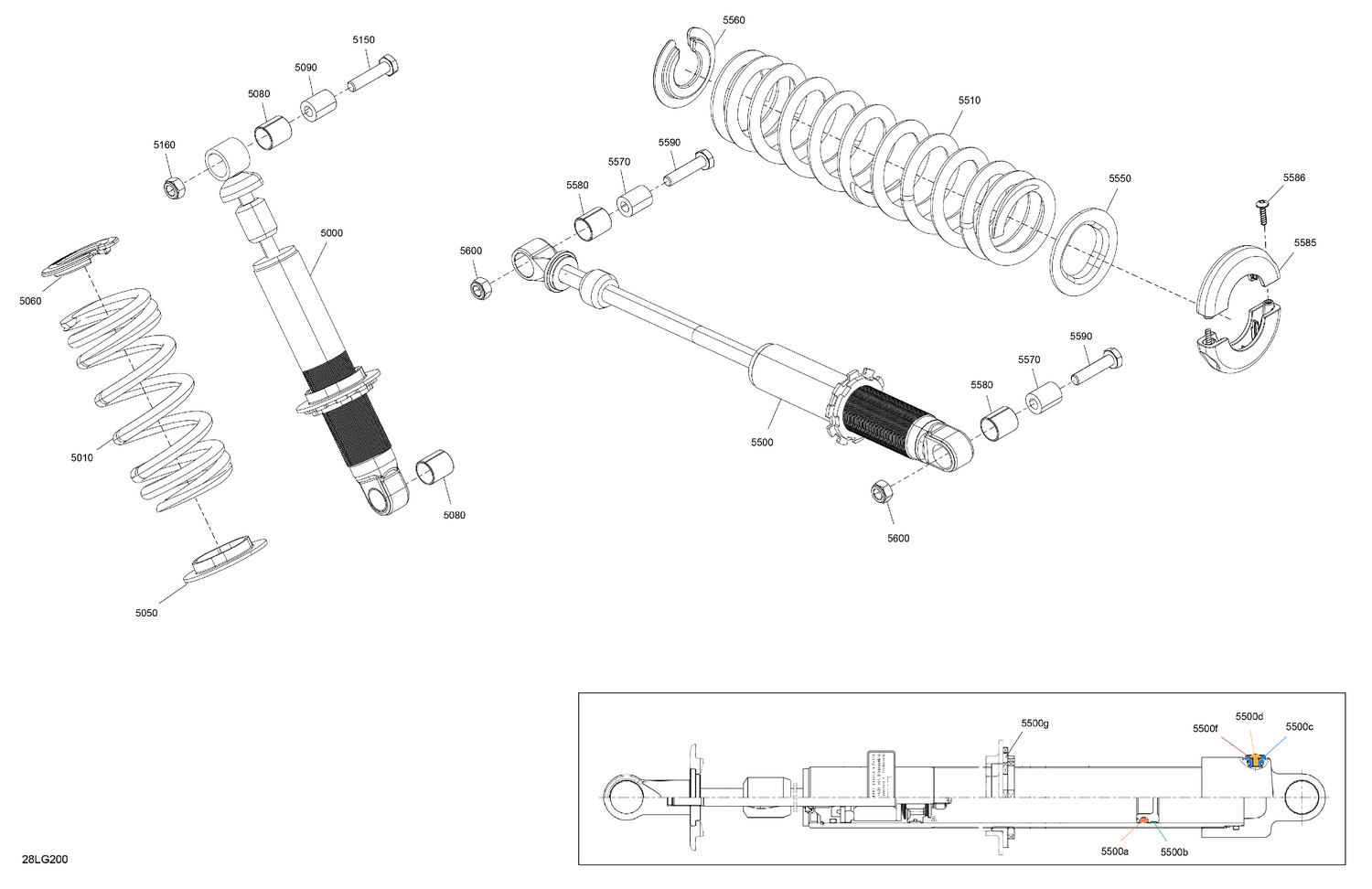

05- Suspension - Rear Shocks
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503197514 | Central Adjustable Shock Absorber |
| 5010 | 503197980 | Spring 185 Mm-30 N/Mm |
| 5050 | 503195685 | Spacer |
| 5060 | 503196528 | Stopper Spring |
| 5080 | 503198187 | Shock Absorber Bushing |
| 5090 | 5446652 | Bushing |
| 5150 | 207004544 | Hex. Screw M10 X 45 |
| 5160 | 232500416 | Elastic Stop Nut M10 |
| 5500a | 414888312 | O-Ring |
| 5500b | 503189308 | Piston Ring |
| 5500c | 505070398 | Air Valve |
| 5500d | 505070399 | Screw |
| 5500f | 505070400 | O-Ring |
| 5500g | 414888316 | SPRING COLLAR - Call your local BRP dealership |
| 5510 | 503197979 | Spring 300 Mm - 35/70 N/Mm |
| 5550 | 503195685 | Spacer |
| 5560 | 503196528 | Stopper Spring |
| 5570 | 5446652 | Bushing |
| 5580 | 503198187 | Shock Absorber Bushing |
| 5585 | 503198093 | Sleeve_Protection Molded |
| 5586 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 5590 | 207004544 | Hex. Screw M10 X 45 |
