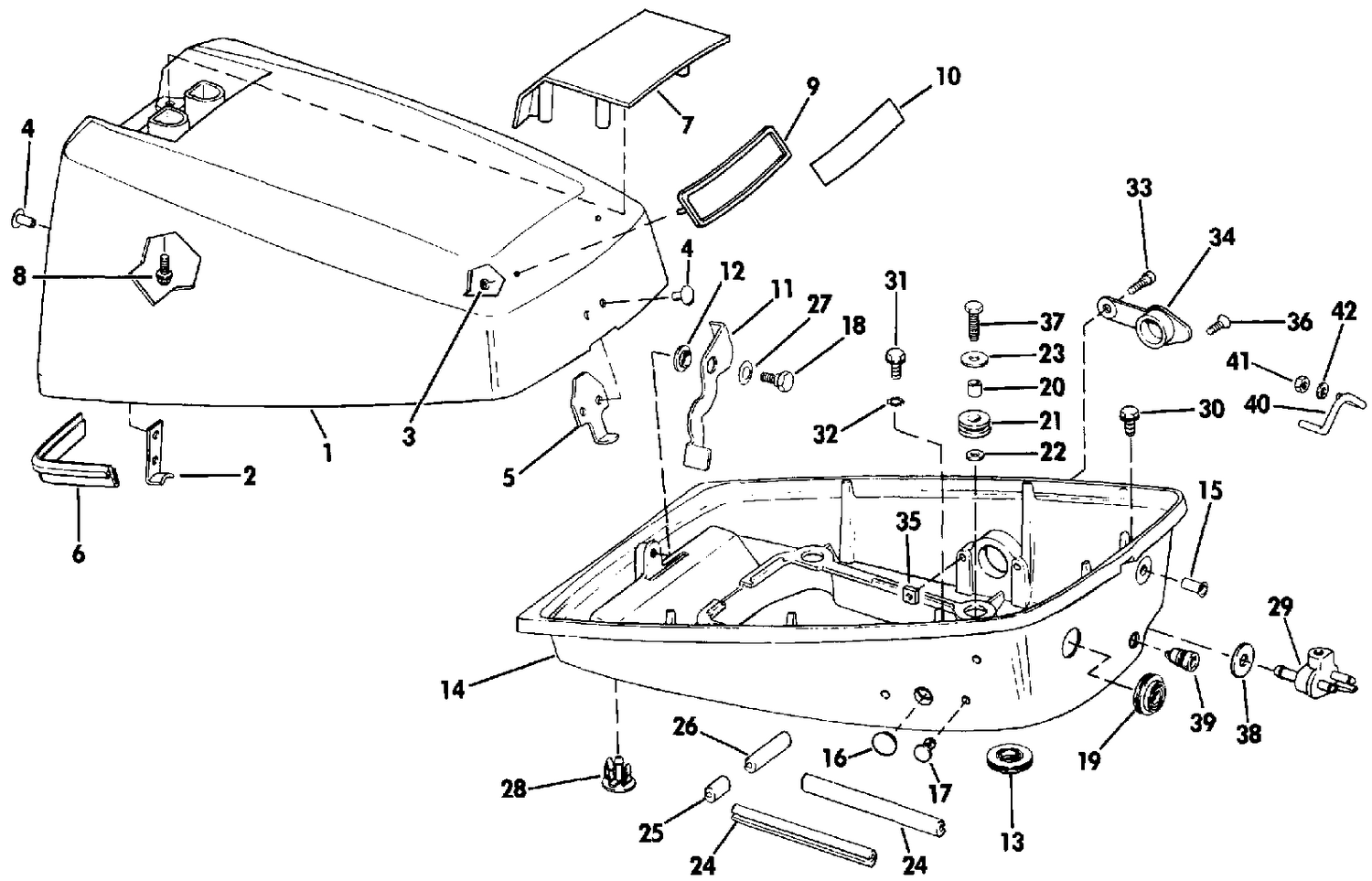

| Ref | Part Number | Description |
|---|
| 1 |
0395938 |
ENGINE COV. ASSY., Johnson |
| 1 |
0395940 |
ENGINE COV. ASSY., Johnson |
| 1 |
0395960 |
ENGINE COV, ASSY., Johnson |
| 1 |
0395962 |
ENGINE COV. ASSY., Johnson |
| 2 |
0391114 |
HOOK Rear, (includes rivets) |
| 4 |
0318836 |
RIVET |
| 5 |
0431940 |
HOOK Front, (includes rivets) This part replaces 0391113. |
| 6 |
0334146 |
SEAL This part replaces 0326165. |
| 7 |
0331134 |
TILT HANDLE |
| 9 |
0331906 |
APPLIQUE |
| 10 |
0331908 |
PLATE, 6 models |
| 10 |
0331909 |
PLATE, 8 models |
| 11 |
0312833 |
HANDLE, Latch |
| 12 |
0204444 |
BUSHING |
| 13 |
0331634 |
BAGUE, câble d'accélérateur |
| 14 |
0397431 |
ENGINE COVER, Lower |
| 14 |
0431835 |
ENGINE COVER, Lower This part replaces 0396558. |
| 14 |
0431837 |
ENGINE COVER, Lower This part replaces 0396557. |
| 16 |
0329428 |
PLUG, Lower engine cover |
| 17 |
0329429 |
PLUG, Lower motor cover |
| 18 |
0302592 |
SCREW |
| 19 |
0331537 |
GROMMET |
| 20 |
0325085 |
SLEEVE, Mount engine cover |
| 22 |
0329241 |
RONDELLE This part replaces 0306482. |
| 24 |
0325087 |
SEAL, Engine cover side |
| 25 |
0325088 |
SEAL, Exhaust housing rear, starboard |
| 26 |
0325823 |
SEAL, Exhaust housing, rear port |
| 27 |
0204445 |
BOW WASHER |
| 28 |
0321885 |
NIPPLE |
| 30 |
0328731 |
VIS, câble de verrouillage This part replaces 0329265. |
| 31 |
0328731 |
VIS, câble de verrouillage This part replaces 0329265. |
| 33 |
0319701 |
SCREW, AC Lighting cap |
| 34 |
0389528 |
CAP & GROMMET ASSEMBLY |
| 36 |
0333345 |
SCREW This part replaces 0511291. |
| 37 |
0306409 |
VIS, collecteur vers carter-moteur |
| 39 |
0327442 |
BUSHING, Cable to engine cover |
| 40 |
0332146 |
ROPE GUIDE |
| 0396012 |
0396012 |
OWNER'S MANUAL, Johnson |
| 0396325 |
0396325 |
DECAL SET, Johnson |
| 0396327 |
0396327 |
DECAL SET, Johnson |
| 0396328 |
0396328 |
DECAL SET, Johnson |
| 0396329 |
0396329 |
DECAL SET, Johnson |
