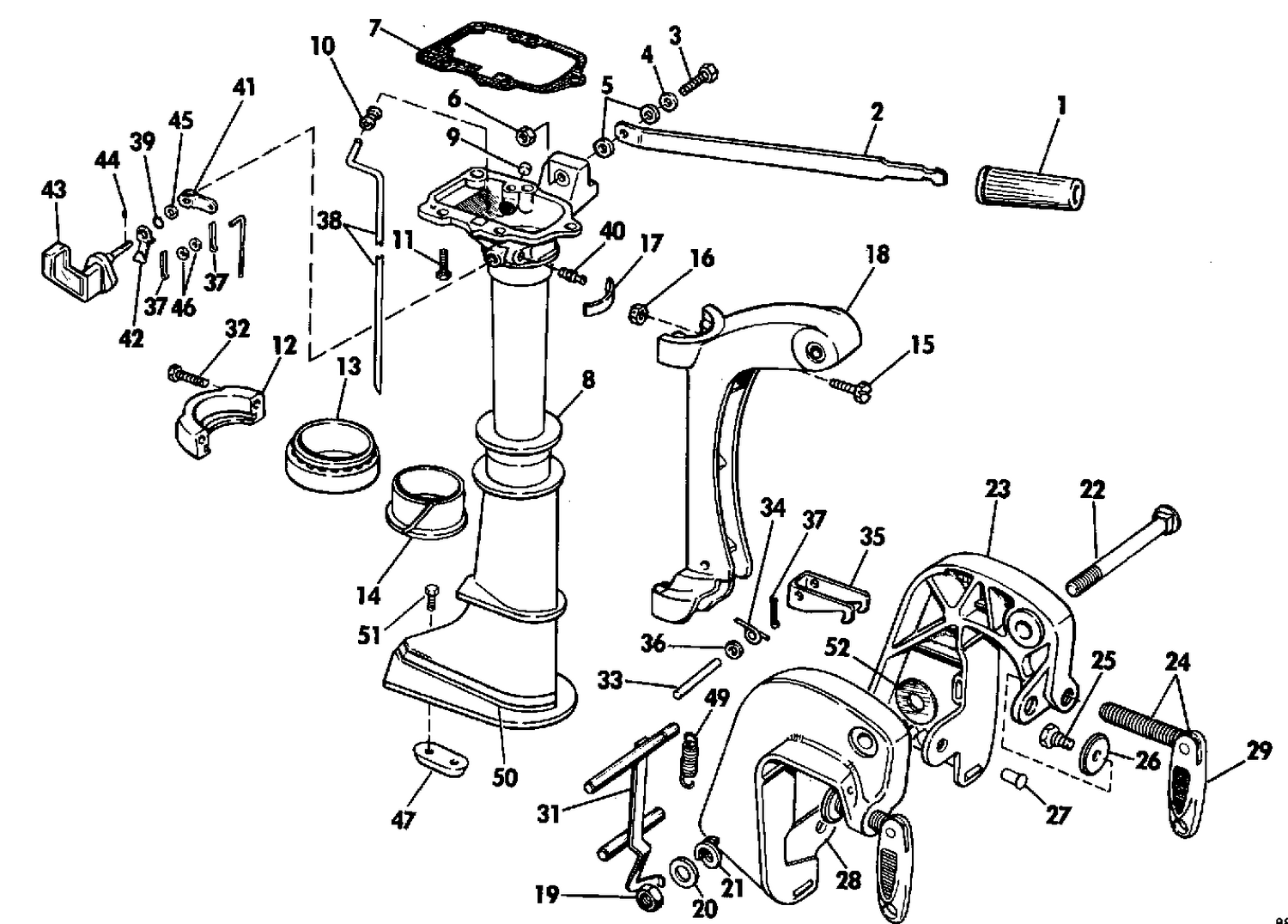

| Ref | Part Number | Description |
|---|
| 1 |
0115220 |
GRIP HANDLE, Steering This part replaces 0313181. |
| 2 |
0317465 |
HANDLE, Steering |
| 3 |
0328095 |
SCREW, Cooler to bracket |
| 4 |
0312874 |
SPRING WASHER, Strg. handle |
| 6 |
0309602 |
LOCK NUT, Steering handle |
| 7 |
0327169 |
GASKET, Cyl. & c'case to exh. hsg. |
| 8 |
0395623 |
HOUSING, Exhaust |
| 9 |
0317516 |
PLUG |
| 10 |
0317462 |
GROMMET, Water tube |
| 12 |
0317429 |
RETAINER ASSY., Pivot brg., upper |
| 13 |
0317460 |
VIBRATION DAMDPENER, Pivot brg., upper & lower |
| 14 |
0323033 |
BEARING, Pivot, upper & lower |
| 15 |
0314048 |
SCREW, Adj. friction brake |
| 17 |
0317455 |
BRAKE, Friction |
| 18 |
0332371 |
SWIVEL BRACKET |
| 20 |
0202026 |
LOCK WASHER, Stud |
| 21 |
0202027 |
SPRING, Tilt bolt |
| 22 |
0203179 |
TILTING BOLT |
| 23 |
0397971 |
STERN BRACKET & CLAMP SCREW ASSY., Port |
| 24 |
0391421 |
CLAMP SCREW & HANDLE |
| 24 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0388347. |
| 27 |
0202008 |
RIVET, Stern bracket |
| 28 |
0397967 |
STERN BRACKET & CLAMP SCREW AY., Stbd. (incl. 59, 60 & 61) |
| 31 |
0385237 |
LEVER ASSEMBLY, Tilt |
| 32 |
0335221 |
SCREW, Throttle body to reed plate This part replaces 0328715. |
| 33 |
0317459 |
PIN, Reverse lock |
| 34 |
0200672 |
REVERSE LOCK SPRING |
| 35 |
0317458 |
REVERSE LOCK |
| 36 |
0303887 |
WASHEER, Pin to swivel bracket |
| 38 |
0327980 |
TUBE, Water std. |
| 41 |
0326214 |
BELLCRANK, Shift rod |
| 42 |
0326216 |
SPRING, Shift detent |
| 43 |
0391279 |
SHIFT HANDLE & SHAFT ASSY |
| 44 |
0325792 |
SET SCREW |
| 45 |
0303887 |
WASHEER, Pin to swivel bracket |
| 47 |
0173029 |
ANODE |
| 49 |
0202021 |
SPRING, Link to shallow water drive |
| 50 |
0210674 |
DECAL, Exhaust hsg., Ev |
| 50 |
0332650 |
DECAL, Exhaust hsg., Jo |
| 0397969 |
0432085 |
STERN BRACKETS ASSEMBLY This part replaces 0397969. |
