Home / BRP / JOHNSON / 2002 / 60 / J60PL4SNF 4-Stroke, Elec. Start, TNT, 20 IN. shaft 2002 / OIL PAN

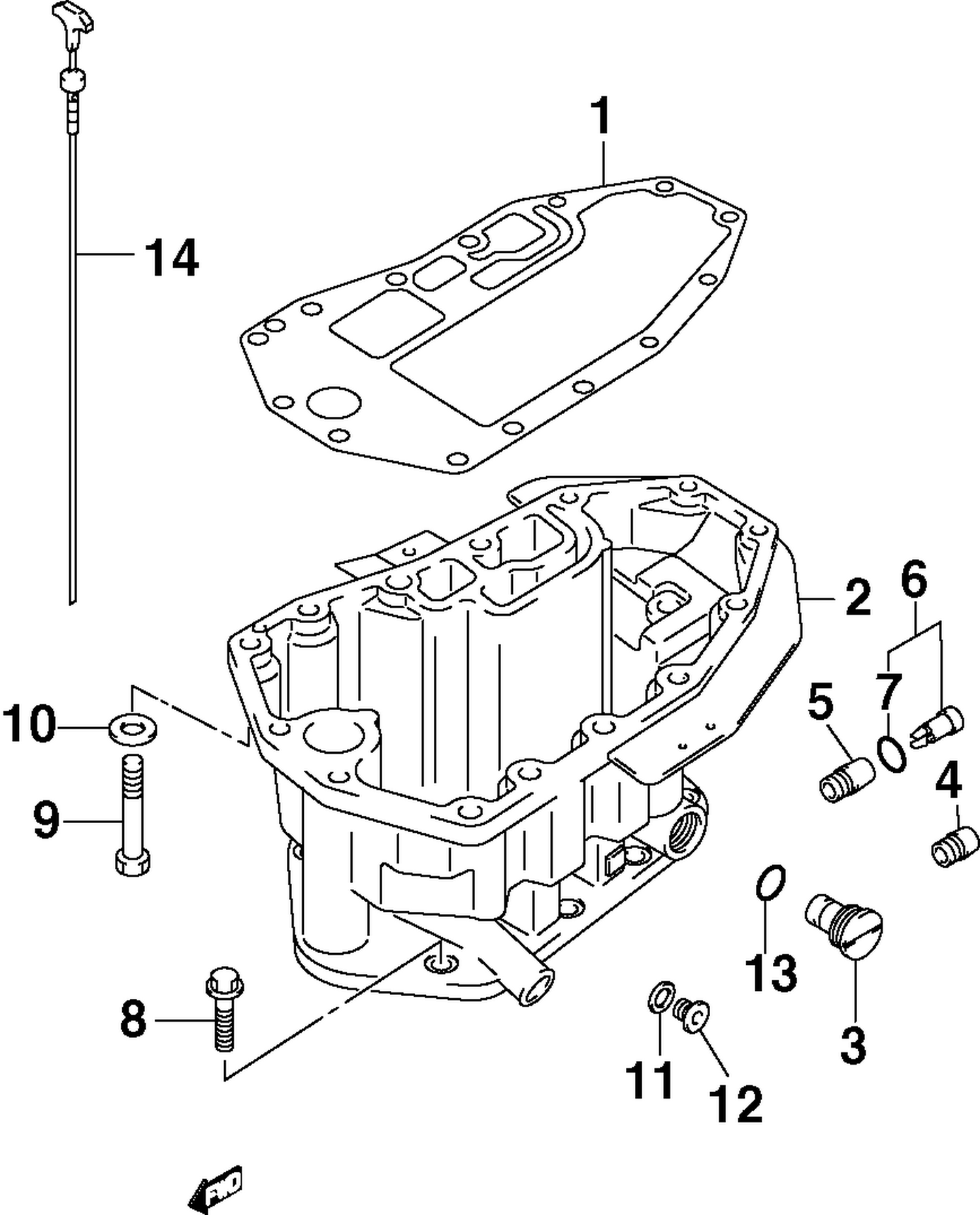

OIL PAN

OIL PAN

Parts (11)

RefPart NumberDescription
1 5030635 GASKET, Oil pan
2 5030636 OIL PAN
3 5032682 PLUG, Water
5 5030929 TUBE, WATER INDICATOR
6 5030930 COVER
8 5031212 BOLT
9 5030384 BOLT (10X100mm)
10 5030057 WASHER
11 5030465 GASKET
12 5030525 PLUG
13 5030536 O RING
