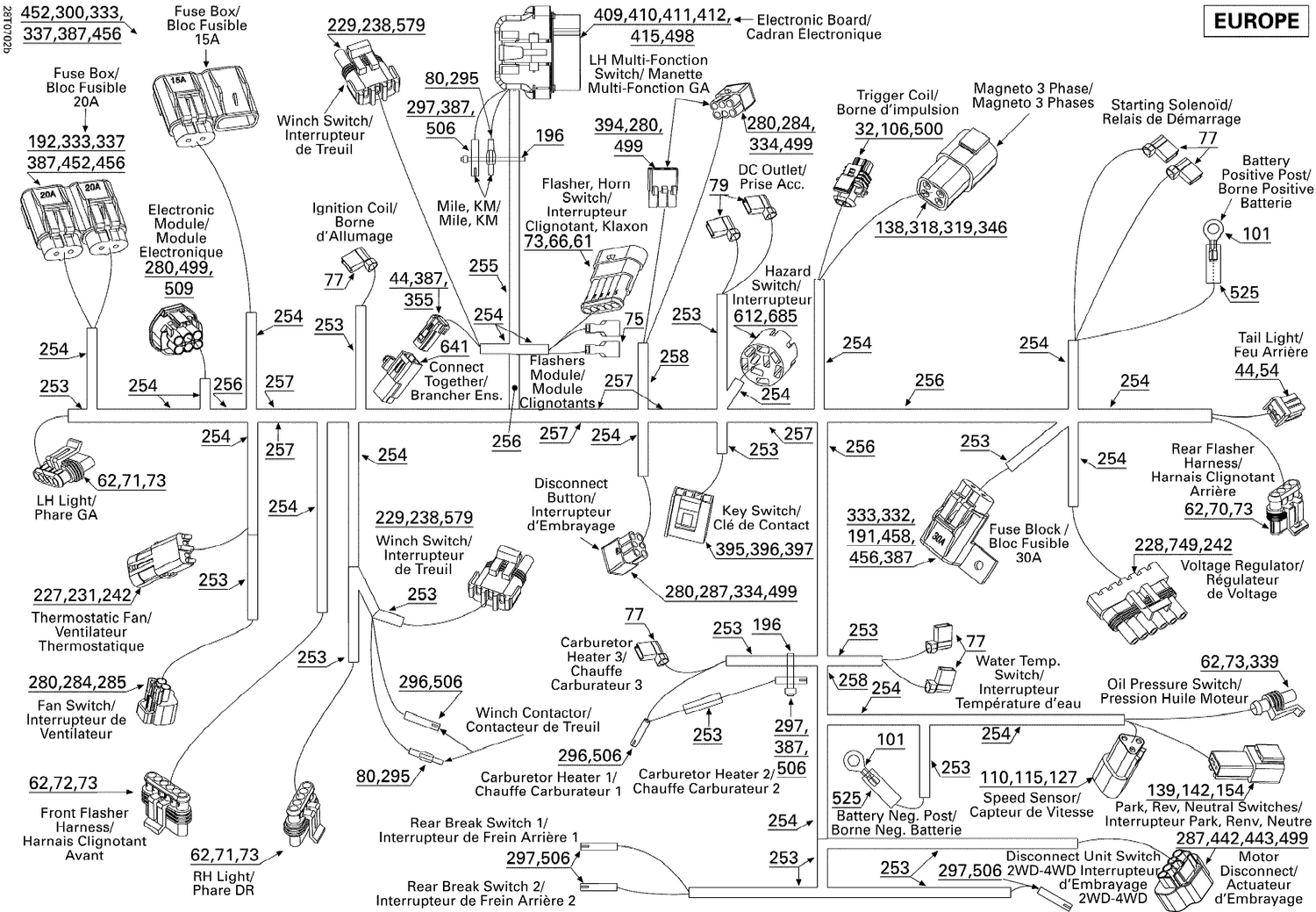

| Ref | Part Number | Description |
|---|
| 32 |
278000998 |
Female Terminal |
| 44 |
515175231 |
Female Terminal |
| 54 |
515175495 |
Female Housing, 3 Circuits |
| 61 |
409012900 |
Male Terminal |
| 62 |
278001014 |
Female Terminal |
| 66 |
710000779 |
Housing |
| 70 |
409209700 |
Female Housing, 4 Circuits |
| 71 |
710000780 |
Connector |
| 72 |
710000816 |
CONNECTOR - Call your local BRP dealership |
| 73 |
278001013 |
Wire Seal |
| 75 |
409010700 |
Female Terminal |
| 77 |
409010300 |
Female Terminal |
| 79 |
710000038 |
Female Terminal |
| 80 |
278000230 |
Male Terminal |
| 101 |
278001392 |
Open Barrel Terminal |
| 106 |
278001005 |
Male Housing, 2 Circuits |
| 110 |
278000631 |
Male Terminal |
| 115 |
278002378 |
Male Housing This part replaces 409207000. |
| 127 |
409207600 |
Male Lock, 3 Circuits |
| 138 |
293000052 |
Sealing Cap |
| 139 |
409014800 |
MALE TERMINAL - Call your local BRP dealership |
| 142 |
710000044 |
MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 154 |
710000043 |
MALE LOCK, 3 CIRCUITS - Call your local BRP dealership |
| 186 |
219704424 |
Vinyl Tubing, Low Temp 3000Mm Long |
| 191 |
410917200 |
Fuse, 30 Amperes |
| 192 |
409003900 |
Fuse, 20 Amperes |
| 196 |
293750002 |
Tie Wrap 142 mm |
| 228 |
409007300 |
Female Terminal |
| 229 |
278000223 |
Female Terminal |
| 231 |
278000217 |
Female Housing, 2 Circuits |
| 238 |
278000273 |
Male Housing, 3 Circuits |
| 242 |
278000218 |
Wire Seal |
| 253 |
219704425 |
Tubing 6 Mm 3000Mm Long |
| 254 |
219704399 |
Was 409901700 Tubing (9 mm) |
| 255 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 256 |
219704408 |
Tubing 16 Mm 1000Mm Long |
| 257 |
219704398 |
Was 409901600 Tubing 19mm |
| 258 |
219704407 |
Tubing 10 MM 1000MM Long |
| 280 |
409012100 |
Female Terminal |
| 284 |
409012300 |
Seal |
| 285 |
710000078 |
HOUSING-TAB - Call your local BRP dealership |
| 287 |
710000080 |
Cap |
| 295 |
278001008 |
Insulated Sheath |
| 296 |
278000770 |
Insulated Sheath |
| 297 |
278001007 |
Insulated Sheath |
| 300 |
278000343 |
Fuse, 15 Amperes |
| 318 |
278001447 |
Module Support |
| 319 |
515175568 |
Male Terminal |
| 332 |
278001326 |
Fuse Holder Cap |
| 333 |
278001325 |
Fuse Holder |
| 334 |
710000081 |
Female Housing, 6 Circuits |
| 337 |
710000113 |
Female Terminal |
| 339 |
278001012 |
Male Housing, 1 Circuit |
| 346 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 355 |
515175658 |
Female Housing, 2 Circuits |
| 387 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 394 |
710000275 |
Female Terminal Housing, 3 Circuits |
| 395 |
710000274 |
Female Terminal |
| 396 |
710000272 |
Female Terminal Housing, 4 Circuits |
| 397 |
710000273 |
Lock, 4 Circuits |
| 409 |
515175812 |
Plug |
| 410 |
515175801 |
Female Housing, 24 Circuits |
| 411 |
515175802 |
Retainer Block |
| 412 |
515175803 |
Wire Seal |
| 415 |
515175806 |
Female Terminal |
| 442 |
710000329 |
Male Housing, 4 Circuits |
| 443 |
710000335 |
Female Terminal |
| 452 |
710000342 |
HOUSING COVER - Call your local BRP dealership |
| 456 |
278000805 |
Cushion |
| 458 |
710000357 |
Female Terminal |
| 498 |
710000399 |
Female Housing |
| 499 |
710000402 |
Wire Seal |
| 500 |
710000403 |
WIRE SEAL - Call your local BRP dealership |
| 506 |
710000421 |
Female Terminal |
| 509 |
710000503 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 525 |
710000482 |
SHRINK TUBING - Call your local BRP dealership |
| 579 |
710000504 |
Wire Seal |
| 612 |
710000562 |
Female Housing |
| 641 |
710000667 |
Male Housing, 2 Circuits |
| 685 |
710000782 |
FEMALE TERMINAL - Call your local BRP dealership |
