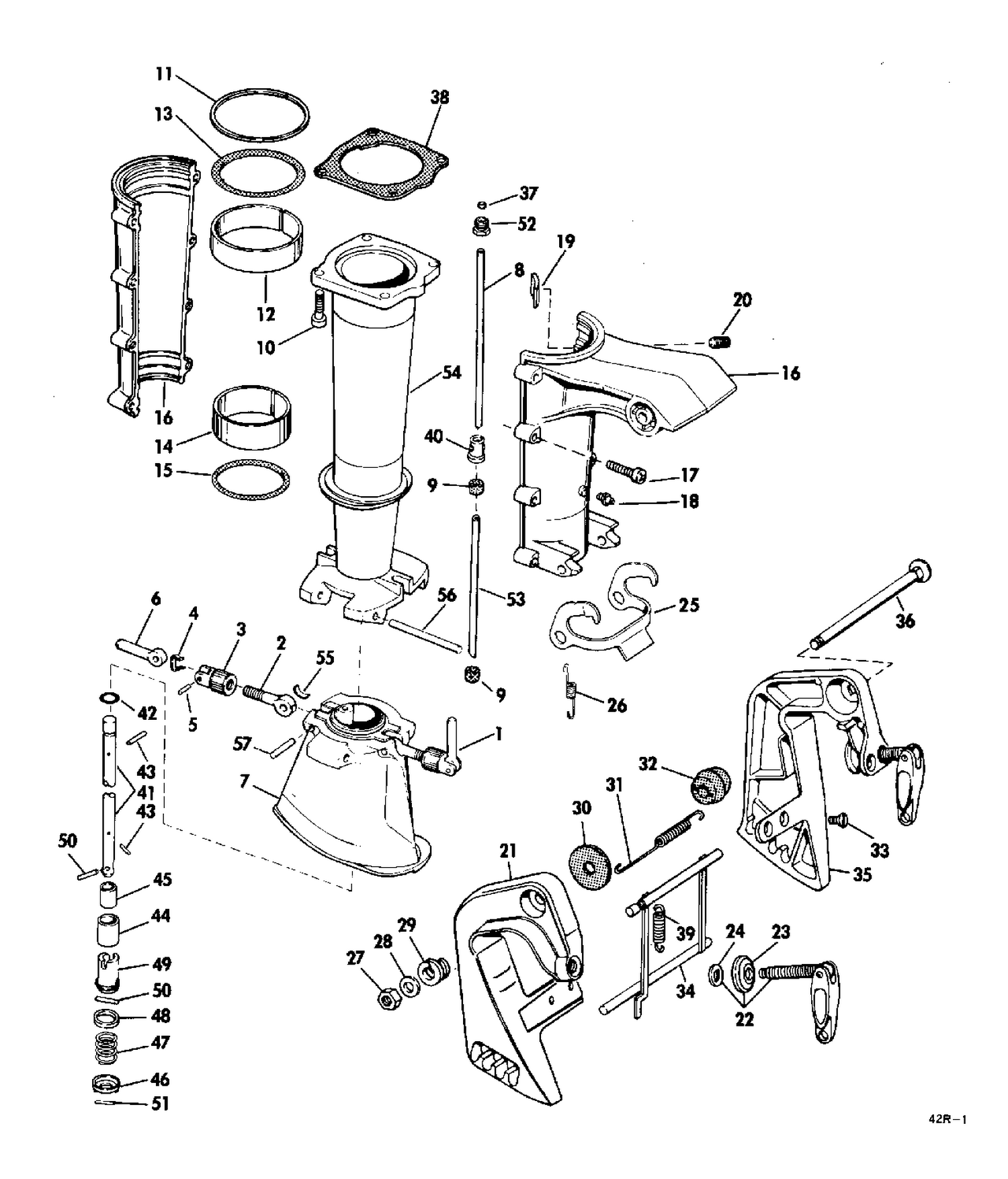

| Ref | Part Number | Description |
|---|
| 1 |
0278844 |
CLAMP SCREW ASSEMBLY |
| 2 |
0205688 |
CLAMP SCREW |
| 3 |
0205689 |
NUT |
| 4 |
0205692 |
SPRING |
| 5 |
0205691 |
PIN |
| 6 |
0205898 |
HANDLE |
| 7 |
0205681 |
HOUSING, Exhaust lower |
| 8 |
0205929 |
WATER TUBE,Standard |
| 9 |
0317372 |
GROMMET, Wate tube, lower This part replaces 0203131. |
| 10 |
0308707 |
SCREW |
| 11 |
0312186 |
WASHER,Thrust |
| 12 |
0310270 |
LINING,Housing,upper |
| 14 |
0310271 |
LINING,Housing,lower |
| 16 |
0380103 |
SWIVEL BRACKET ASSEMBLY |
| 19 |
0310265 |
BLOCK,Friction |
| 20 |
0310266 |
SCREW,Friction block |
| 21 |
0391955 |
STERN BRACKET ASSY This part replaces 0380872. |
| 22 |
0433675 |
CLAMP SCR. & HAND. ASSY. This part replaces 0375742. |
| 25 |
0311281 |
HOOK,Reverse lock |
| 26 |
0311442 |
SPRING |
| 28 |
0306433 |
WASHER |
| 29 |
0302051 |
SPRING Tilting bolt |
| 30 |
0304278 |
WASHER |
| 31 |
0311279 |
SPRING, Long |
| 32 |
0301983 |
CONICAK WASHER,Stern brkt |
| 33 |
0901889 |
SCREW This part replaces 0303396. |
| 34 |
0381816 |
LEVER,Titl adj. |
| 35 |
0380871 |
STERN BRACKET ASSEMBLY PORT(INCL.ITEM 22) |
| 36 |
0326134 |
BOLT, Tilting This part replaces 0304277. |
| 37 |
0306344 |
BALL SLEEVE |
| 38 |
0310257 |
GASKET 5 INCH LONGER PARTS |
| 39 |
0202021 |
SPRING, Link to shallow water drive |
| 40 |
0205572 |
GROMMET, Upper housing |
| 41 |
0205573 |
DRIVESHAFT, Upper |
| 46 |
0303327 |
WASHER |
| 47 |
0313496 |
SPRING, Washer to coupler |
| 48 |
0313497 |
RETAINING WASHER, Coupler |
| 49 |
0313498 |
COUPLER, Driveshaft |
| 50 |
0313499 |
PIN |
| 52 |
0132691 |
COMPRESSION NUT |
| 53 |
0205544 |
WATER TUBE, Lower |
| 54 |
0205881 |
HOUSING,Exhaust |
| 55 |
0205693 |
SPRING |
| 56 |
0205687 |
PIN, Hinge housing |
