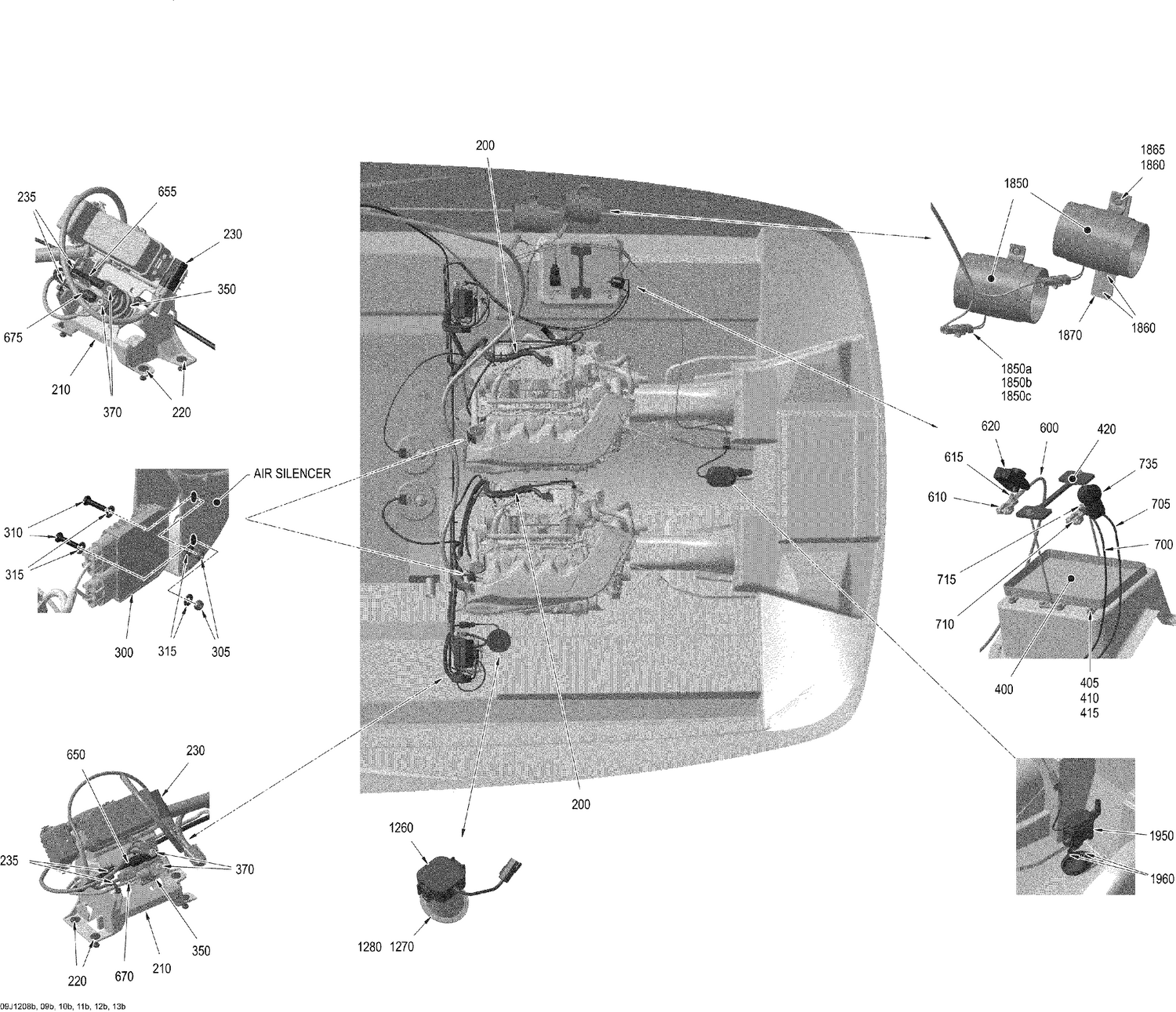

| Ref | Part Number | Description |
|---|
| 200 |
278002709 |
ENGINE HARNESS - Call your local BRP dealership |
| 210 |
278002699 |
MODULE SUPPORT - Call your local BRP dealership |
| 220 |
293150123 |
Pop Rivet 3/16" |
| 230 |
278002704 |
Diagnostic Connector This part replaces 278002148. |
| 235 |
414115200 |
Tie-Rap 180 mm |
| 300 |
710001103 |
Voltage Regulator |
| 305 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 310 |
207162560 |
Hex. Screw M6 X 25 |
| 315 |
204100069 |
FLAT WASHER - Call your local BRP dealership |
| 350 |
278003012 |
Starter Relay This part replaces 278002347. |
| 370 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 400 |
204471008 |
BATTERY SUPPORT - Call your local BRP dealership |
| 405 |
204100069 |
FLAT WASHER - Call your local BRP dealership |
| 410 |
205062560 |
Socket Head Screw M6 X 25 |
| 415 |
211200029 |
FLAT WASHER, PLASTIC - Call your local BRP dealership |
| 420 |
204471290 |
TOP BATTERY SUPPORT - Call your local BRP dealership |
| 600 |
204471193 |
POSITIF SWITCH CABLE - Call your local BRP dealership |
| 610 |
204470349 |
POSITIVE BATTERY POLE - Call your local BRP dealership |
| 615 |
211100063 |
HEX. NUT 3/8-16 - Call your local BRP dealership |
| 620 |
204470269 |
RED BOOT - Call your local BRP dealership |
| 650 |
Not |
Available As Spare Part - Positive Red Cable |
| 655 |
204471423 |
RED CABLE - Call your local BRP dealership |
| 670 |
204471429 |
RED CABLE - Call your local BRP dealership |
| 675 |
204471188 |
Red Cable |
| 700 |
204471191 |
GROUND CABLE - Call your local BRP dealership |
| 705 |
204471192 |
GROUND CABLE - Call your local BRP dealership |
| 710 |
204470348 |
NEGATIVE BATTERY POLE - Call your local BRP dealership |
| 715 |
204100052 |
HEX. NUT 5/16?-18 - Call your local BRP dealership |
| 735 |
278002575 |
BOOT-BLACK - Call your local BRP dealership |
| 1260 |
278002954 |
Depth Sensor This part replaces 278002336. |
| 1270 |
278001994 |
Depth Sensor Base |
| 1280 |
293550042 |
Gel Pad |
| 1850a |
278000220 |
Male Connector, 2 Circuits |
| 1850b |
278000223 |
Female Terminal |
| 1850c |
278000218 |
Wire Seal |
| 1860 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 1865 |
234052600 |
Flat Washer 5 mm, Stainless |
| 1870 |
204471389 |
BRACKET - Call your local BRP dealership |
