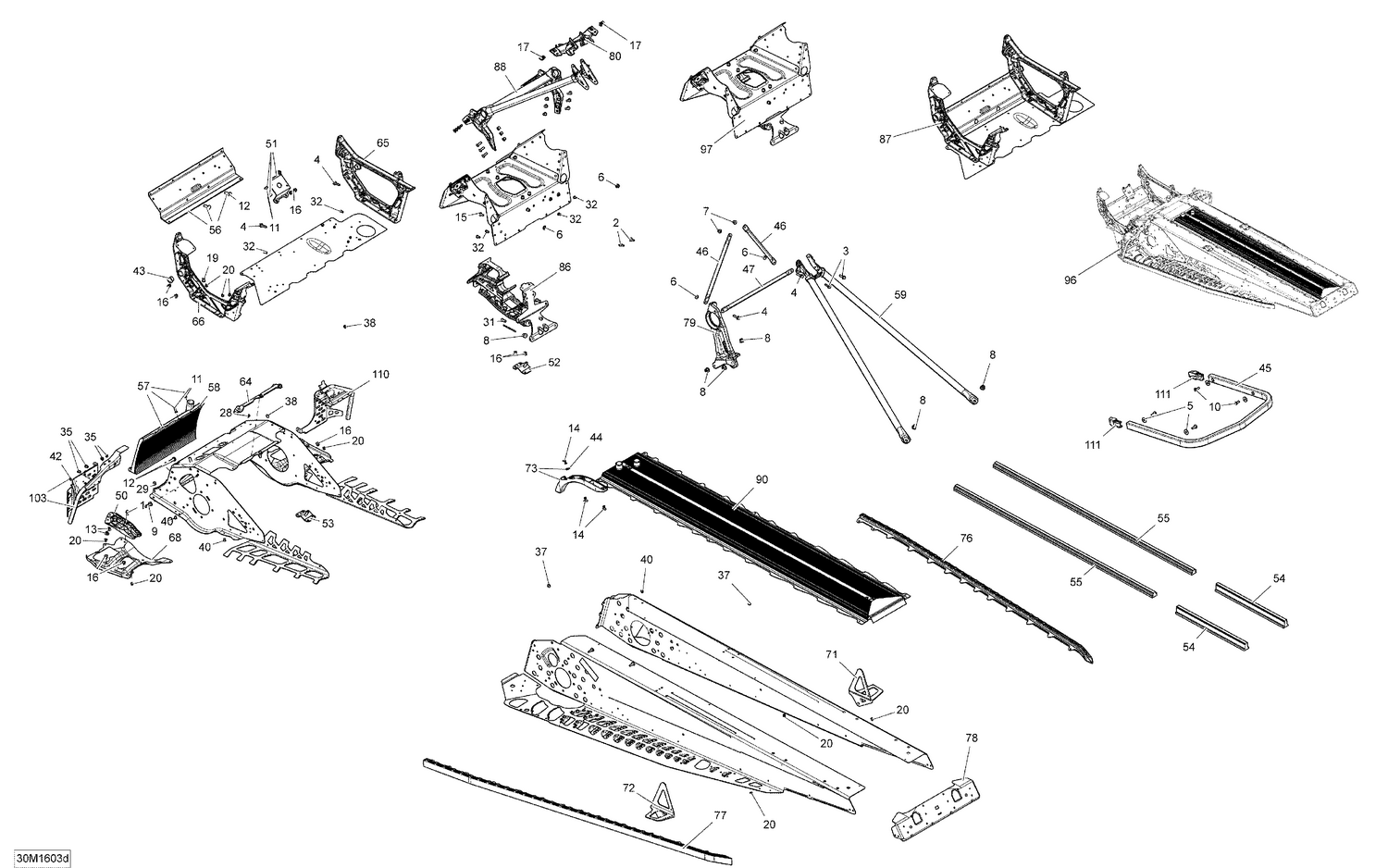

| Ref | Part Number | Description |
|---|
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 2 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 3 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 4 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 5 |
224061201 |
Flat Washer |
| 6 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 7 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 8 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 9 |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 10 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 11 |
250300027 |
Clinch Stud M6 X 20 |
| 12 |
250300038 |
Clinch Stud |
| 13 |
293150104 |
Pop Rivet 3/16" |
| 14 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 15 |
210261650 |
Hex. Flange Screw M6 X 16 |
| 16 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 17 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 19 |
293150120 |
Hemlock Rivet 6.5 mm |
| 20 |
293150144 |
Stavex Rivet |
| 28 |
293150146 |
Henrob Rivet |
| 29 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 31 |
293150182 |
Monobolt Rivet 6.4 |
| 32 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 35 |
293450268 |
Insert M5 X 0.8 |
| 37 |
293730047 |
Black, Dart 8 mm |
| 37 |
293730053 |
Black Dart 5 mm |
| 37 |
293730060 |
Black, Dart 10 mm |
| 38 |
293730042 |
Full Moon Dart 5 mm |
| 40 |
390909100 |
Avex Rivet |
| 42 |
390909200 |
Avex Rivet |
| 43 |
505073317 |
Leg Cushion |
| 44 |
517124300 |
Washer |
| 46 |
518325114 |
Upper Lateral Column Support |
| 47 |
518325115 |
Center Column Support |
| 49 |
518325782 |
RH Deflector, Black Polypropylene |
| 50 |
518325783 |
LH Deflector, Black Polypropylene |
| 51 |
518325943 |
MAG Engine Support |
| 52 |
518325973 |
RH Rear Base |
| 53 |
518325974 |
LH Rear Base |
| 54 |
860200802 |
TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. |
| 55 |
860200802 |
TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. |
| 56 |
518326198 |
Front Member |
| 57 |
518326485 |
Front Radiator |
| 58 |
518326485 |
Front Radiator This part replaces 518326486. |
| 59 |
518326559 |
Rear Member |
| 64 |
518326656 |
Seal |
| 65 |
518326795 |
RH Member |
| 66 |
518326796 |
LH Member |
| 67 |
518326937 |
RH Reinforcement, Running Board |
| 68 |
518326938 |
LH Reinforcement, Running Board |
| 71 |
518326954 |
Rh Suspension Bracket |
| 72 |
518326955 |
LH Suspension Bracket |
| 73 |
518326973 |
Front Tunnel Protector |
| 76 |
518327093 |
RH Roller |
| 77 |
518327094 |
LH Roller |
| 78 |
518327105 |
Rear Cap |
| 79 |
518327460 |
Driven Pulley Support |
| 80 |
518327145 |
Sub A Support |
| 83 |
518327565 |
Front Member |
| 86 |
518327487 |
Front Suspension Support |
| 87 |
518327567 |
E Module |
| 90 |
518327588 |
Rear Radiator 137'' |
| 96 |
415130125 |
BLACK FRAME RENEGADE XS - Call your local BRP dealership This part replaces 415129917. |
| 97 |
518328320 |
Cross Member S Module |
| 103 |
518328528 |
LH Stirup |
| 110 |
518328940 |
RH Stirup |
