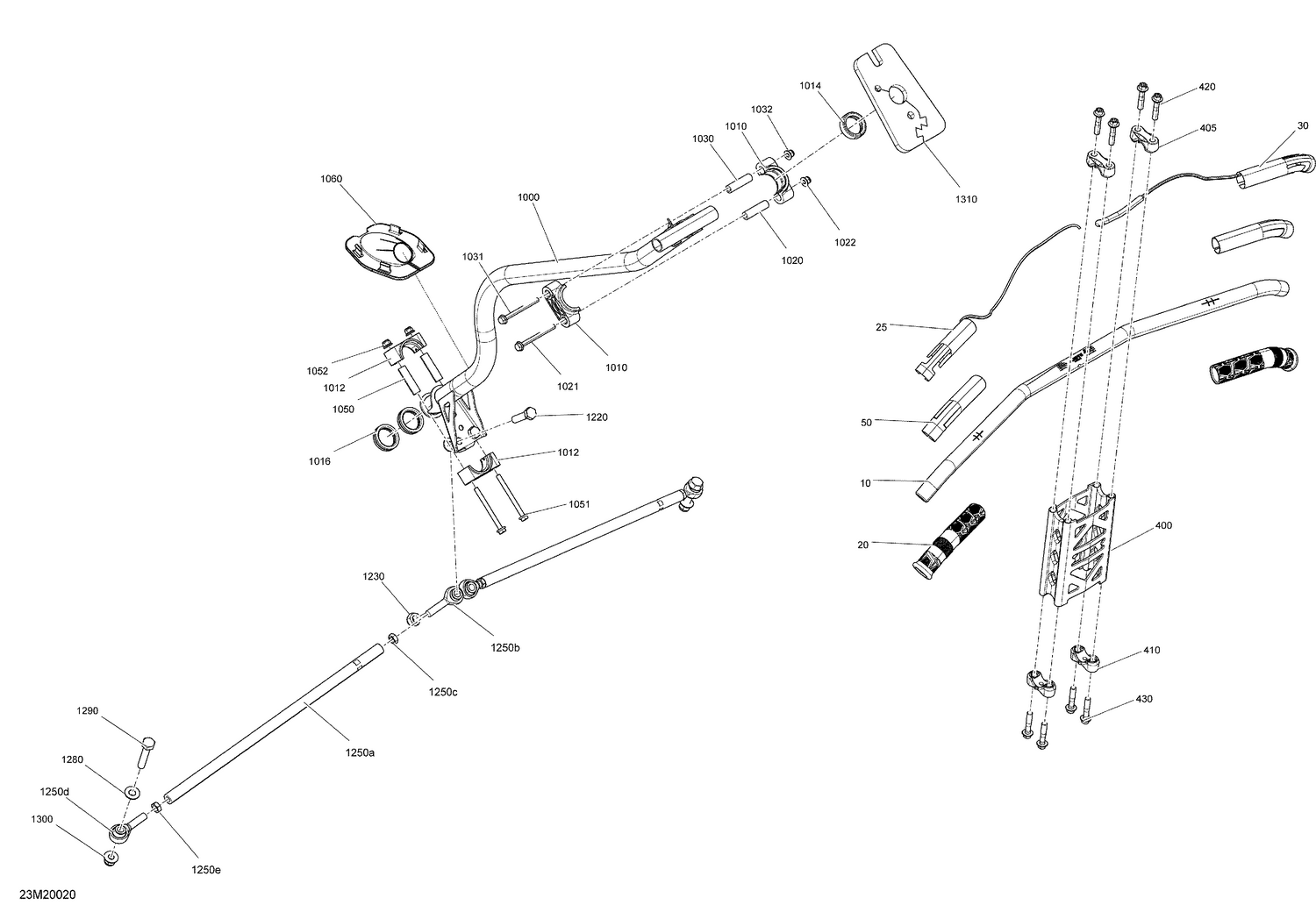

06- Steering - System
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506152709 | Handle Bar, Non Dyed Clear Anodizing |
| 20 | 506152560 | Grip 148mm |
| 25 | 506152798 | Heating Element 32 Watt 3 Wires |
| 30 | 506152799 | RH Heating Element 32 Watt |
| 50 | 506153176 | Thermal Insulation This part replaces 506152548. |
| 400 | 860200820 | Riser Kit |
| 405 | 506152894 | Steering Support |
| 410 | 506152894 | Steering Support |
| 420 | 250000852 | Hex. Flange Screw M8 X 1.25 x 40 |
| 430 | 250000852 | Hex. Flange Screw M8 X 1.25 x 40 |
| 1000 | 506152963 | Steering Column |
| 1010 | 506152508 | Upper Half-Housing |
| 1012 | 506152217 | Lower Half-Housing |
| 1014 | 506152509 | Upper Anti-Vibration Gasket |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506152297 | Housing Bushing |
| 1021 | 250001027 | Hex. Flange Screw M6 X 70 |
| 1022 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1030 | 506152297 | Housing Bushing |
| 1031 | 250001027 | Hex. Flange Screw M6 X 70 |
| 1032 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1050 | 506152297 | Housing Bushing |
| 1051 | 250001027 | Hex. Flange Screw M6 X 70 |
| 1052 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 1060 | 506152163 | Plate |
| 1220 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 1230 | 233601466 | Elastic Locking Nut M10 |
| 1250a | 506152498 | Tie-Rod |
| 1250b | 506152081 | LH Thread Ball Joint |
| 1250c | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 1250d | 506152019 | RH Threaded Ball Joint |
| 1250e | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 1280 | 506152582 | Washer |
| 1290 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 1300 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
