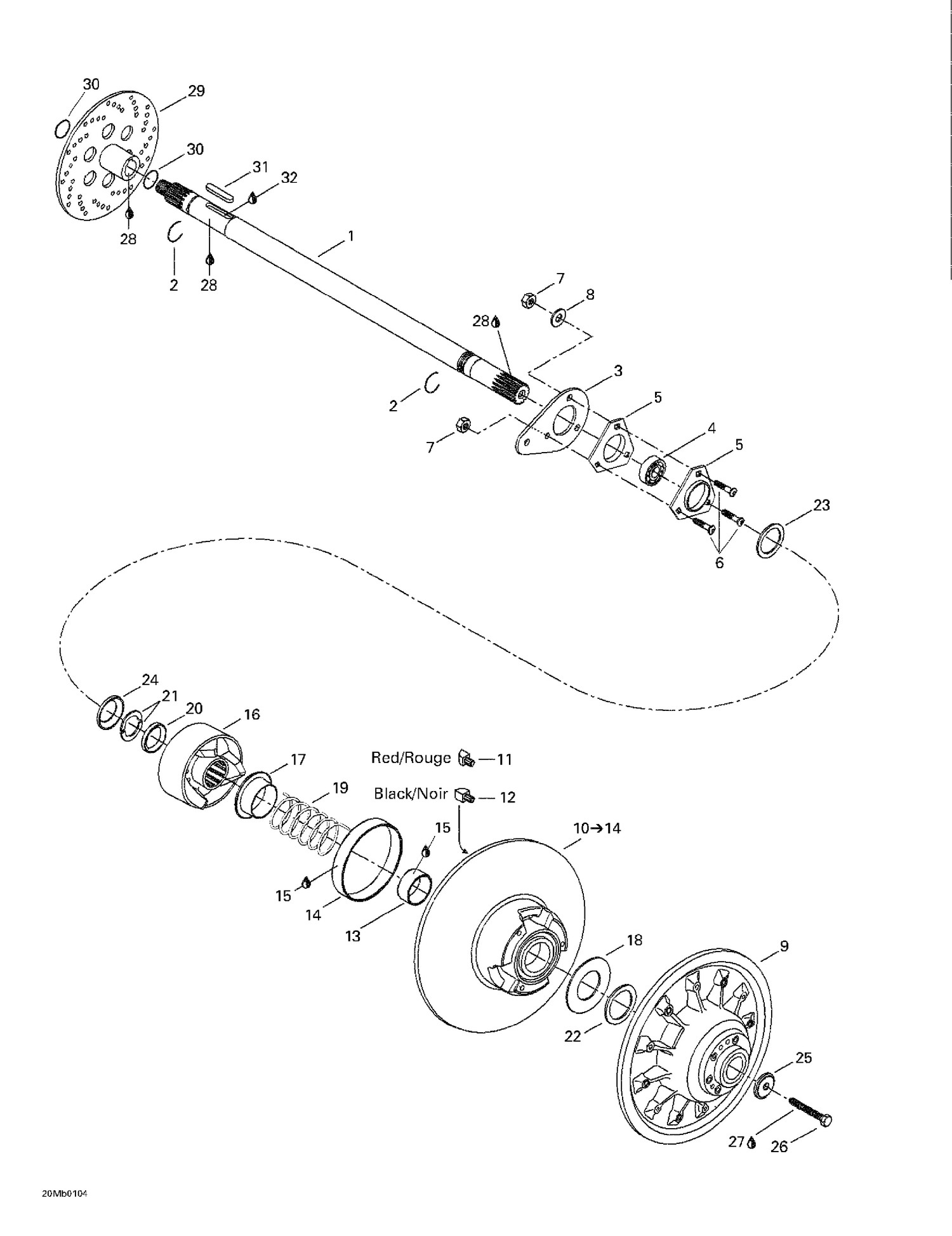

| Ref | Part Number | Description |
|---|
| 1 |
504151747 |
Countershaft |
| 2 |
371910000 |
Circlip |
| 3 |
501022300 |
Spacer |
| 4 |
504152008 |
BALL BEARING - Call your local BRP dealership |
| 5 |
501025000 |
FLANGE - Call your local BRP dealership |
| 6 |
205482546 |
SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership |
| 7 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 8 |
234081410 |
Flat Washer 8 mm |
| 9 |
417126401 |
FIXED FLANGE ASS'Y - Call your local BRP dealership |
| 11 |
417126373 |
REAR CAM SLIDER SHOE, RED - Call your local BRP dealership |
| 12 |
417126374 |
Front Cam Slider Shoe, Black |
| 13 |
417126901 |
BUSHING - Call your local BRP dealership This part replaces 415092600. |
| 14 |
415092700 |
Bushing |
| 15 |
413703100 |
Loctite 609, 10 ml |
| 16 |
417124700 |
Cam Ass'y |
| 17 |
415006000 |
GUARD - Call your local BRP dealership |
| 18 |
504099600 |
STOPPER WASHER - Call your local BRP dealership |
| 19 |
415092800 |
YELLOW SPRING - Call your local BRP dealership |
| 20 |
417126368 |
Spacer |
| 21 |
371911000 |
HALF KEY - Call your local BRP dealership |
| 22 |
504112300 |
SHIM - Call your local BRP dealership |
| 23 |
417300265 |
Spacer This part replaces 417300054. |
| 24 |
417300055 |
Protector |
| 25 |
517302322 |
Strength Washer |
| 26 |
207088044 |
Hex. Screw M8 X 80 |
| 27 |
293800060 |
Loctite 243, 10 ml |
| 28 |
293800023 |
LUBRICANT LOCTITE LB 8150 - Call your local BRP dealership |
| 29 |
507029000 |
WELDED DISK - Call your local BRP dealership |
| 30 |
414928900 |
O'RING - Call your local BRP dealership |
| 31 |
507021300 |
KEY - Call your local BRP dealership |
